Manufacturer's code:

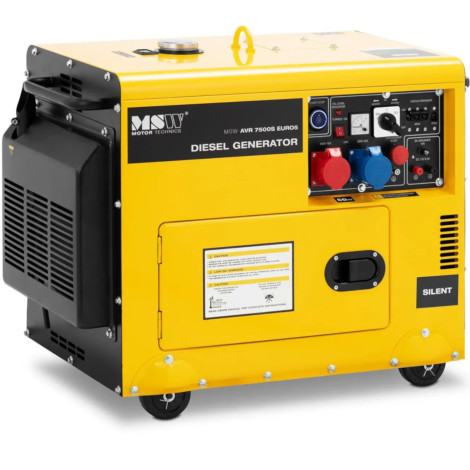

10062302Diesel brand generator generator MSW Provides the necessary electricity during a power break. Strong
4-stroke diesel engine Provides excellent generator performance with low consumption: over 7.5 h electricity on a filled tank
Diesel generator generators only consumes
16 l fuel for 7.5 hours. The device works with power
6370/7500 W. Thanks to three sockets (230/400 V and 12 V), you can support several different machines - even parallel. The maximum power of 230 V sockets is 6370 W, and the 400 V sockets are 7,500 W. Thanks to this, the equipment is ideally checked in emergency situations at home, in the office, camping, on a boat or in the industrial sector. The current generator turns on using an electric starter. All settings can be read from the display during operation - of course in real time. The device works with volume from
76 to 94 dB. The drive unit is safely made and clean finished. Effective air cooling protects the engine from overheating. Overload protection prevents engine damage if overheated. Thanks to the protection class
Ip23 The aggregate is also protected from water spraying at an angle to 60deg. The emergency aggregate was protected against solid bodies up to 12.5 mm in diameter. The generator is equipped with AVR voltage regulator, emergency stop, low oil pressure sensor and remote control.
Product features: - - Maximum power 6370/7500 W or 8.75 KVA,
- - up to 7.5 hours of working time on full tank 16 l,
- - you can simultaneously handle various machines using three outlets with 230/400 V AC and 12 V DC,
- - high quality of materials and solid performance,
- - Effective air cooling, overload protection and IP23 protection class.
Technical parameters: - - catalog number - 10062302
- - article - New
- - Model - MSW-AVR 7500S EURO5
- - Material - Aluminum, aluminum alloy
- - Ignition system - Samowzbudzenie
- - Diameter Cylinder X SUW [mm] - 95 x 75
- - engine model - 195f
- - Fuel consumption [g/kWh] - ≤280
- - Rated output current [A] - 8.3
- - Rated output voltage [V] - 12
- - voltage regulator - So
- - maximum power [W] - 6370/7500
- - fuel type - Diesel
- - Power factor - 1
- - start - Electric
- - 50 Hz rated power [kVA] - 8.75
- - engine oil type - SAE 10W30 (above the degree of CD)
- - continuous power - 8,75
- - Work temperature range [deg C] - -10 - 40
- - 12 V output - So
- - Handles for carrying - So
- - pilot - So
- - Emergency switch - So
- - Continuous work - So
- - Pulse width modulation - So
- - overload protection - So
- - engine speed [obr./min] - 3000
- - number of connectors - 3
- - jumping volume - 531 cm³
- - Rated output power - 99.6 W
- - acoustic power level - 76 dB
- - acoustic pressure level - 94 dB
- - noise level - 76 dB
- - fuel consumption - 2 L / H
- - oil tank capacity - 1.65 l
- - Fuel tank capacity - 16 l
- - working time with a full tank - 7.5 h
- - Dimensions (DXSXW) - 92 x 52 x 68.5 cm
- - weight - 158.2 kg
- - Dimensions of shipment (DXSXW) - 96 x 56.5 x 83.5 cm
- - shipping weight - 172.4 kg

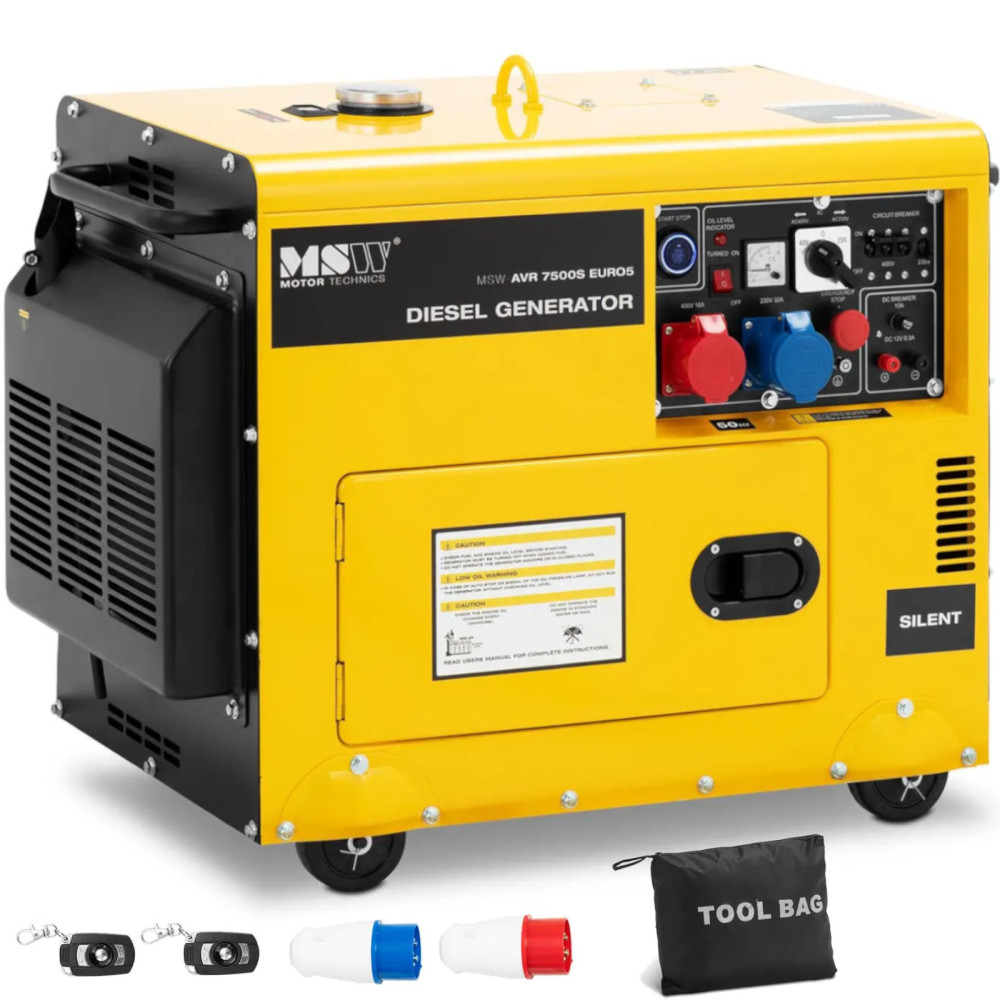

Included:
