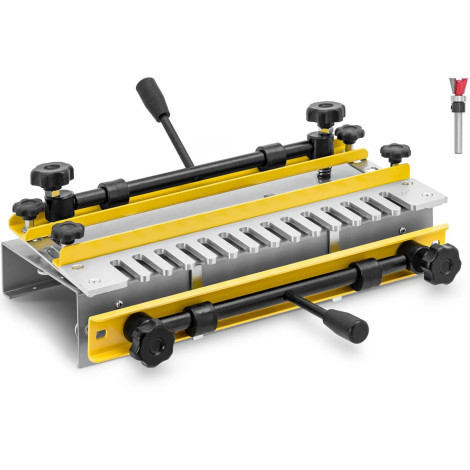

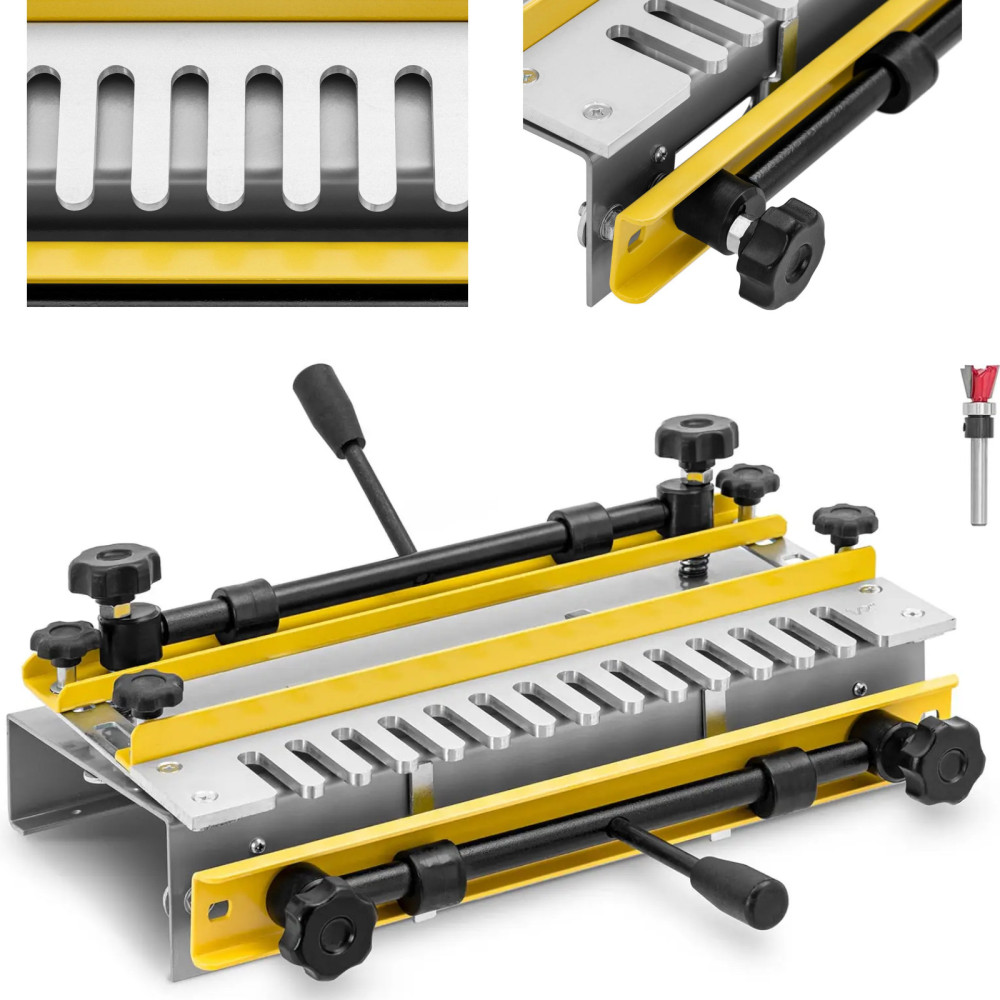

Milling Template for Call on Jump Tail 30 cm

Manufacturer's code: 10062518
Template for connections to Jump Tails Brand MSW It will allow you to create precisely formed and accurately aligned vascular tails. As a result, strictly adhering to each other, which are extremely clean, aesthetic and strong. WithAnd helping this template you can simultaneously mill the tails and matching teeth. Regardless of whether it comes to boxes, drawers, storage containers and dressers - the device will help you to facilitate carpentry work and create strong connections with a small effort. The Milling Milling Template impresses easy handling. The intuitive fastening system allows effortlessly to fasten the processed elements in a way-resistant way, so you can mill and precisely milled. Thanks to limited adjustment capabilities, the template is ready for use. Different switching variants can be obtained due to the cutter to the doves and tooth cutter. Thanks to the practical template in a short time, you can create a serial connection to a dovetail tail. This makes the device suitable for both the private sector to implement joinery projects and for professional carpenters who must work with repeatable accuracy. The device is suitable for small and medium milling machines (to a base diameter of approx. 150 mm). Cutter for vascular tail is made of durable, powder coated steel. The template is made of aluminum. The clamping levers and screws can be adjusted using handy plastic handles.
Product features:

• - ready for use and very repetitive,
• - allows simultaneous milling of swallowing tails and teeth,
• - a template for various open, semi-crowned, hidden and finger calls,
• - included 1 cutter for swallow tails and 1 tooth cutter,
• - Painted powder steel casing and aluminum templates.


Technical parameters:

• - catalog number - 10062518
• - article - New
• - Model - MSW-Jjs-e1p
• - dimensions - Drill for milling machine: 6.4 x 12.8 x 15 mm
• - Material - Aluminum, PP, powder coated steel
• - possible to use - Milling machine: guide sleeve, drill, spindle
• - total length [cm] - 30
• - thickness of the workpiece [mm] - 8-32
• - handle length - 14 cm
• - Thickness of the frame material - 3.5 mm
• - Dimensions (DXSXW) - 44 x 28 x 14 cm
• - weight - 7.9 kg
• - Dimensions of shipment (DXSXW) - 46 x 23 x 11 cm
• - shipping weight - 8.5 kg

Included:

• - Template for connections to Jump tail
• - Cutter for a swallow tail
• - Tooth cutter
• - Template
• - Mounting kit
• - Mounting accessories
