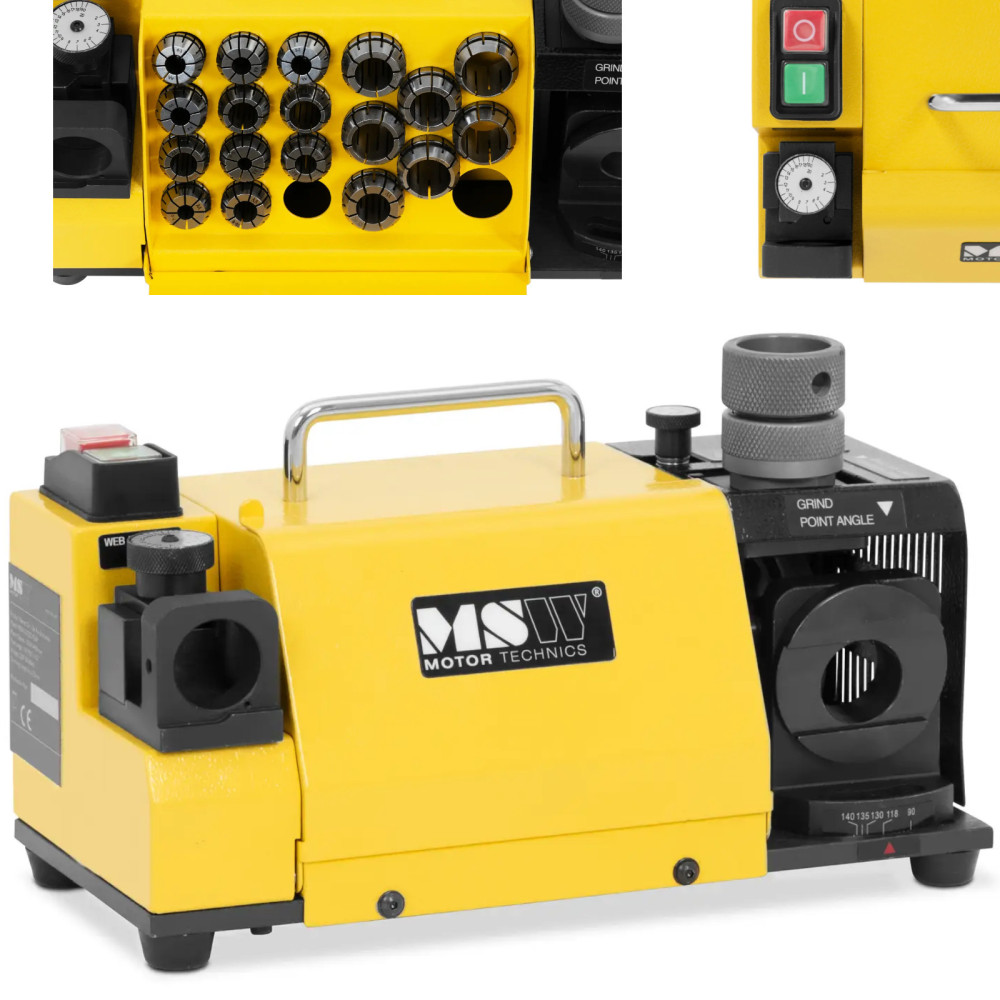

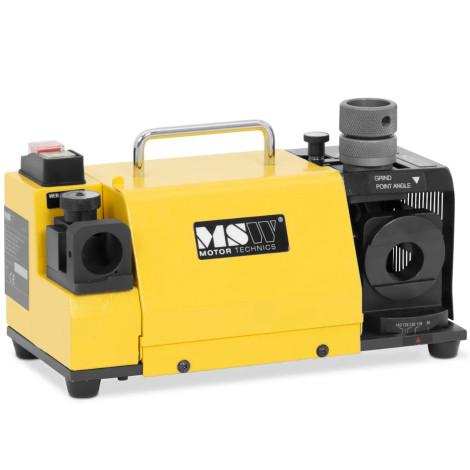

Grinder grinder for drill. 3-20 mm with a CBN electrical broth 150 W

Manufacturer's code: 10062712
Compact sharpener for the brand drill MSW It will restore the original focus to all popular metal drills made of tool steel (HSS). The device equipped with a shaft bearing and a locking system offers high precision, stability and ease of use. Eighteen removable handles will easily renew drills with a diameter of 3 to 20 mm. In addition, you can set the grinding point angle in the range from 95 to 140DEG. Thanks to the central adjustment of the rotational speed to the material, the sharpener will reach the best results. The 40 mm thick-attached thickness has a CBN coating, which is ideal for HSS steel. Alternatively, you can use SDC grinders with a diameter of 78 mm to restore the focus of tungsten steel drills (not included). Thanks to the efficient power of 150W and high speed 4800 rpm The grinder reliably renew old drills and will make buying new not necessary. The combination of cast iron and galvanized steel makes the drill sharpener extremely durable and durable. The model is easy to use and designed for everyday use. Thanks to the compact design and practical handle, the device can be transported to the place of use.
Product features:

• - Reliably sharpener for drilling drills with 150 W and 4800 rpm,
• - the angle on the drilling grinder is set in the range from 95 to 140DEG in accordance with its requirements,
• - sharpener drills with 18 handles firmly maintain drills about diameters 3, 4, 5, 6, 7, 8, 9, 10, 11, 13, 14, 15, 16, 17, 18, 19 and 20 mm,
• - thanks to high-quality grinding wheel with CBN coating, the grinder without difficulty, the steel HSS,

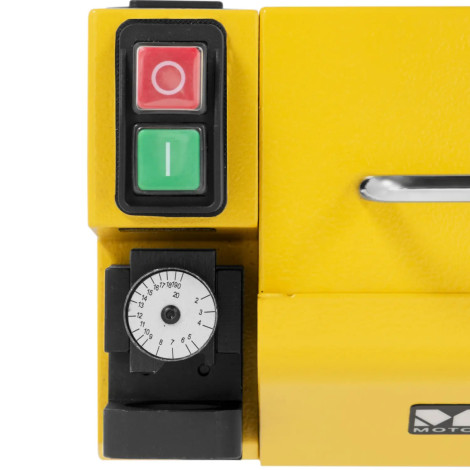

• - the central fire-adjusting adjustment allows you to adjust the speed depending on the material, providing the best results,
• - The compact design facilitates the transport of sharpened.

Technical parameters:

• - catalog number - 10062712
• - article - New
• - Model - MSW-Ggds-750r
• - frequency [Hz] - 50/60
• - Material - Cast iron, galvanized steel, diamond
• - Color - Black, yellow
• - Tension [V] - 220
• - IP protection degree - Ip2x
• - Nominal speed [obr./min] - 4800
• - power [W] - 150
• - Angle of sharpening the drill [deg ] - 95 - 140
• - destiny - Ø3 - 20 mm
• - Diameter of the shield hole (in the middle) [mm] - 12.6
• - Power cord - 143 m
• - Thickness of the grinding wheel - 15 mm
• - grinding diameter [mm] - 78
• - number of elements (drills, heads, shields, etc.) - 18
• - Dimensions (DXSXW) - 20 x 29 x 16 cm
• - weight - 8.9 kg
• - Dimensions of shipment (DXSXW) - 33 x 20 x 21 cm
• - shipping weight - 9.6 kg

Included:

• - Sharpener for drill
• - clamping handle
• - 18 handles (3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20 mm)
• - CBN grinding machine (for HSS)
• - 1.5 mm Allen key
• - 4 mm Allen key
• - Power cord
