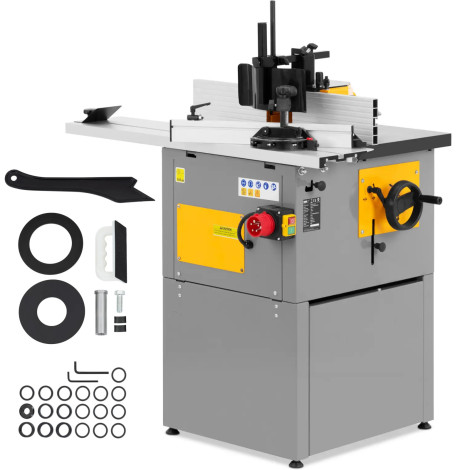

Carpentry milling machine 0-105 mm 400 V 1500 W

€1,086.22
Tax included
Last items in stock
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10062849
Brand Dowrycon Milling MSW Thanks to the power of 1500 W and 400 V power supply, it will meet the highest requirements in terms of performance, speed and precision. Four speeds (1400, 4000, 6000 and 9000 rpm) will ensure maximum flexibility for a wide range of materials and tasks. 30 x 105 mm head with a 160 mm hole and a 110 mm jump and a milling range in the range from 0 to 105 mm make the table miller to always guarantee precise results. Due to the adjustable stop and durable shield, the machine will protect your hands during operation. 650 mm sliding trolley will improve control over the workpiece and reduce the risk of reflection. Compact dimensions and thoughtful design will improve machine handling. It will easily fit in smaller workshops, and yet it will offer a fairly place to work. Main table 600 x 400 mm and movable table with aluminum with dimensions 1000 x 218 mm will help you during heavy details. A solidly designed drop miller with a durable cast iron and steel structure will provide a long service life and reliable performance, even with intensive use.
Product features:
  • - thanks to the 1500W and permanent structure, the combustion milling machine is ideal for processing even the hardest types of wood,
  • - table milling with four speeds (1400, 4000, 6000 and 9000 rpm) to a wide range of carpentry projects,
  • - milling machine with 30 x 105 mm head with a 160 mm hole and a 110 mm jump and a milling depth up to 105 mm, perfectly works when cutting large elements,
  • - the milling machine will ensure optimal protection thanks to the regulated limiter and a solid shield,
  • - Milling machine with 600 x 400 mm and movable 1000 x 218 mm, which can be moved to a distance of 650 mm will provide enough space for large projects.

Technical parameters:
  • - catalog number - 10062849
  • - article - New
  • - Model - MSW-Woob-4001400
  • - frequency [Hz] - 50
  • - Material - Cast iron, steel
  • - Color - Silver metallic
  • - Tension [V] - 400
  • - spindle [mm] - 30 x 105
  • - Nominal speed [obr./min] - 1400/4000 / 6000/9000
  • - power [W] - 1500
  • - Milling range [mm] - 0 - 105
  • - Sliding table dimensions [mm] - 1000 x 218
  • - table dimensions [mm] - 600 x 400
  • - main spindle jump [mm] - 110
  • - Diameter of milled holes [mm] - 160
  • - path length - 650 mm
  • - Dimensions (DXSXW) - 71 x 104.5 x 123 cm
  • - weight - 91.5 kg
  • - Dimensions of shipment (DXSXW) - 274 x 157 x 97 cm
  • - shipping weight - 107.6 kg

Included:
  • - DolnoContal milling machine
  • - Sliding table
  • - Mounting accessories
