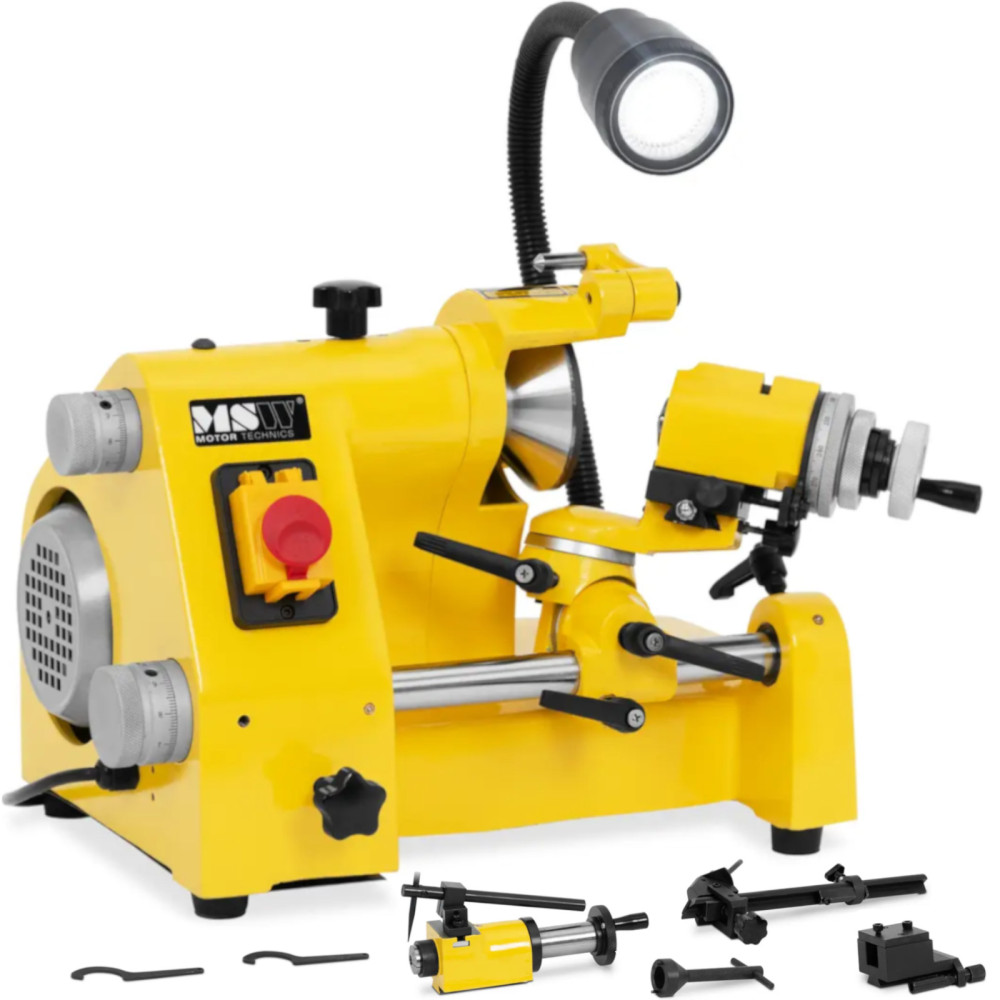

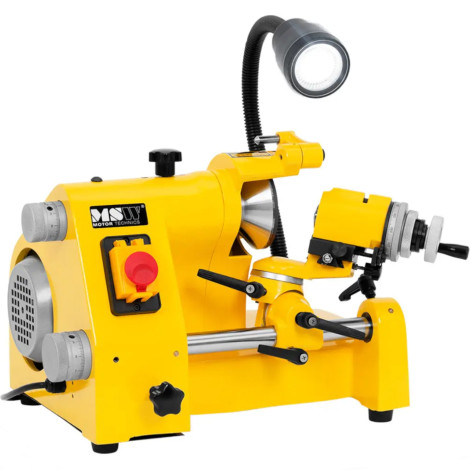

Industrial sharpener for drills for cutting knives 5300 rpm 240 W

€1,079.39
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10062714
Multifunctional mill MSW It will allow to sharpen drills, cutters or chisels when they are silent. With a few simple steps and precise settings, you can optimally sharpen the edges of the tools and improve their efficiency and cutting effectiveness. The sharpener will perfectly work in the carpentry, the metalworking plant or the production of jewelry. The sharpener head can be set in 24 basic positions to align the cutter or drill. In addition, there are many handles for various tools and five clamping jaws. Thanks to them, a sharpened object can be fastened with safe and precisely. They also allow objects of different shapes. The shield for sharpening has a diameter of 100 mm and is ideal for grinding tools made of HSS or sintered carbide. Depending on the drill, cutter, engraving needles or electrodes, the angles are horizontally within 0 - 180DEG, vertically 0 - 45Deg and negatively 0 - 25Deg. The machine is also suitable for sharpening drilling drills with a diameter of 3 to 8 mm. Service is extremely easy and the individual items change in a few simple steps. Thanks to many setting capabilities, you can sharpen various drills, cutters or chisels only one device. So you do not need other shields for tools. The integrated lamp with a rotatable arm will improve visibility during machining and facilitate precise operation. For safety, the multifunctional sharpener is equipped with an emergency switch.
Product features:
  • - Thanks to the multifunctional sharpener, you can sharpen and polish drills, cutters, turning knives and other HSS steel blades or carbide,
  • - the sharpener head can be mounted in 24 different positions and use various handles to set the equipment,
  • - the angles on the sharpener are set horizontally (0 - 180DEG), vertically (0 - 45Deg) or negatively (0 - 25DEG) depending on the tool,
  • - the emergency switch will protect against injury or damage in the event of a fault,
  • - Thanks to the rotating lamp, you can check every detail during machining.

Technical parameters:
  • - catalog number - 10062714
  • - article - New
  • - Model - MSW-Gguc-3hr
  • - frequency [Hz] - 50
  • - Material - Aluminum, cast iron
  • - Color - Black, yellow
  • - Tension [V] - 220
  • - IP protection degree - Ipx2
  • - Nominal speed [obr./min] - 5300
  • - power [W] - 240
  • - Angle adjustment [deg ] - 0 - 180/0 - 45/06 - 25
  • - Lighting type - 3 W / 12 V
  • - Diameter of the shield hole (in the middle) [mm] - 20
  • - Maximum mounting capacity - Ø18 mm
  • - grinding diameter [mm] - 100
  • - Emergency switch - So
  • - noise level - 60 dB
  • - Thickness of the grinding wheel - 50 mm
  • - Dimensions (DXSXW) - 34.5 x 47 x 32.5 cm
  • - weight - 47.15 kg
  • - Dimensions of shipment (DXSXW) - 54 x 44 x 42 cm
  • - shipping weight - 53 kg

Included:
  • - Multifunctional sharpener
  • - Milling handle
  • - Holder of the winding drill
  • - Device for sharpening of turning tools
  • - Hand wheel
  • - belt
  • - 2 flat keys C8
  • - 2 screwdrivers
  • - 2 wool fibers
  • - Diamond grinding wheel
  • - wheel tensioner
  • - 4 loops
  • - 5 clamping sleeves (4/6/8 / 10/12 mm)
  • - 6 Allen keys (2 / 2,5 / 3/4/5/6 mm)
