Gas burner for soldering pipes LPG gas set 3 nozzles 2 kW

Product code: 1010658

High quality product Czech leader in the production of the company's gas equipment and accessories MEVA Existing from 1898. Extremely Durable and effective gas burner for hard-boiled and soft. It will also work when heating different materials or removal of paints. The burner can be powered by G30 gas, propane-butane from the standard LPG cylinder. The gas supply hose is mounted using clamping bands. Solder burner with a power of 2 kW It is equipped with a convenient handle with a knob used to adjust the gas flow.

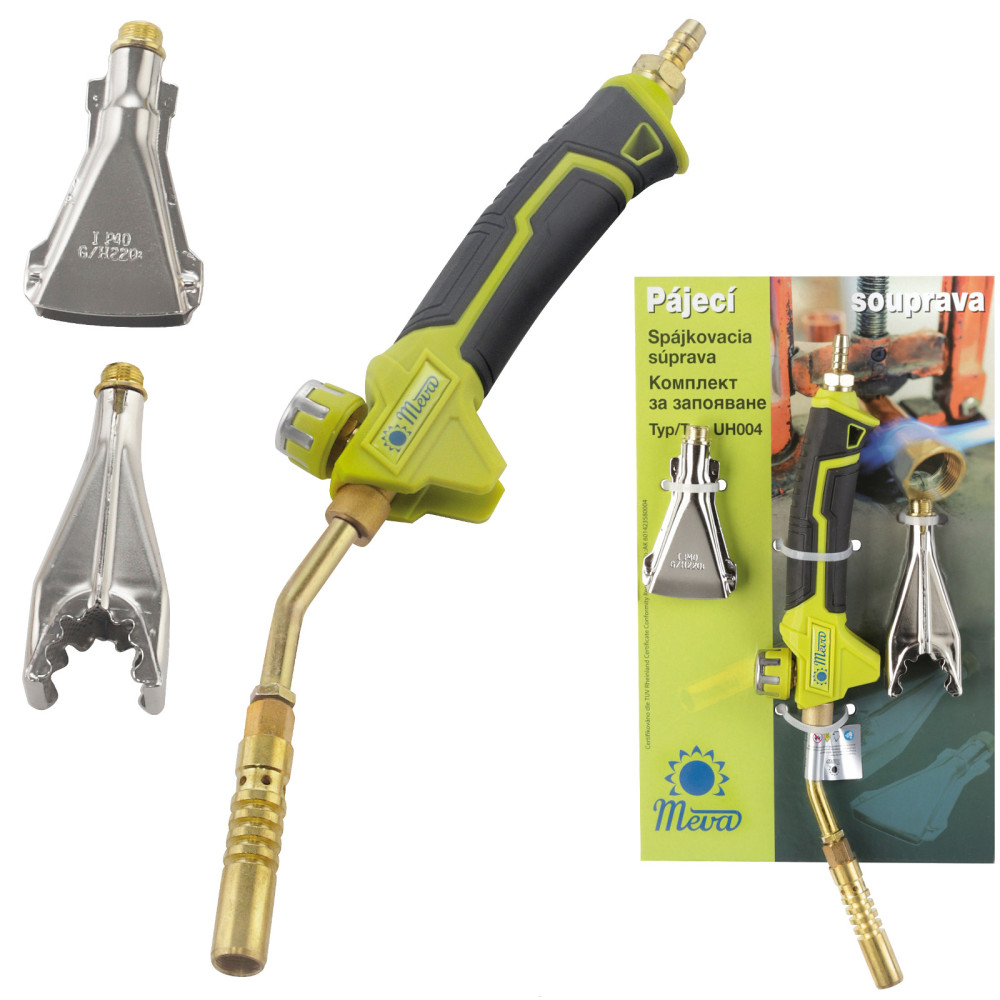

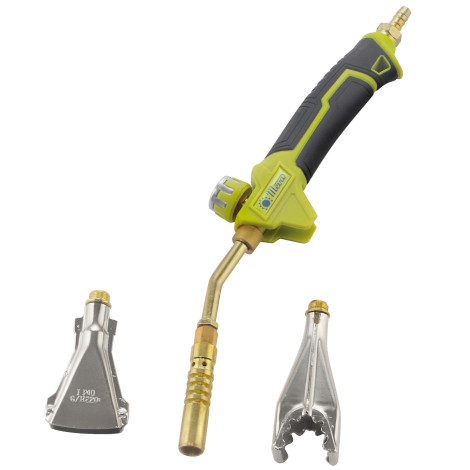

The set includes a handle with a regulating valve (with a connecting pin) and 3 tips that increase the versatility of the device:

• - Solder burner Wed. 17 mm
• - tanning burner
• - A burner surrounding for pipes and hydraulics

Features and functions of the construction of a gas burner:

• - high power effectively warms or suppress the material,
• - a smoothly adjustable flame,
• - Easy and economical to use
• - a contoured handle and a small weight increase the comfort of work,
• - Removable tips.

Technical parameters:

• - Fuel source: 2 or 10 kg LPG cylinder
• - Fuel: G30 (propane, butane or mixtures thereof)
• - Recommended working pressure of burners: 1 ÷ 4 bar
• - power (at pressure) 2 ÷ 3 bar): 2 kW
• - consumption (at pressure) 2 ÷ 3 bar): 140 g / h
• - nozzle diameter: Wed. 0.25 mm (Designation No. 25)
• - Minimum room volume: 20 m3
• - Connection to gas cylinders - two options:
  - Using a hose and clamping bands: the end of the hose connection length 28mm / Wed. 8mm
  - using G 3/8 "L connector

Included:

• - Gas burner for soft and hard swing,
• - nozzle (# 8960 17 mm),
• - Additional tips: flat and surrounding.
