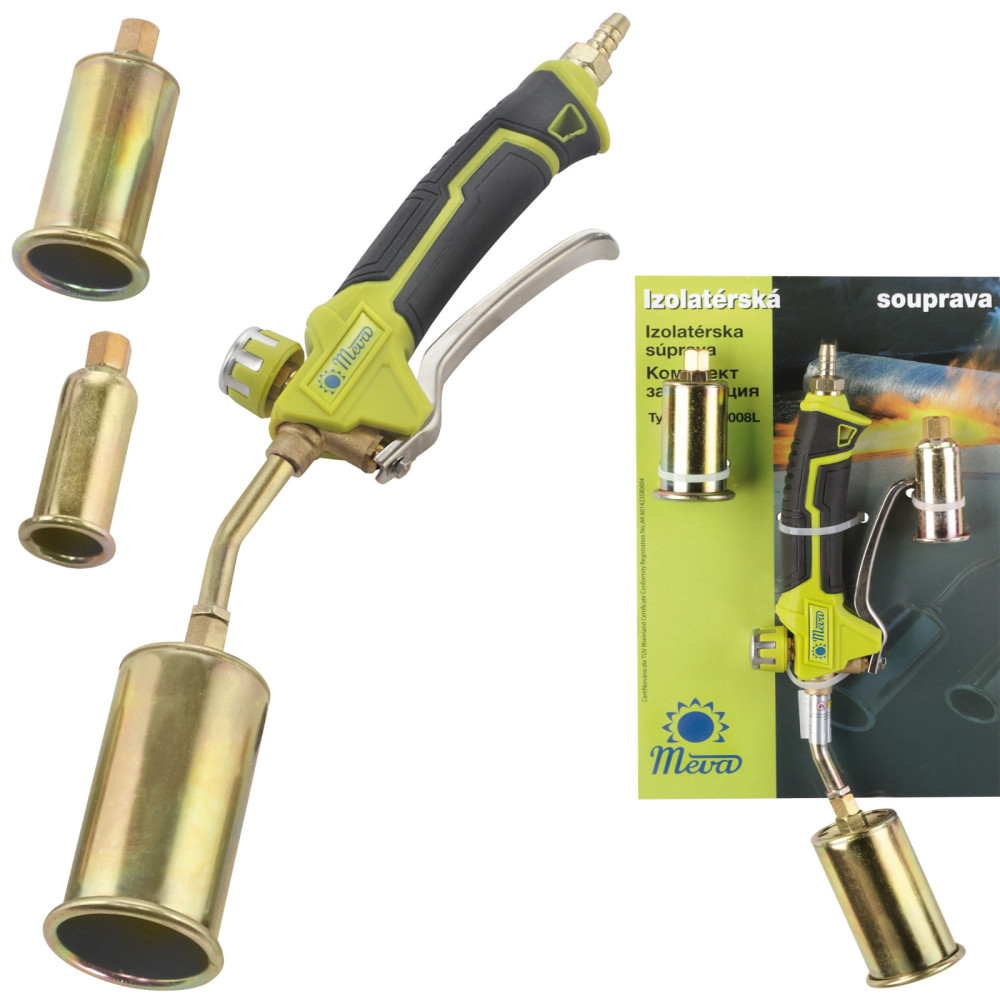

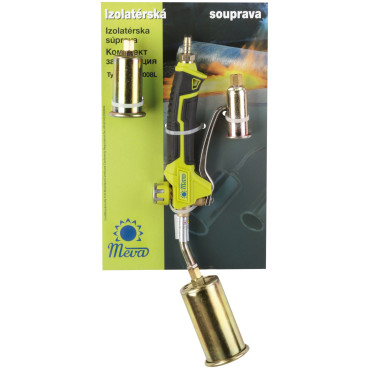

Gas burner Roofing for isolation gas LPG set 3 nozzles 3.7 - 28 kW

Product code: 1010660

High quality product Czech leader in the production of the company's gas equipment and accessories MEVA Existing from 1898. Extremely A durable and effective gas burner for roofing works. It will also work when heating different materials or removal of paints. The burner can be powered by G30 gas, propane-butane from the standard LPG cylinder. The gas supply hose is mounted using clamping bands. Solder burner with a power reaching 28 kW It is equipped with a convenient handle with a knob used to adjust the gas flow.
Features and functions of the construction of a gas burner:

• - high power effectively warms or suppress the material,
• - a smoothly adjustable flame,
• - Easy and economical in use,
• - The contoured handle and a small weight increase the comfort of work.

Technical parameters:

• - Fuel source: 2 or 10 kg LPG cylinder
• - Fuel: G30 (propane, butane or mixtures thereof)
• - Recommended working pressure of burners: 1 ÷ 4 bar
• - Connection to gas cylinders - two options:
  - Using a hose and clamping bands: the end of the hose connection length 28mm / Wed. 8mm
  - using G 3/8 "L connector

Wednce. 25 mm

• - power (at 2 ÷ 3 bar pressure): 3.7 kW
• -Sure (at pressure) 2 ÷ 3 bar): 265 g / h
• - nozzle diameter (designation): Wed. 0.35 mm (No. 35)

Wednce. 35 mm

• - power (at 2 ÷ 3 bar pressure): 6.3 kW
• -Sure (at pressure) 2 ÷ 3 bar): 450 g / h
• - nozzle diameter (designation): Wed. 0.50 mm (No. 50)

Wednce. 50mm

• - power (at 2 ÷ 3 bar pressure): 28 kW
• - in pressure (at pressure) 2 ÷ 3 bar): 2000 g / h
• - nozzle diameter (designation): Wed. 1.2 mm (No. 120)

Included:

• - gas burner for isolation,
• - 3 nozzles (# 8960 25/35 / 50 mm).
