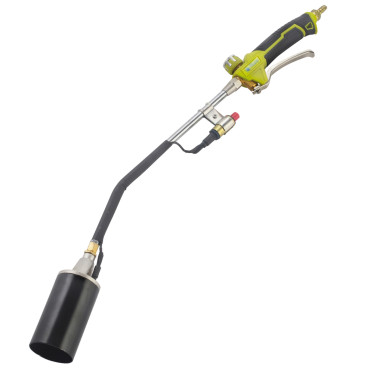

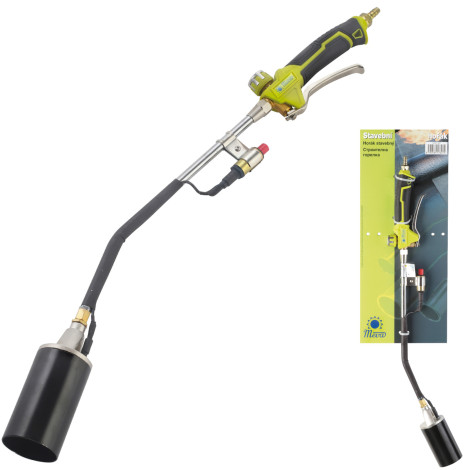

Gas burner Construction roofing for isolation papy gas lpg 35 kW + piezo igniter

Product code: 1010663

High quality product Czech leader in the production of the company's gas equipment and accessories MEVA Existing from 1898. Extremely Durable and effective construction gas burner, which will find application during roofing works, in stonework or during sunbathing or welding. The gas burner can be powered by G30 gas, propane-butane from the standard LPG cylinder. The gas supply hose is mounted using clamping bands. Spearman 35 kW It has been equipped with a convenient handle with a knob used to adjust the gas flow (after unscrewing the gas flies without having to hold the trigger) and the levers by which we open all the flow.
 Features and functions of the construction of a gas burner:

• - high power effectively warms or suppress the material,
• - a smoothly adjustable flame,
• - Easy and economical to use
• - a contoured handle, a small weight and long lance increase the comfort of work.

Technical parameters:

• - Fuel source: 10 or 33 kg LPG cylinder
• - Fuel: G30 (propane, butane or mixtures thereof)
• - Recommended working pressure of the burner: 1 ÷ 4 bar
• - Outer diameter of the burner: 60 mm
• - power consumption (at pressure) 2 ÷ 3 bar): 35 kW
• - consumption (at pressure) 2 ÷ 3 bar): 2500 g / h
• - nozzle diameter (designation): Wed. 1.4 mm (No. 140)
• - Piezo igniter: Yes
• - Connection to gas cylinders - two options:
  - Using a hose and clamping bands: the end of the hose connection length 28mm / Wed. 8mm
  - using G 3/8 "L connector

Included:

• - gas burner for insulation, papa, 35 kW tar with piezium igniter
