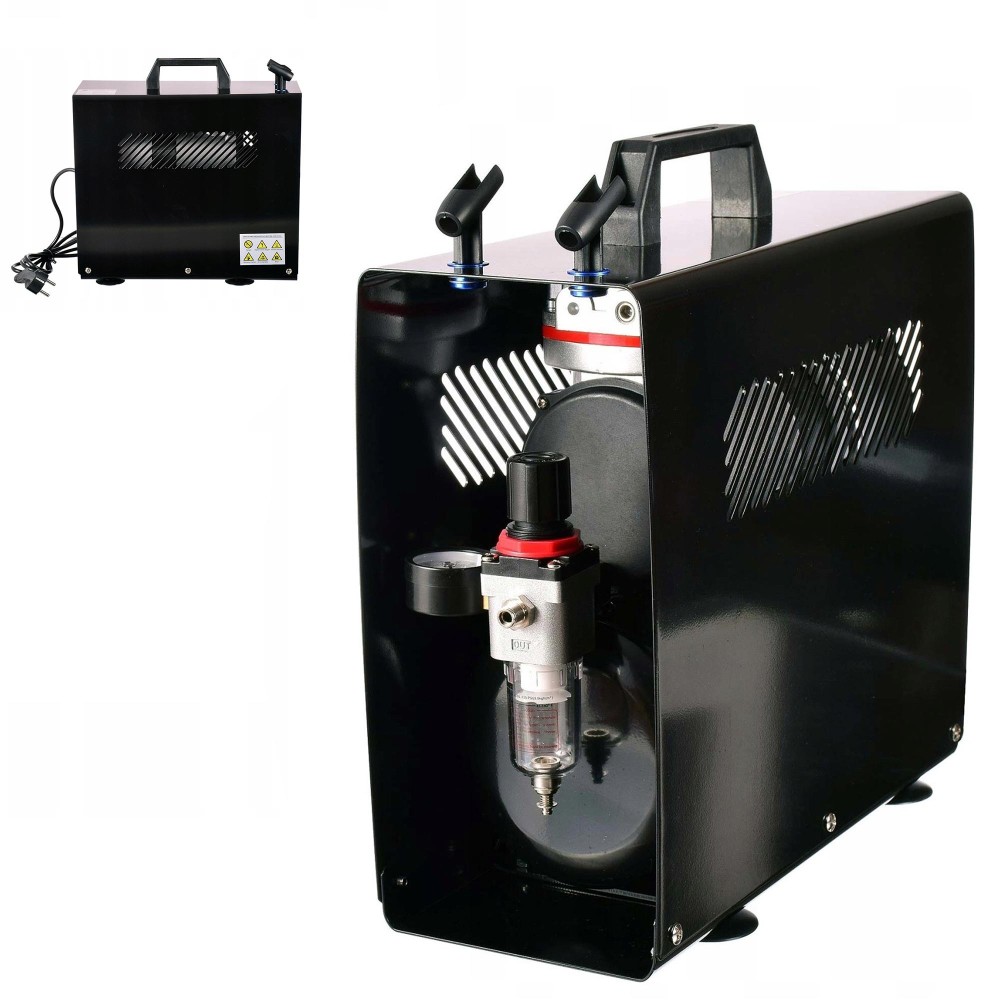

Aerograph compressor AS-196A 3L 6Bar cylinder Housing

Double-piston compressor for aerograph with AS-196A bottle in the housing

High pressure datutrug compressor (up to 6 bar) and yield (40 l / min). Thanks to the metal housing, the compressor is very durable and resistant to mechanical damage.

Advantages:

• Double cylinder
• Quiet work
• Overheating
• Equipped with a pressure fuse
• Double switch
• Pressure regulator
• Solid pressure without pulsation

Equipped with a reducer with a readable manometer, which has a clear scale presented in two units. Compressor powered by 230V JetEST-resistant 220-240v.

Has Compensatory cylinder and two pistons. The compressor is characterized by a silent operation, it is dampened. Unlike other compressors, a very long period of time can work without interruption.

Find wide application in Modeling, varnishing, vulcanization, computer and electronic services And wherever compressed air is needed.

Auto Start / Stop - In position number 1, a very useful feature will be launched by which we not only save electricity and extend the life of the compressor, but above all increases the comfort of work. The compressor turns on when the pressure drops to 3 bar However, turns off when to 4 bar will increase. In the number two compressor, the pressure is reached up to a 6 bar.

Technical data:

• Supply voltage: 230;
• Auto Start: 3Bar (switch I)
• Auto Stop: 4Bar (switch I)
• Max pressure: 6 bar (Switch II)
• Air flow: 35-40l / min!
• Expansion tank: 3,5l
• Weight: ~10, 0kg
