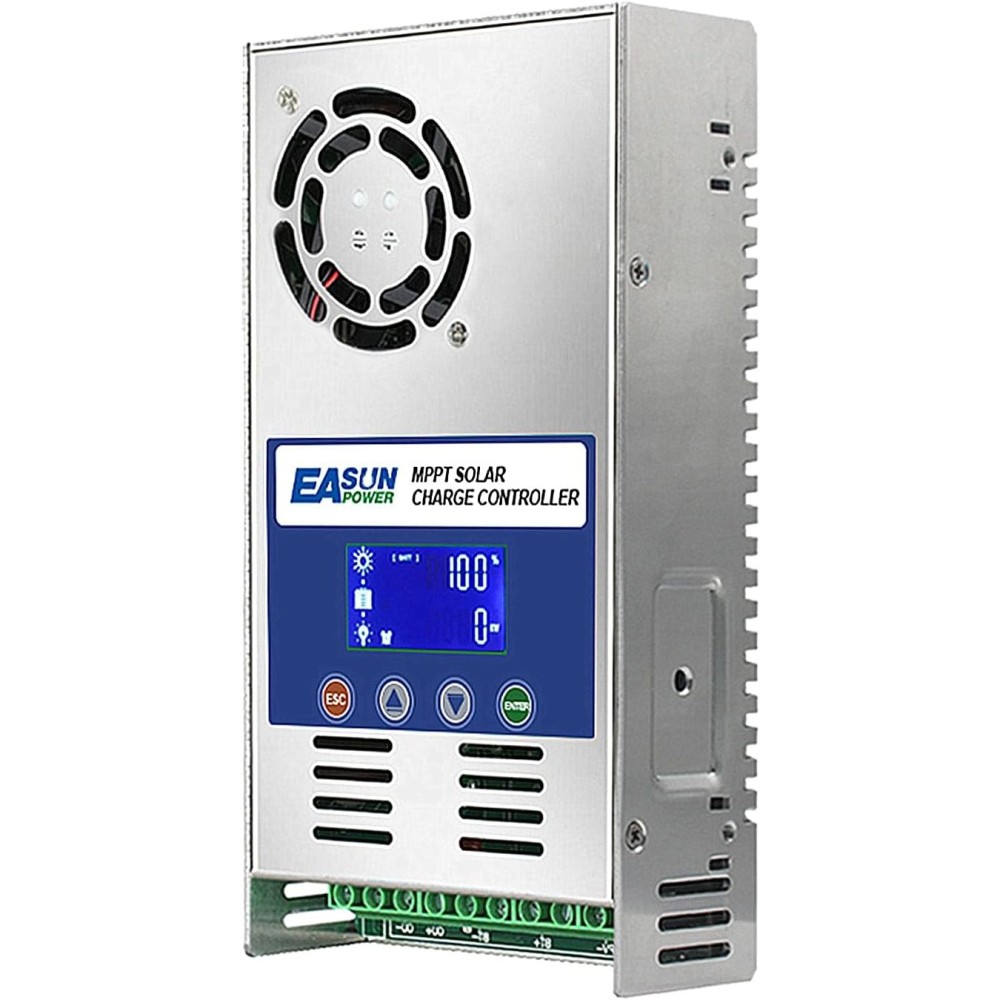

Solar controller WiLAN 60 A MPPT for batteries, 12-48 V, 180 V DC PV

Higher charging limit: MPPT charging controller, maximum solar sterile voltage (VOC) 180 V and maximum solar charging 60 A. Maximum efficiency ≥ 98.1%, PV use ≥ 99%

For most batteries: automatic battery voltage detection for 48 V / 36 V / 24 V / 12 V, you can set users (you can settle Litu / LifePo4 / Li (Nicomno2) / Vented / Flooded / Sealed / GEL or NiDD; 3-degree loading optimizes battery capacity

Good heat dissipation: Controller with a smart cooling blower with a alloying aluminum with heat to minimize losses during loading

Multifunctional LCD display: The charging controller with the programmable LCD display can display various operational data and system status, quickly detects system errors and change parameters

Features of the MPPT 60A solar charger:

Maximum solar charging current 60 A MPPT (MPPT technology) 3-step loading optimizes battery capacity, overcharging protection, overheating protection. Suitable for battery types, such as sealed lead-acid batteries, ventilated gel and lithium battery, etc. Automatic battery voltage detection for 12V / 24V / 36V / 48V Multifunctional display LCD with backlight to easily monitor and set parameters. Always first close the battery and then the solar module. When disconnecting, first disconnect the solar module and then the battery. This solar controller has a output current of 5 A and can only be connected to a DC load with a maximum power not more than 100 W.

Maximum PV input power

Make sure that the solar input voltage exceeds 3 V or more than the battery voltage

12 V battery system: maximum PV 720 W input, the recommended solar input voltage range is 20-80 VDC24 V. Battery system: Maximum PV 1440 W input, the recommended PV input voltage range is 37-105 VDC36 V. Battery system: Maximum PV 2100 W input, the recommended PV input voltage range is 50-150 VDC48 V. Battery system: Maximum PV 2800 W, Recommended range PV input voltage is 72-150 VDC

LCD display

ESC: Set without saving data. UP: Scroll down, adjust the parameters by increasing the DOWN value: Scroll to top, adjust the parameters by reducing the value of ENTER: short press to go to the next setting page, press and hold to leave the setting and save the data

Installation stages

1) Install the switch between the controller and batteries

2) Install the switch between the controller and PV modules

3) Check if "+" and "-" batteries are properly connected

4) First, open the battery switch and then the PV switch

On the code

EQU: BST charging alignment: Loading voltage FLD: Supporting LDV charging voltage: LRV overload voltage: Regeneration voltage with excessive discharge BST-R: Regenerative voltage. Battery type: FLD / SEL / GEL / LI / USE

(You do not need to set standard acid-lead batteries parameters, just set lithium batteries, select "Li" or "Use" to set the parameters)

Technical data of the solar regulator 60 MP MPPT

Model: Icharger-MPPT-6048TRIB charging: constant current (MPPT); Solid tension; floating

System voltage: 12/24/36/48 Vmaks. PV input voltage: 150 vocmaks. PV input power:

• 720 W / 12 V
• 1440 w / 24v
• 2160 W / 36 V
• 2880 W / 48 V

Automatic voltage detection:

• 12 V (DC 8.7 V - DC 15.5 V)
• 24V (DC 16 V - DC 31 V)
• 36 V (DC 33 V - DC 41 V)
• 48 V (DC 42 V - DC 64 V)

Limited power protection: 61 Azotext from overcharging:

• 12 V (16 V) system
• 24v (32 V) system
• System 36 V (48 V)
• System 48 V (64 V)

Maximum efficiency: ≥ 98.1%Wykorzystanie PV: ≥ 99%

Fan switching temperature:> 45 ℃ Fan shutdown temperature: <40 ℃ Reload protection: according to EN61000, EN55022, EN55024

Size: 214 x 115 x 50 mmwaga net: 1.1 kg
