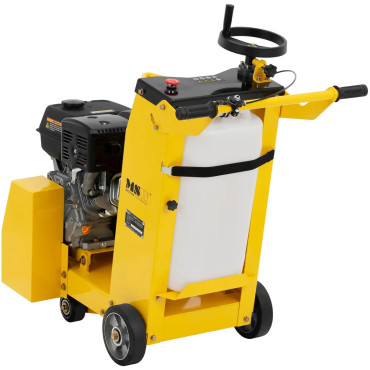

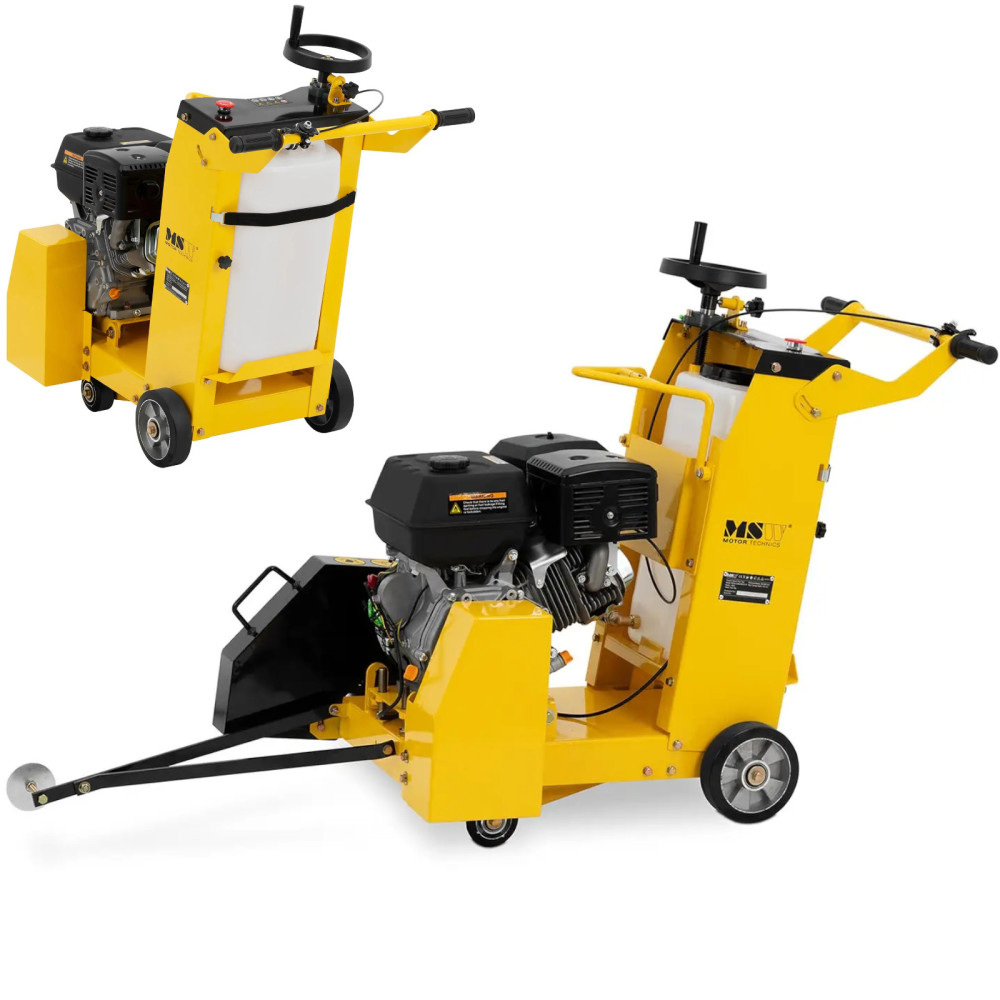

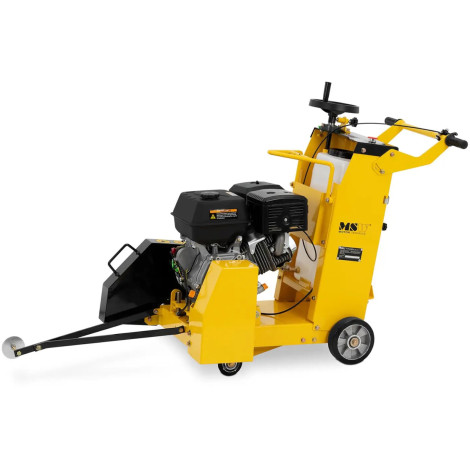

The cutter saw for combustion concrete with a shade Wed. 500 mm 13 km

Manufacturer's code: 10062752

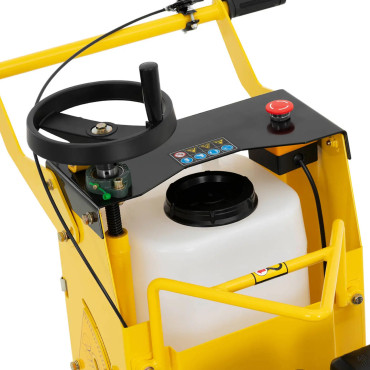

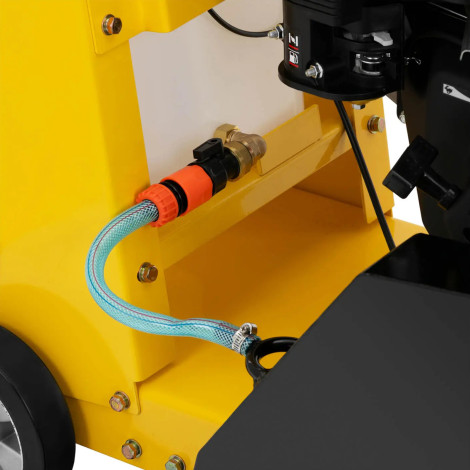

Cutter MSW for 13 km Precisely silently concrete and asphalt. It has been equipped with a high-quality shield and a special water cooling system, the saw guarantees effective work. A strong steel design has reduced vibrations and is equipped with a handy handle, which can be adjusted to the type of task if necessary. The compact machine is conveniently carried out on wheels. The guide located in front of the draft is allowed to maintain simple lines. Cutting shield Diameter of 500 mm He will guide without vibration all the time, even on large surfaces. The cutting depth can be smoothly set up to 165 mm Using a hand crank. The cutter has been equipped with 30-liter tank on wet cutting water. Water cools the blade during long works, but also effectively limits the formation of dust when only the cutter shield touches the substrate. The gasoline tank has a capacity 6.5 land the oil tank 1.1 l. Thanks to this, you can cut consistently and without interruption.

Product features:

• - the efficient motor drives the shield of the concrete cutter with a diameter of up to 500 mm with 13 km power,

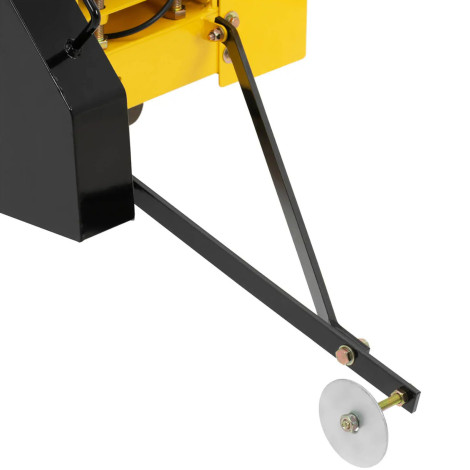

• - the low-lifing guide rail extends the lifetime of the blade and the machine, and also allows you to use the concrete saw with minimal effort,

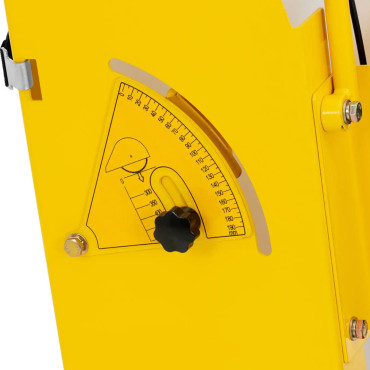

• - the cutting depth is smoothly set to 165 mm using a hand crank on the driving pile,
• - easy to maneuver thanks to a balanced steel structure with wheels,
• - A large, 30-liter water tank and a 6.5 L fuel tank allow you to work with a saw for asphalt and concrete for a long time.

Technical parameters:

• - catalog number - 10062752
• - article - New
• - Model - MSW-Concrete-v7
• - Material - Plastic, steel
• - Color - Black, yellow
• - engine power [KM] - 13
• - engine type - LONCIN G339F
• - Depth of cutting [mm] - 165
• - blades diameter [mm] - 350 - 500
• - Blade hole diameter [mm] - 25,4
• - weight - 106 kg
• - Maximum net power - 8.2 kW
• - Diameter of wheels - 175 mm
• - oil tank capacity - 1.1 L
• - Fuel tank capacity - 6.5 l
• - water container capacity - 30 l

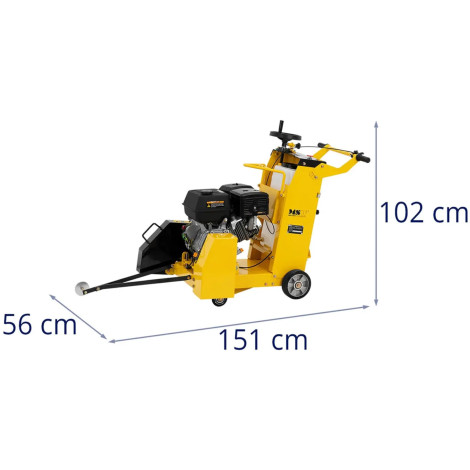

• - Dimensions (DXSXW) - 151 x 56 x 102 cm
• - weight - 105.7 kg
• - Dimensions of shipment (DXSXW) - 92 x 58 x 99 cm
• - shipping weight - 120.5 kg

Included:

• - Concrete cutter
• - cutting disc (500 mm)
• - Mounting accessories
