Manufacturer's code:

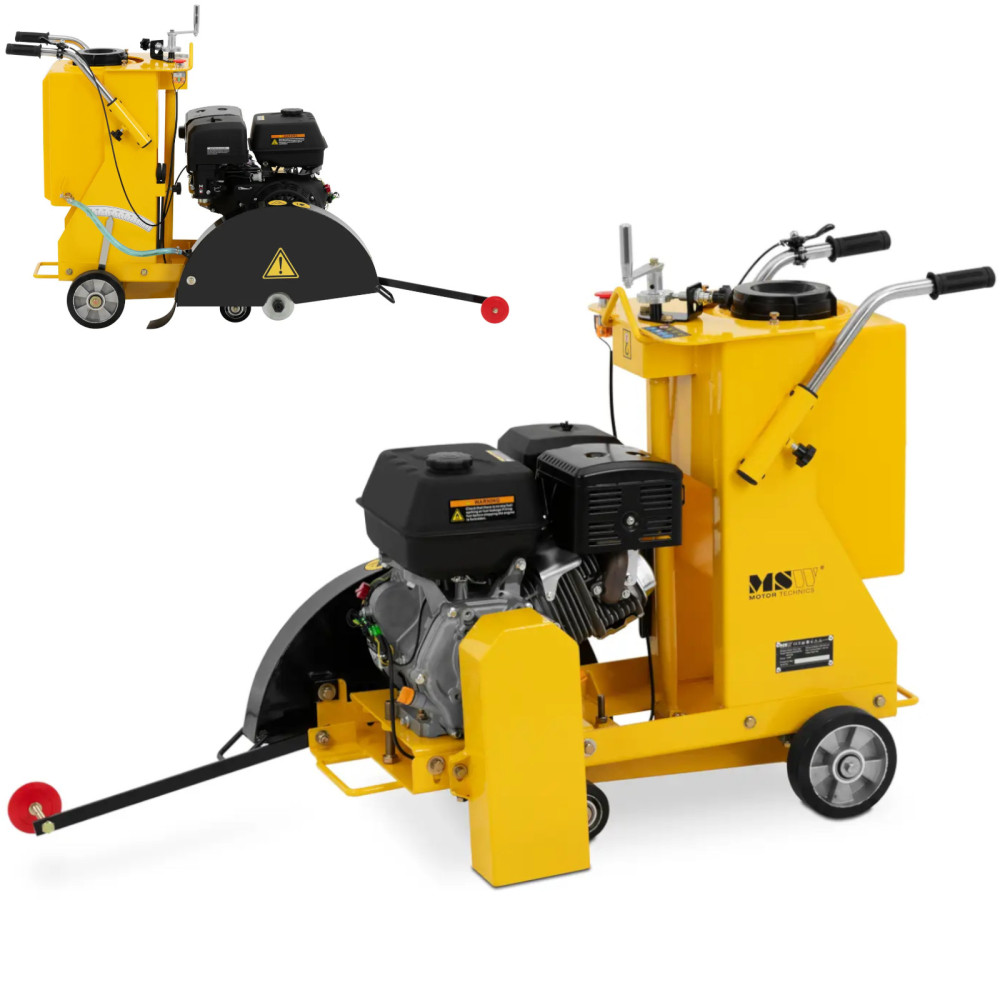

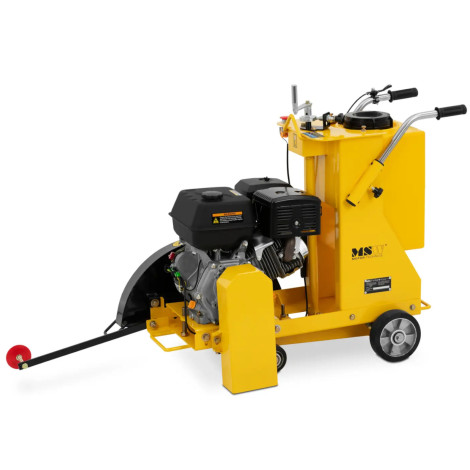

10062753Brand Cutter MSW About 13 km Precisely silently concrete and asphalt. It has been equipped with a high-quality shield and a special water cooling system, which guarantees its effective work. The shield cover, which does not appear without a problem, makes the blade to be replaced in the blink of an eye. A strong steel design has reduced vibrations and is equipped with a handy handle, which can be adjusted to the type of task if necessary. The compact machine will be convenient to
Two wheels. The guide in front of the saw allows you to maintain simple lines. Cutting disc with a diameter
450 mm It is carried out without vibration all the time, even on large surfaces. The cutting depth can be smoothly set
up to 140 mm Using a hand crank. The cutter has been equipped with
35-liter Wet water tank for wet cutting. Water not only cools the blade during long works, but also effectively limits the formation of dust when only the cutter's shield touches the substrate. The gasoline tank has a capacity of 6.5 l, and a 1.1 l oil tank. Thanks to this, you can cut consistently and without interruption.
Product features: - - the efficient motor drives the shield of the concrete cutter with a diameter of 450 mm with 13 km power,

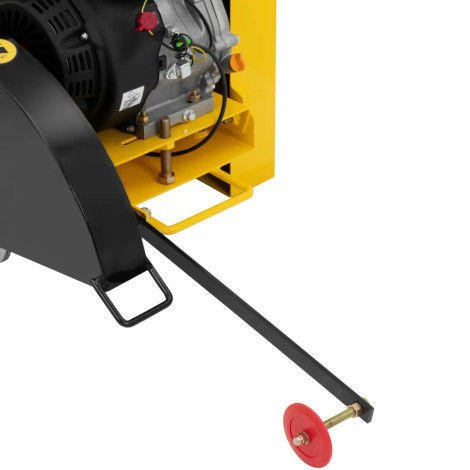

- - the low-lifing guide rail extends the lifetime of the blade and the machine, and also allows you to use the concrete saw with minimal effort,

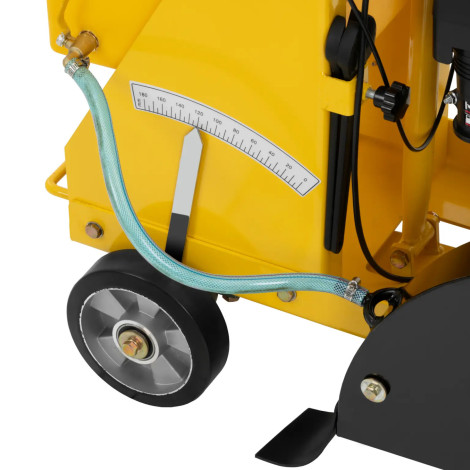

- - the cutting depth can be seamlessly set to 140 mm with a manual crank on the driving pile,
- - tilted shield shield in the drive cutter will facilitate the replacement of the blade and shorten downtime,

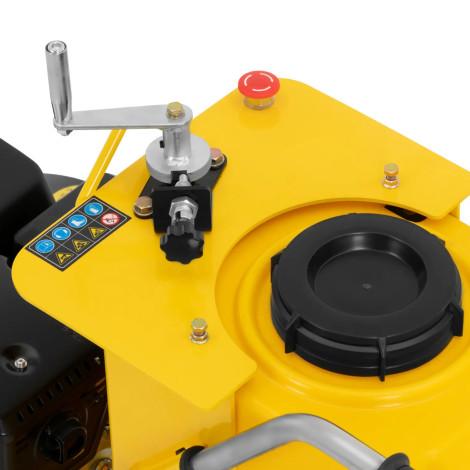

- - A large 35-liter water tank and a 6.5 L fuel tank allow you to work with a saw for asphalt and concrete for a long time.
Technical parameters: - - catalog number - 10062753
- - article - New
- - Model - MSW-Concrete-vpo750
- - Material - Plastic, steel
- - Color - Black, yellow
- - engine power [KM] - 13
- - engine type - Loncin390f
- - Depth of cutting [mm] - 140
- - blades diameter [mm] - 300 - 450
- - Blade hole diameter [mm] - 25,4
- - weight - 112 kg
- - Maximum net power - 8.2 kW
- - Diameter of wheels - 175 mm
- - oil tank capacity - 1.1 L
- - Fuel tank capacity - 6.5 l
- - water container capacity - 35 L
- - Dimensions (DXSXW) - 153 x 54 x 96 cm
- - weight - 112.4 kg
- - Dimensions of shipment (DXSXW) - 106 x 58 x 92 cm
- - shipping weight - 127 kg
Included: - - Concrete cutter
- - cutting disc (450 mm)
- - Mounting accessories
