Manufacturer's code:
10030897Brand Inspection Camera Steinberg Systems It allows you to invest even hard visible or available jobs and malfunctions. Allows you to check wires, pipes or outflows as well as slots or cavities during renovation works. A flexible probe and an ergonomic handle make it ideal for various applications.

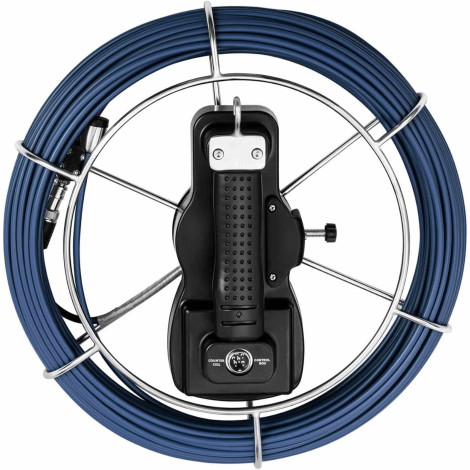

Camera head It is introduced into a pipe using a 30M length probe made of fiberglass. Two pruder leading with different sizes adjust the camera to the pipe diameter. The head and probe are waterproof (
Ip68) And therefore can also be used in a humid environment. Meters counting function and transmitter built into the camera head (without a receiver) facilitate the location of the problem. The flexible camera head can
Rotate about 90Deg and has a viewing angle of 105deg .
12 LEDs Provides appropriate light. Sapphire lens is suitable for difficult conditions and provides sharp images on the monitor
LCD. Ezmult-zoom Digital and independent image alignment show all details. Camera control takes place using the keyboard. In addition to browsing, you can also record audio and video and images that will provide you with valuable information when analyzing cracks or congestion. The camera is equipped with a nest
USB, SD, TF, Micro SD cardSo you can use different media for saving data. The SD card with a capacity of 8 GB has already been included in the scope of delivery. Cordless power supply allows you to use equipment anywhere without an external power source. The set includes a transport case.
Product features: - - Large camera 23 x 134 mm with a resolution of 720 x 576 px and a 9-inch color TFT display,
- - 12 LEDs,
- - a 30 m length probe,
- - the ability to record video and audio recordings and images,
- - Transport suitcase included.
Technical parameters: - - catalog number - 10030897
- - article - New
- - Model - SBS-Ec-300a
- - Material - Housing: stainless steel (SS 304) / Cable: Glass Fiber / Cable Reel: Stainless Steel / USB Connector: Plastic (ABS)
- - Number of LEDs - 12
- - power source - 12V (monitor, control box) Charger: input: AC 100-240 V ~ 50/60 Hz, Output: DC 12.6 V / 1000 MA
- - battery - 4400 mAh, 12.6 V
- - battery power - So
- - viewing angle [deg ] - 105
- - Case included - So
- - Digital enlargement - x 8
- - Automatic shutdown - So
- - Head rotation degree [deg ] - 90
- - housing material - ABS
- - LED lamp - So
- - Lens type - Sapphire glass
- - head diameter [mm] - 23 x 134
- - Display - LCD
- - Type of photosensitive matrix - CMOS
- - Memory - 8 GB SDHC card (SD card, TF and Micro SD)
- - length of the probe boom [mm] - 30
- - Sensor size [''] - 1/3
- - video and photo files format - jpg, avi
- - IP protection class - Ip68
- - transmission signal - Cable
- - USB port - So
- - Display type - 9-inch TFT display
- - Dimensions (DXSXW) - 51 x 20 x 45 cm
- - weight - 9.78 kg
- - Dimensions of shipment (DXSXW) - 52 x 21 x 46 cm
- - shipping weight - 10.8 kg

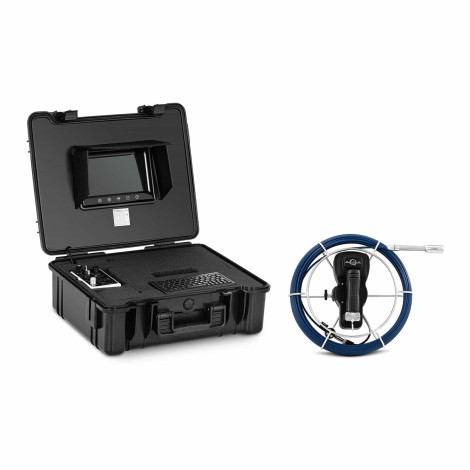

Included: - - Inspection camera
- - Monitor
- - probe
- - Probe guide

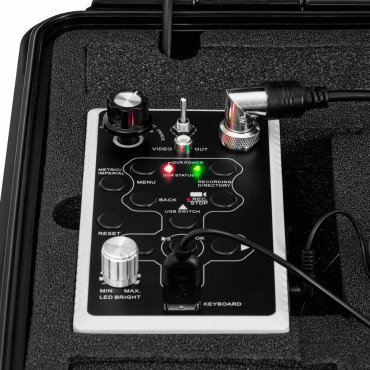

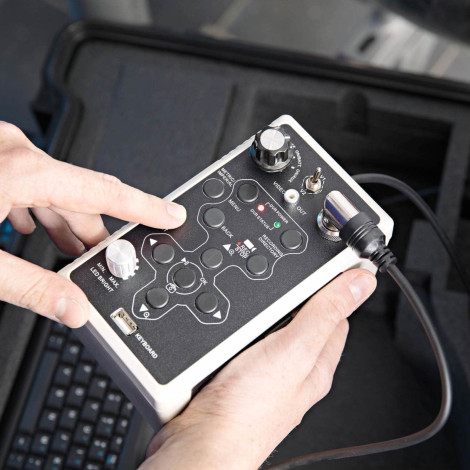

- - Control unit
- - camera head
- - 2 rubber rings

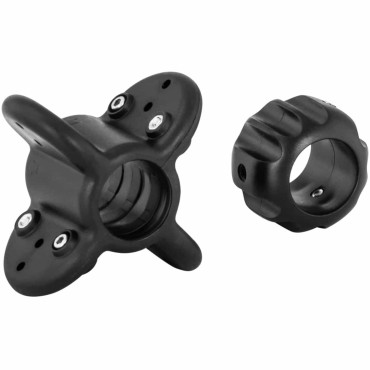

- - skids (40/80 mm)
- - Screwdriver
- - SD card
- - USB reader
- - microphone
- - Batteries
- - Charger
- - keyboard
- - suitcase
- - User manual
