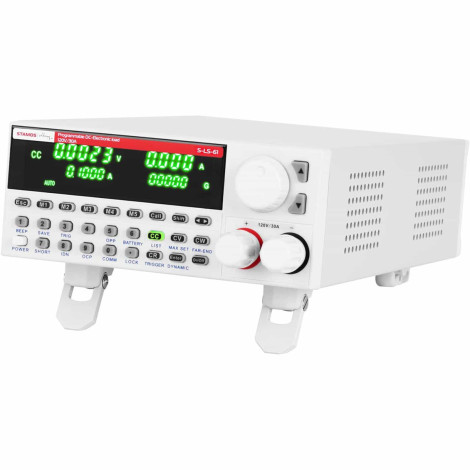

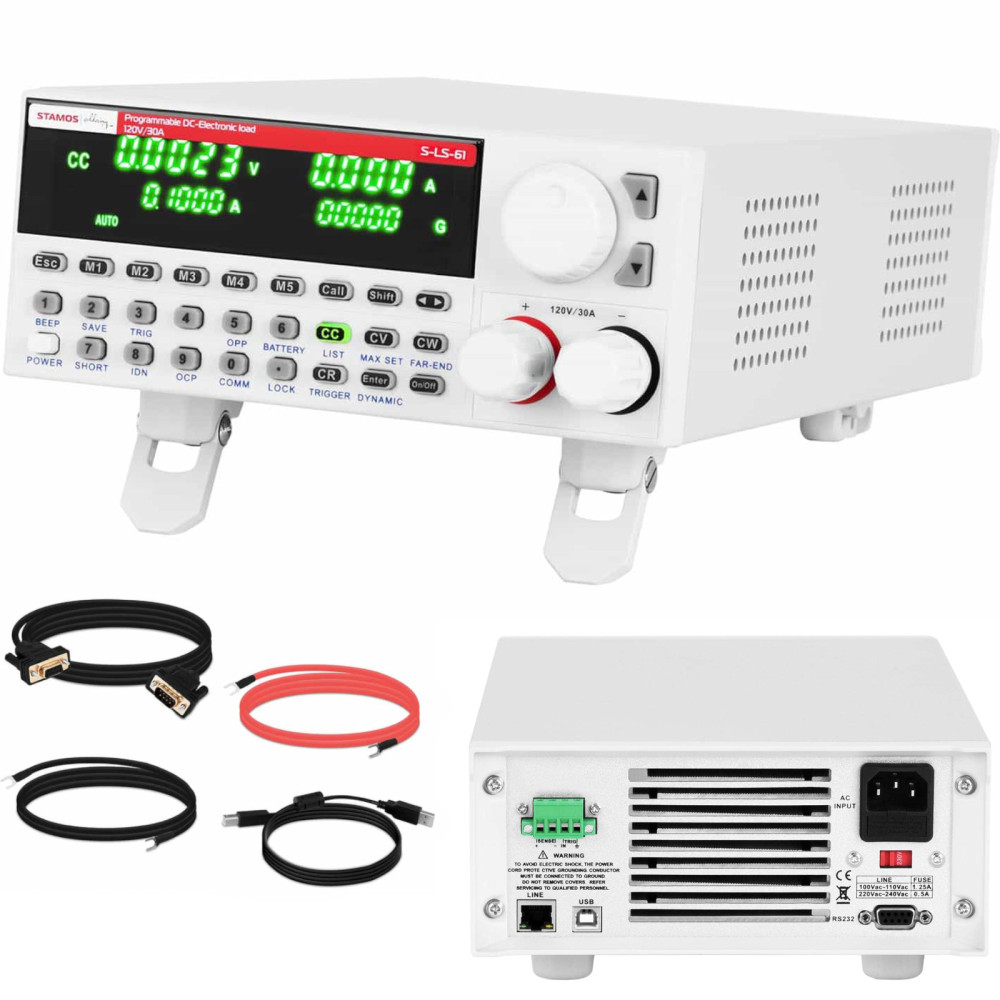

Programmable electronic load 0-120 V 0-30 A 300W USB LAN RS232

Manufacturer's code: 10021138
Electronic load brand Stamos Soldering Used for static and dynamic testing of laboratory power supplies, batteries, voltage converters or chargers. Equipment will work in workshops, sites, laboratories and research institutes. The efficiency of the device is the merit of the channel with the output positive and negative. It has adjustable voltage in the range 0-120 V, starting current 0-30 a. The power of the device is 300 W, 0.0001 V resolution, 0.0001 A. The five-digit display ensures free control of parameters. The device's memory is 100 records. There is also the option of choosing one of 4 operating modes: permanent current (CC), constant voltage (CV), constant power (CP), constant resistance (CR). A battery test, automatic test, OPP test and OCP test functions were also added. Safety provides IEC protection class, 20 IP protection class as well as 0,5 a 250 V fuse. Overheating Prevents a cooling fan.
Product features:

• - single-channel - adjustment range 0-120 V, 0-30 A, 300 W with high resolution 0.0001 V, 0.0001 A,
• - programmable DC load with USB, RS232 and LAN interfaces,
• - a five-digit LED screen (for voltage and intensity),
• - 100 record memory capacity and memory shutdown function,
• - 4 Operating modes - CV / CC / CR / CP trigger lock switch.

Technical parameters:

• - catalog number - 10021138
• - article - New
• - Model - SEC-ĺş-61
• - current stability - ± (0.05% setting + 0.45% OFF S)
• - connector [mm] - -
• - Cooling - Fan
• - Current regulation range [A] - 0-30
• - Display accuracy - Voltage: ± (0.03% SETTING + 0.025% OFF) Electricity: ± (0.05% SETTING + 0.045% OFF)
• - Ammeter - 5 digits
• - Cable length [m] - Euro power cable: 1.2 m, USB cable: 1.5 m, RS232 cable: 1.5 m, Measuring cable 30 A: 1.2 m
• - Current current - 0-30 a
• - DC voltage adjustment range [V] - 0-120
• - fuse [A] - 0.5 A / 250 V
• - Insulation resistance [MΩ] - > 30
• - Working humidity [%] - <80%
• - Security - OPP (160 W), OCP (3.3 A / 33 A), OVP (125 V), OTP (85 ℃)
• - Power cord [m] - 1,2
• - resolution - Electricity: 0.001 A, Voltage: 0.001 V
• - Display - Led
• - Relative permissible humidity of escaplet and storage [%] - <70%
• - Accuracy of parameter settings (25DEG C ± 5DEG C) - Current: ± (0.05% setting + 0.045% off), voltage: ± (0.03 Settings + 0.025% Off)
• - Memory - 100 groups
• - Tension [V] - 230
• - power [W] - 300

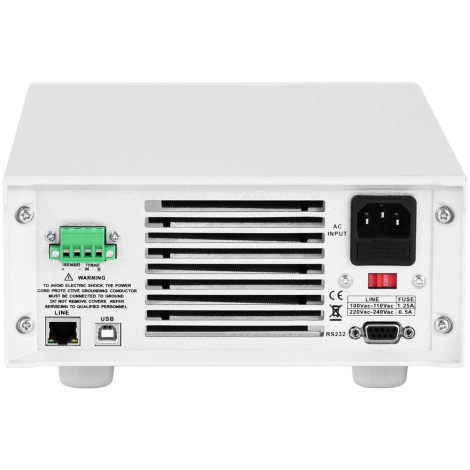

• - a connection to a computer - USB, RS232, LAN
• - voltmeter - 5 digits
• - voltage range [V] - 0-120
• - storage temperature [deg C] - -10 ℃ ~ 70 ℃
• - Temperature coefficient - ≤200 ppm
• - Work temperature range [deg C] - 0-40
• - voltage stability - ± (0.05% setting + 0.45% OFF S)
• - storage humidity - <70%
• - USB cable length [m] - 1,5
• - Dimensions (DXSXW) - 39 x 21.5 x 11 cm
• - weight - 5.84 kg
• - Dimensions of shipment (DXSXW) - 45.5 x 33 x 20 cm
• - shipping weight - 6.65 kg

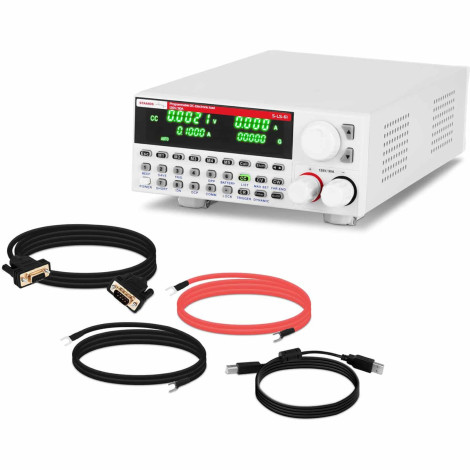

Included:

• - Programmable electronic load
• - CD with software
• - Power cord
• - USB cable
• - RS232 cable
• - Measuring wire 30 A
• - User manual
