Pneumatic hammer hammer for shaping sheet 6.9 bar 1350 strokes / min

€386.20
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10062596

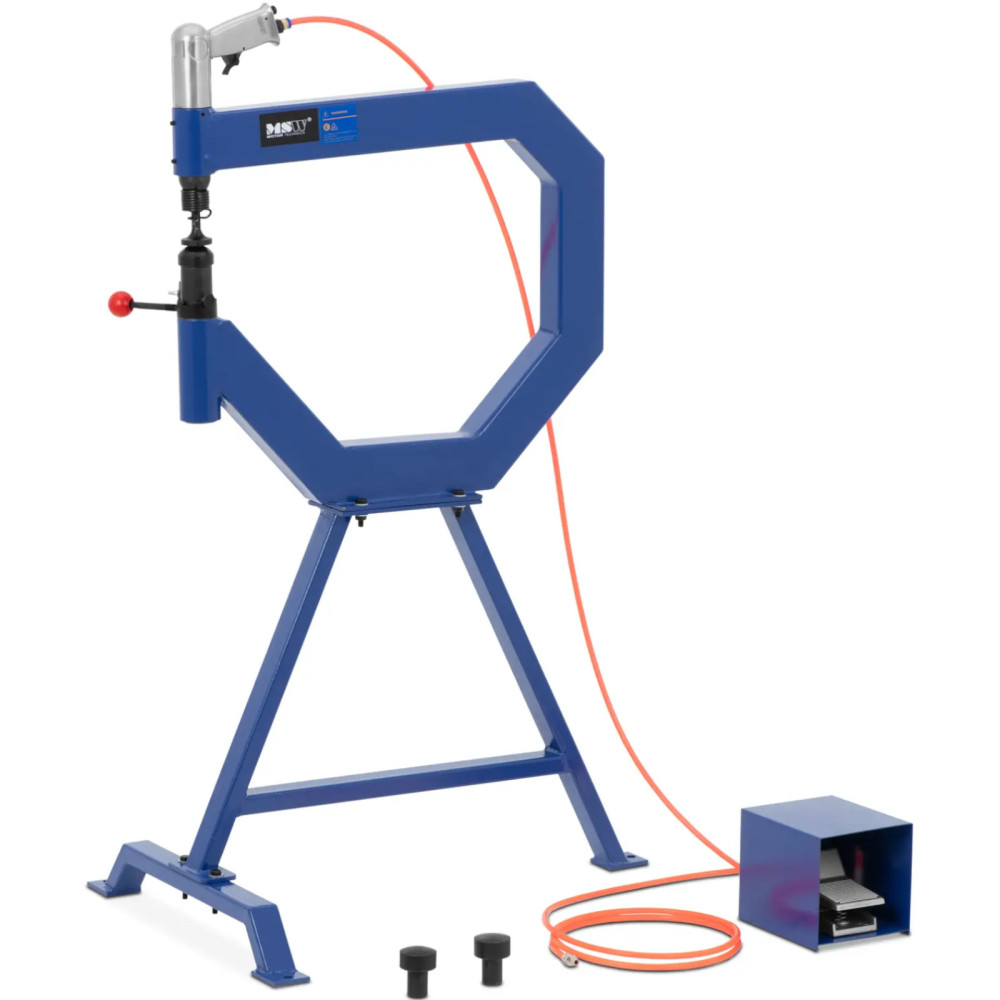

Market for sheet metal MSW You can use in many ways: when building a bodywork, production of tanks or protective covers. Will work shaping, rounding, smoothing or stretching steel, aluminum, copper, brass and other metals. The hammer impresses with excellent parameters, easy operation and exceptional stability during machining. The hunter has a solid foundation, thanks to which you can work on the optimal working height. The legs are screwed to the floor using pre-drilled holes, thus obtaining maximum stability. Compressed air supply, and thus the hammer sheet support, controlled by means of a foot pedal. This means that both hands will be free, which allows you to calmly lead a baking tray through the wheel. The gorge has a depth of 50 cm and therefore suitable for large sheets. Thanks to the stroke from 875 to 1350 strokes per minute and working pressure 6.9 bar Optimal results are certainly achieved during operation. They are choosing Three anvils with a radius of 2.54 mm, 5.08 mm and 7.62 mm. The impact speed is set directly on the device, which allows precise results depending on the type of metal. The sheet coolator is distinguished by a solid construction, which was designed for continuous work in workshops or production halls.
Product features:
  • - allows you to round, shape, smooth and stretch steel, aluminum, copper sheets and not only,
  • - thanks to the base, the pneumatic hammer will always be on the optimal working height,
  • - at a working pressure 6.9 bar, the sheet coat for the sheet will reach a regulated speed from 875 to 1350 beats per minute,
  • - handling with foot pedal and safe handling of sheet metal,
  • - A solid steel design stands on the basis that you can probably attach to the substrate with screws.

Technical parameters:
  • - catalog number - 10062596
  • - article - New
  • - Model - MSW-Pph-t500
  • - Material - Steel
  • - Color - Blue
  • - Dimensions of anvil [mm] - 2.54 5.08 7.62
  • - Nominal speed [obr./min] - 875-1350
  • - depth of the gorge - 50 cm
  • - Maximum working pressure - 6.9 bar
  • - Dimensions (DXSXW) - 104 x 60 x 50 cm
  • - weight - 20.8 kg
  • - Dimensions of shipment (DXSXW) - 77 x 70 x 44 cm
  • - shipping weight - 24 kg

Included:
  • - Shutteller for sheet metal
  • - basis
MSW
1024316

Data sheet

Kod producenta
1024316
