Crimping machine Axial press to connectors and pipes Wed. 16-32 mm

€359.43
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10061098
Brand hand tools MSW It will work for all applications on pipe systems. Select to clamping connectors and pipes (m.in. In installations or underfloor heating) and also to expand their tips. Tools were made of high-class aluminum alloy. Holders made of non-slip plastic make the equipment probably lie in your hand and it's easy to operate. The axial clamping range is Wed. 16-32 mm. The pipe tip diameters can be broadened in the range of 16-32 mm. You can also cut the element with a diameter of up to 40 mm. A full set of accessories contains Clamping pliers (16 x 2.2 mm, 20 x 2.8 mm, 25 x 3.5 mm, 32 x 4.4 mm) and Expanders for pipes (16 x 2.2 mm, 20 x 2.8 mm, 25 x 3.5 mm, 32 x 4.4 mm). All elements are placed in a plastic suitcase.
Product features:
  • - ideal for crimping axial fittings and pipes,
  • - set made of high quality aluminum alloy,
  • - Safe operation thanks to non-slip plastic handles,
  • - cutting, clamping and extending pipes and connectors,

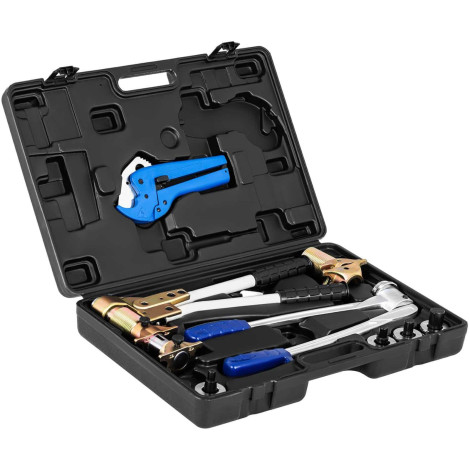

  • - Plastic suitcase for storage and transport.

Technical parameters:
  • - catalog number - 10061098
  • - article - New
  • - Model - MSW-Ptm-02
  • - Material - Aluminum alloy, plastic
  • - Additional accessories - Clamping jaws 16 x 2.2, 20 x 2.8, 25 x 3.5, 32 x 4.4 mm, expansion matrix 16 x 2.2, 20 x 2.8, 25 x 3.5, 32 x 4.4 mm
  • - Cutting range [mm] - Max. 40 mm
  • - clamping force - 40 KN
  • - a suitcase included - So
  • - Scope of expansion - 16-32 mm
  • - Ironing range - 16-20, 25-32 mm
  • - Dimensions (DXSXW) - 51 x 9.5 x 36 cm
  • - weight - 5.5 kg
  • - Dimensions of shipment (DXSXW) - 52 x 10.5 x 37 cm
  • - shipping weight - 7.8 kg

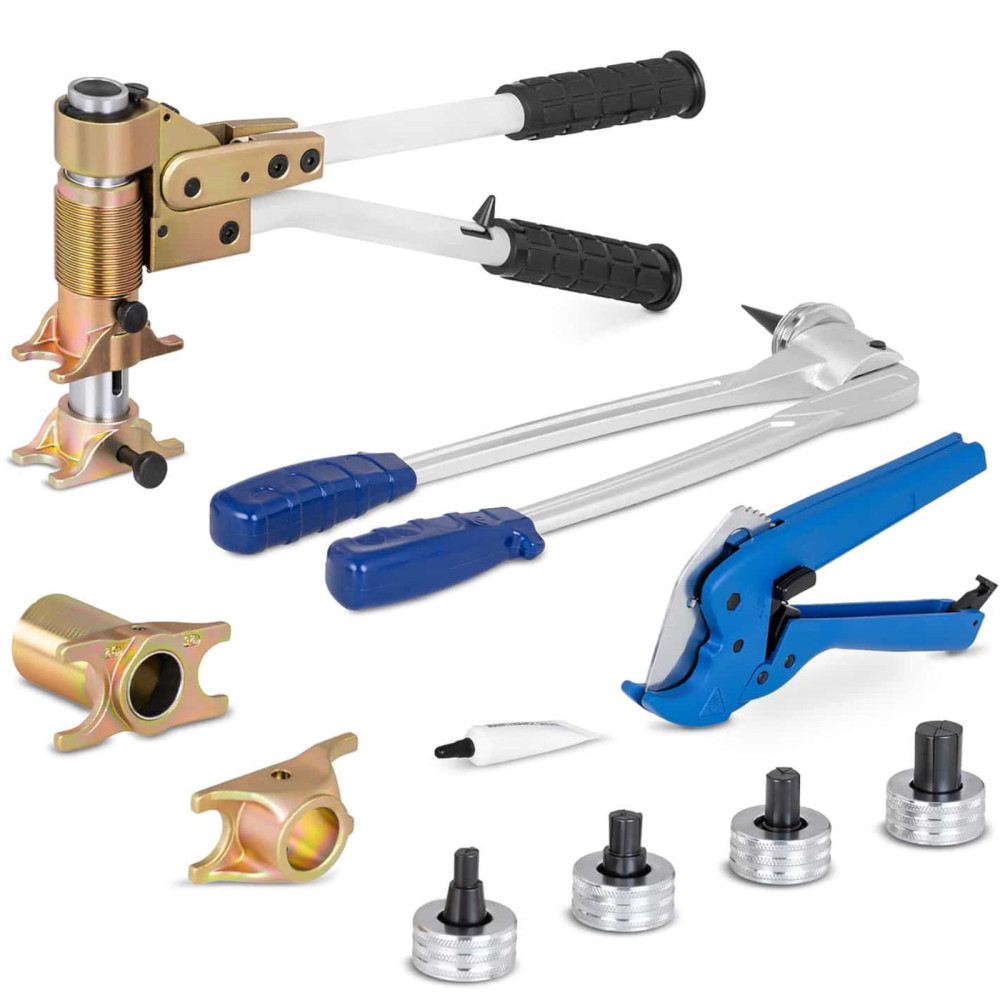

Included:

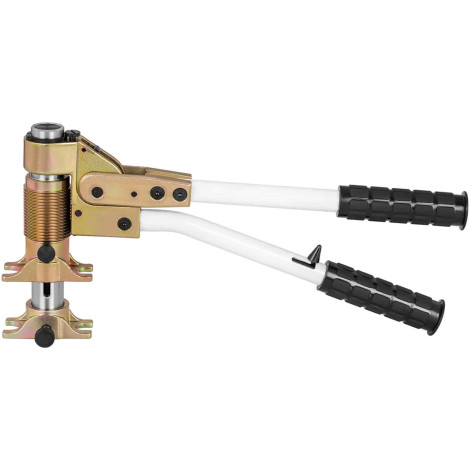

  • - Axial crimper

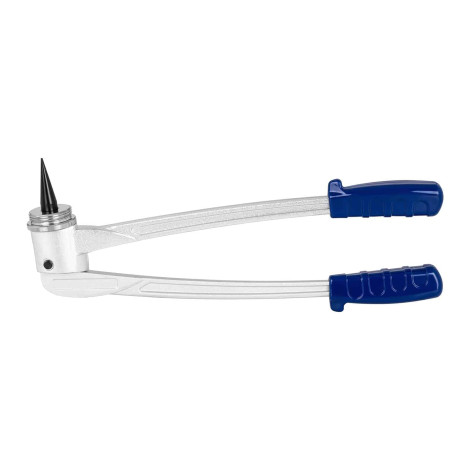

  • - Expander for pipes

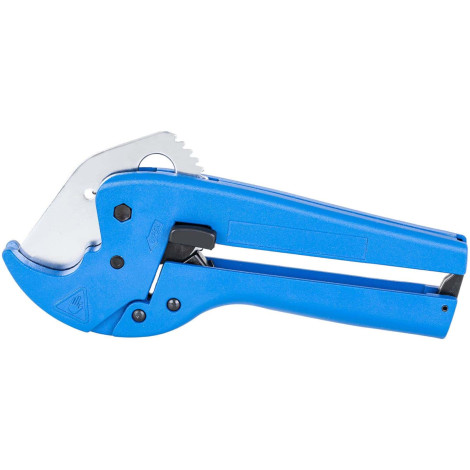

  • - scissors

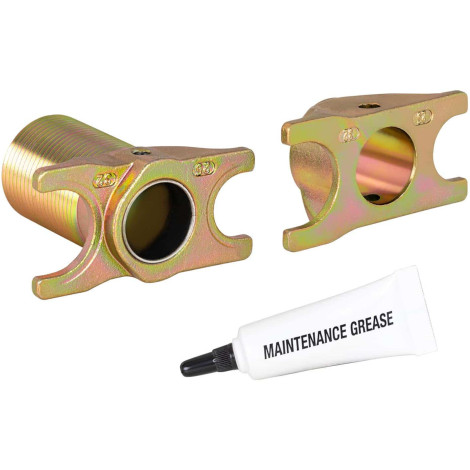

  • - clamping pliers (16 x 2.2 mm, 20 x 2.8 mm, 25 x 3.5 mm, 32 x 4.4 mm)

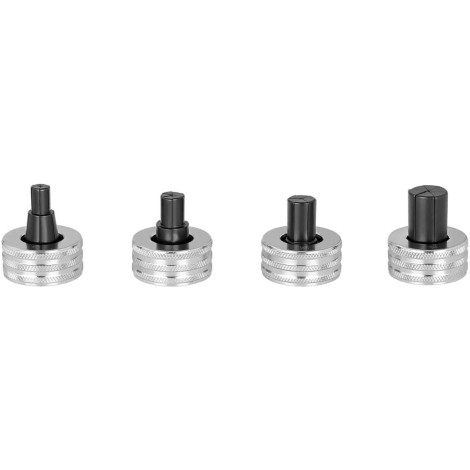

  • - Expander inserts (16 x 2.2 mm, 20 x 2.8 mm, 25 x 3.5 mm, 32 x 4.4 mm)
  • - Maintenance oil
  • - User manual
