Hydraulic pneumatic workshop 30t 666 bar MSW Wp-30t -p

€819.38
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's name: MSW-Wp-30t

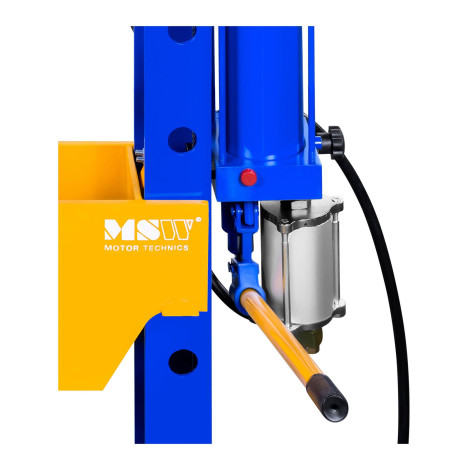

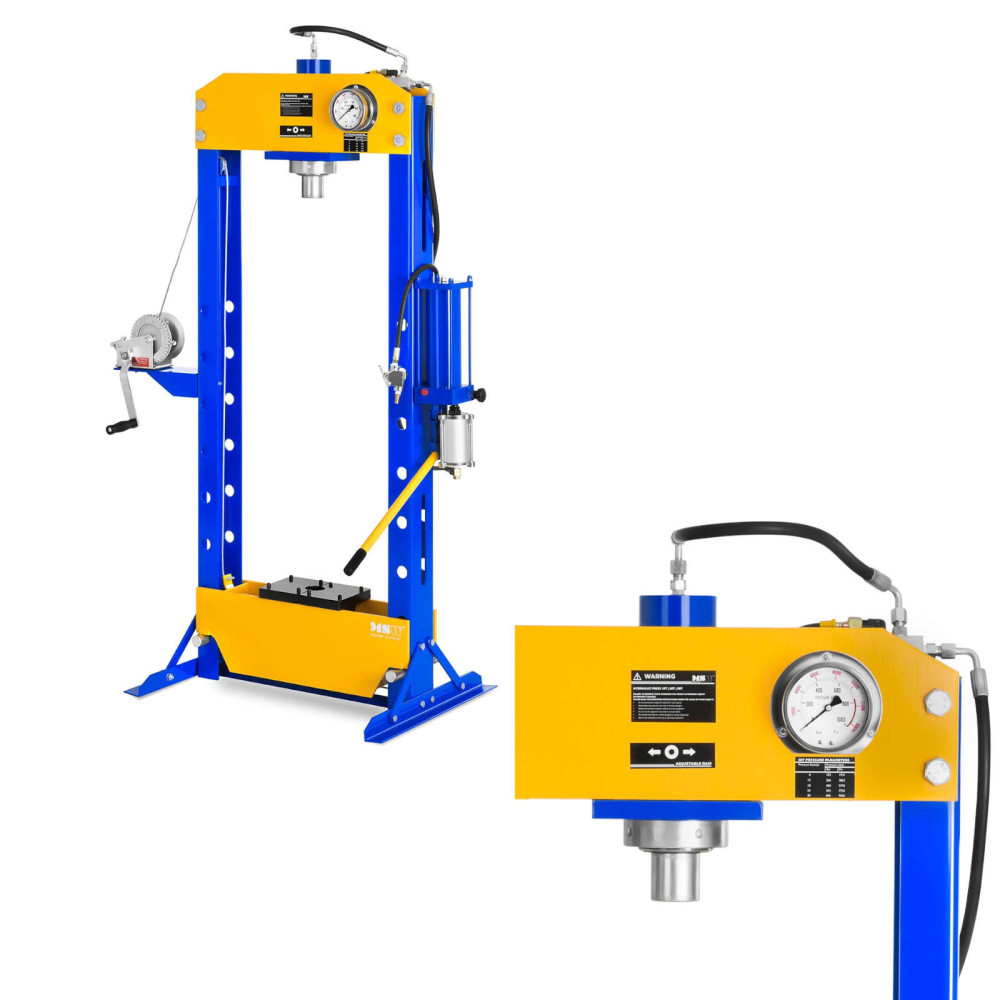

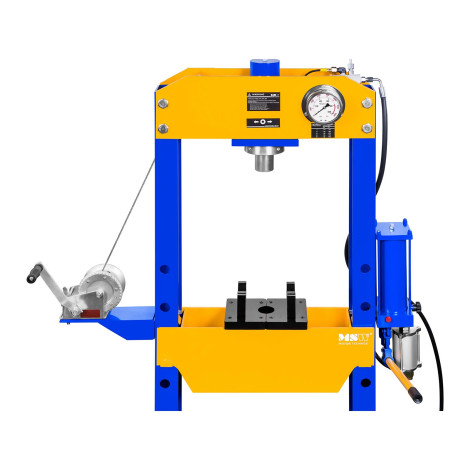

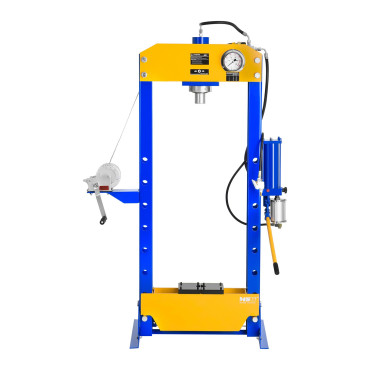

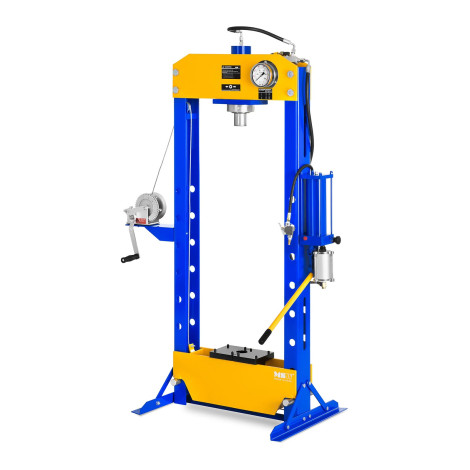

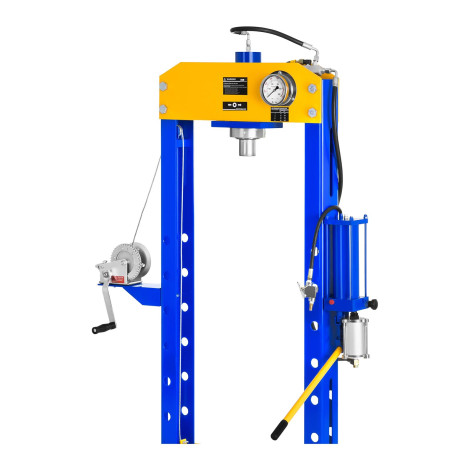

Hydraulic and pneumatic press with a maximum pressure of 30 tons brand MSW Motor Technics is a device that will find its application in industrial plants, workshops, garages, sites and automotive stores. Equipment perfectly works well shaping, bending, straightening hard metal, and will also enable easy assembly and disassembly of gears, bearings, hub or sleeves. Solid, completely welded design provides a high durability device. Modern technical solutions used by the manufacturer make working using the model MSW-WP-30T-P runs very effective. Pneumatic control increases the speed and performance of the operation, while minimizing the operator fatigue. Hydraulic control provides greater precision and high sensitivity.
Product features:
- Large pressure of the piston
- two ways to control
- Completely welded construction
- Working height adjustment
- horizontal sliding piston

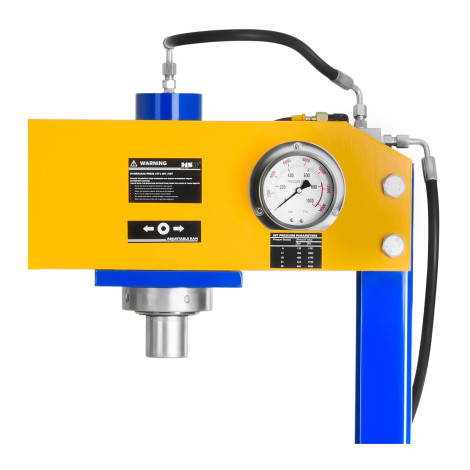

- Precise pressure gauge
- for industrial and workshop works
Technical parameters:
  • - Model - MSW-Wp-30t -p
  • - catalog number - 6302
  • - article - New
  • - Maximum pressure - 30 t
  • - Maximum working pressure - 666 bar (9656 psi)
  • - air pressure - 7.5 - 8.5 bar (0.75 - 0.85 MPa)
  • - Working height - 250-1125 mm (8 levels adjusted in 125 intervals)
  • - Washing table width - 530 mm
  • - piston jump - 160 mm
  • - Dimensions (DXSXW) - 82 x 111 x 164 cm
  • - weight - 133 kg
  • - Dimensions of shipment (DXSXW) - 176.5 x 71.5 x 27 cm
  • - shipping weight - 154.5 kg

Included:
- hydraulic press
- EN statement
MSW
1007228
32 Items

Data sheet

Kod producenta
1007228
Comments (0)
No customer reviews for the moment.
