Manufacturer's code:

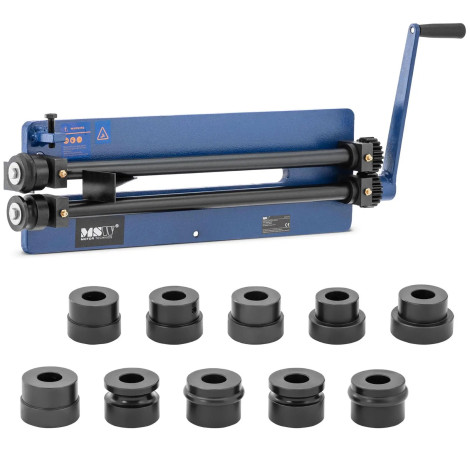

10062233Brandy MSW Allows you to easily and precise the sheet metal sheets
up to 1.2 mm. To do this, equipped the upper roller holder into one of three forms and lower in the appropriate matrix. Use a crank to draw a baking tray. The scope of delivery includes for typical applications
Three pairs of flange rollers (1.5 mm, 3 mm, 6 mm) and
Three pairs of ball rolls (4 mm, 6 mm, 7.5 mm). The groove is mechanically operated using a crank. Movement of it drives two handles with a width of 460 mm. The rotary movement pulls the sheet for handicraft and simultaneously deforms them in the desired way. Thanks to a large length, only a small muscle strength needs. The machine processes a large number of sheets without fatigue. The groove was made of
chromed steel. The material is very resistant to rust, and at the same time extremely durable. Ideally suited for metal processing and use in workshops and on construction sites. To facilitate handling, sheet metal, you can easily mount on any workshop table thanks to appropriate cutouts.
Product features: - - even for thick sheets with a thickness of up to 1.2 mm,
- - Easy operation using a crank for handling both rollers and tabs of the sheet,
- - a solid construction made of chrome steel is ideal for metalworking,
- - extensive roll set for different connections,
- - For use in the workshop or on construction, just mount the device on the iMadle.
Technical parameters: - - catalog number - 10062233
- - article - New
- - Model - MSW-Brs-460h
- - Material - Chrome steel
- - Color - Blue
- - Number of matrices - 12
- - ball pins - 3 pairs (4 mm, 6 mm, 7.5 mm)
- - Flange pins - 3 pairs (1.5 mm, 3 mm, 6 mm)
- - Maximum sheet thickness for machining [mm] - 1,2
- - depth of the gorge - 46 cm
- - Dimensions (DXSXW) - 44 x 73 x 18 cm
- - weight - 23.75 kg
- - Dimensions of shipment (DXSXW) - 75 x 30 x 16 cm
- - shipping weight - 25 kg
Included: - - grouse
- - 3 sets of ball rolls
- - 3 sets of flange rollers
