Manufacturer's code:
10060483German brand MSW will work in workshops, factories and for hobby uses to
gouging, grooving, bending, milling or cutting sheet sheets.

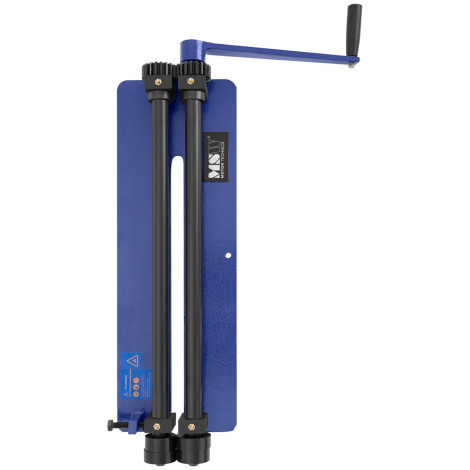

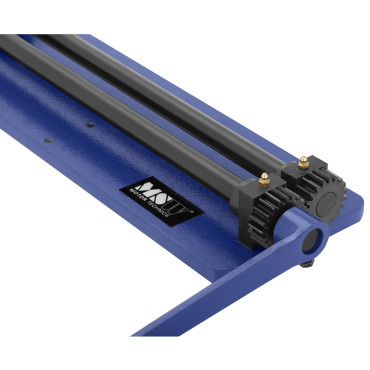

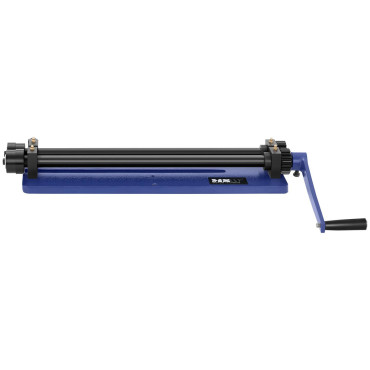

The maximum thickness for soft steel sheet is 1.2 mm and 1.8 mm for aluminum. The 3 sets of ball stones attached to the device (6.35 mm 9.53 mm 12.7 mm) and 3 flange (1.6 mm 3.2 mm 6.35 mm) guarantee a variety of sheet metal. Manual crank enables rotation of the shaft when feeding the sheet metal sheets. The device construction has been made of cast iron and steel which ensures its stability and long service life.
Product features: - - Wide range of applications - gouging, grooving, milling, cutting, etc.,
- - Practicality - a full set of removable stones,
- - Simplicity of use - hand crank,
- - Stability - a durable iron and steel construction,
- - Protection - Resistance to deforming and deformation.
Technical parameters: - - catalog number - 10060483
- - state - New
- - Working depth - 440 mm
- - Maximum processing thickness - Steel sheet: 1.2 mm, aluminum: 1.8 mm
- - Sets of forming stones (ball pins, flange pins and shear kit) - 7 pieces: 22 mm (Wed. Inner) and 55 mm (Wed. outer)
- - shear kit - 1 pair (diameter 53 mm, thickness 8 mm)
- - ball pins - 3 pairs (6.35 mm 9.53 mm 12.7 mm)
- - Flange pins - 3 pairs (1.6 mm 3.2 mm 6.35 mm)
- - Material - Cast iron + steel
- - Dimensions (DXSXW) - 74 x 32 x 31.5 cm
- - weight - 25.3 kg
- - Dimensions of shipment (DXSXW) - 75 x 29 x 15 cm
- - shipping weight - 26.3 kg

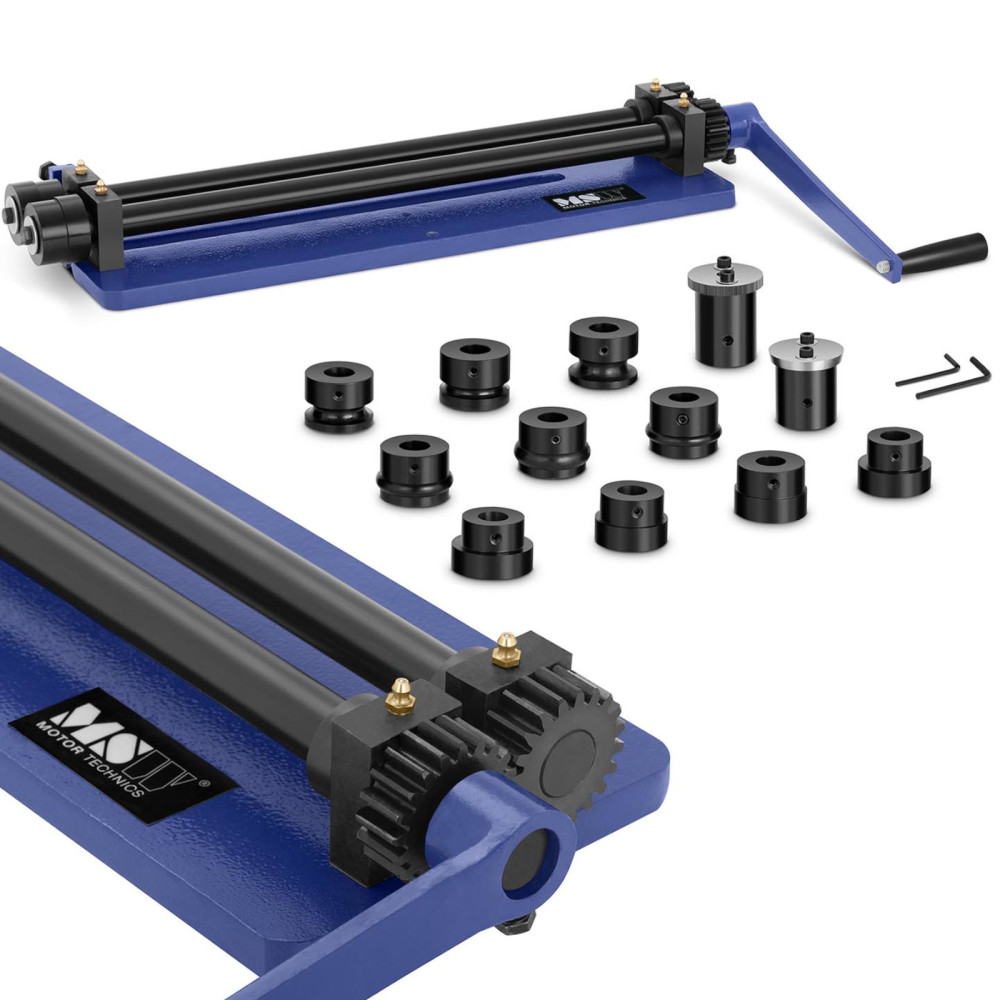

Included: - - grouse
- - Crank handle
- - Flange pins (1.6 mm 3.2 mm 6.35 mm)
- - ball pins (6.35 mm 9.53 mm 12.7 mm)
- - shear kit
- - Hexagon key
- - User manual
