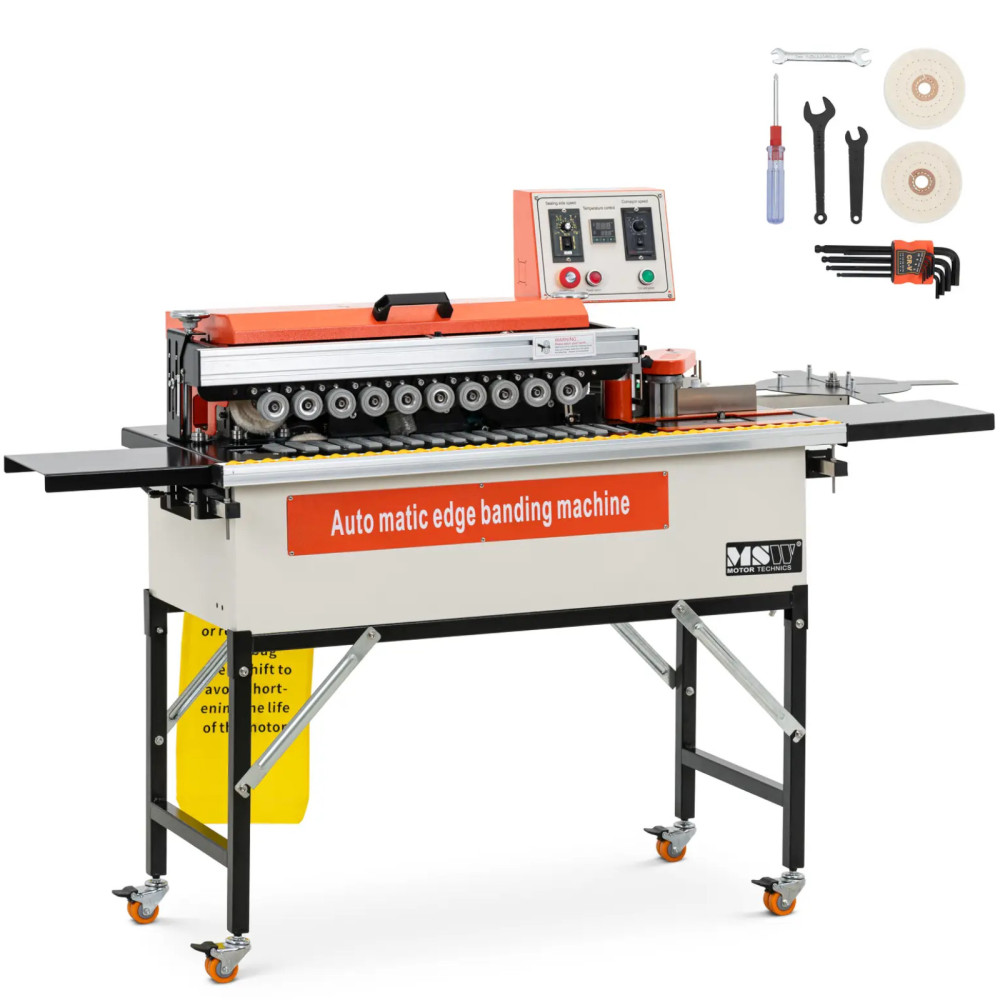

Veneer for edge furniture Wood PVC ABS veneer 0.3-3 mm 7m / min 2115 W

€1,888.66
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10062923
Veneer for the edge of the brand MSW It guarantees ease of use, performance and precision. Professional machine with 2-step feed speed adjustment up to 7 m / min It will allow you to get high-quality connection without material shifting. Another advantage is easy to handle using the attached foot pedal. The veneer blends on both sides with a thickness of 0.3 to 3 mm and a height of 10 to 60 mm. The integrated trimming function will reduce the number of patches and accelerate machining. The adjustable temperature will evenly distribute heat, which will ensure optimal gluing of different edges. Depending on the material, you can select a working temperature from 120 to 200deg C. This will prevent the periphery damage due to overheating or weak adhesion due to too low temperatures. The integrated display will ensure full control. This allows you to process a wide range of materials such as wood, veneer, PVC, ABS or melamine, as well as different adhesives in optimal conditions.
Product features:
  • - the veneer examines the edges with a thickness of 0.3 to 3 mm and height from 10 to 60 mm,
  • - 2-stage feed speed adjustment and foot pedal facilitating service,
  • - the veneer has a display that allows precise adjustment of 5 heaters in the range 120 - 200DEG C.
  • - 2115 wingers with a capacity of 2115 is quickly ready for operation and the trimming function minimizes the number of patches,
  • - Bilateral gluing technology will guarantee an even and secure application of the edges for optimal effects.

Technical parameters:
  • - catalog number - 10062923
  • - article - New
  • - Model - MSW-Edge-d00x4
  • - frequency [Hz] - 50/60
  • - Gluing method - Bonding
  • - Type of vaulting - Simple sheets
  • - Material - Aluminum alloy, powder coated steel
  • - Color - Black, orange, white
  • - Tension [V] - 220 - 240
  • - Speed [m/min] - 7
  • - power [W] - 2115
  • - Width of the outskirts [mm] - 10 - 50
  • - veneer thickness [mm] - 0.3 - 3
  • - thickness of the workpiece [mm] - 9 - 60
  • - Working pressure [bar] - 4 - 6
  • - Work temperature range [deg C] - 120 - 200
  • - Minimum length of the material workpiece [mm] - 200
  • - Minimum width of the material workpiece [mm] - 60
  • - Dimensions (DXSXW) - 99.5 x 198.5 x 126 cm
  • - weight - 98.45 kg
  • - Dimensions of shipment (DXSXW) - 120.5 x 56 x 71 cm
  • - shipping weight - 122 kg

Included:
  • - edge jacket
  • - feeder
  • - Foot pedal
  • - 2 power fuses
  • - Mounting accessories
