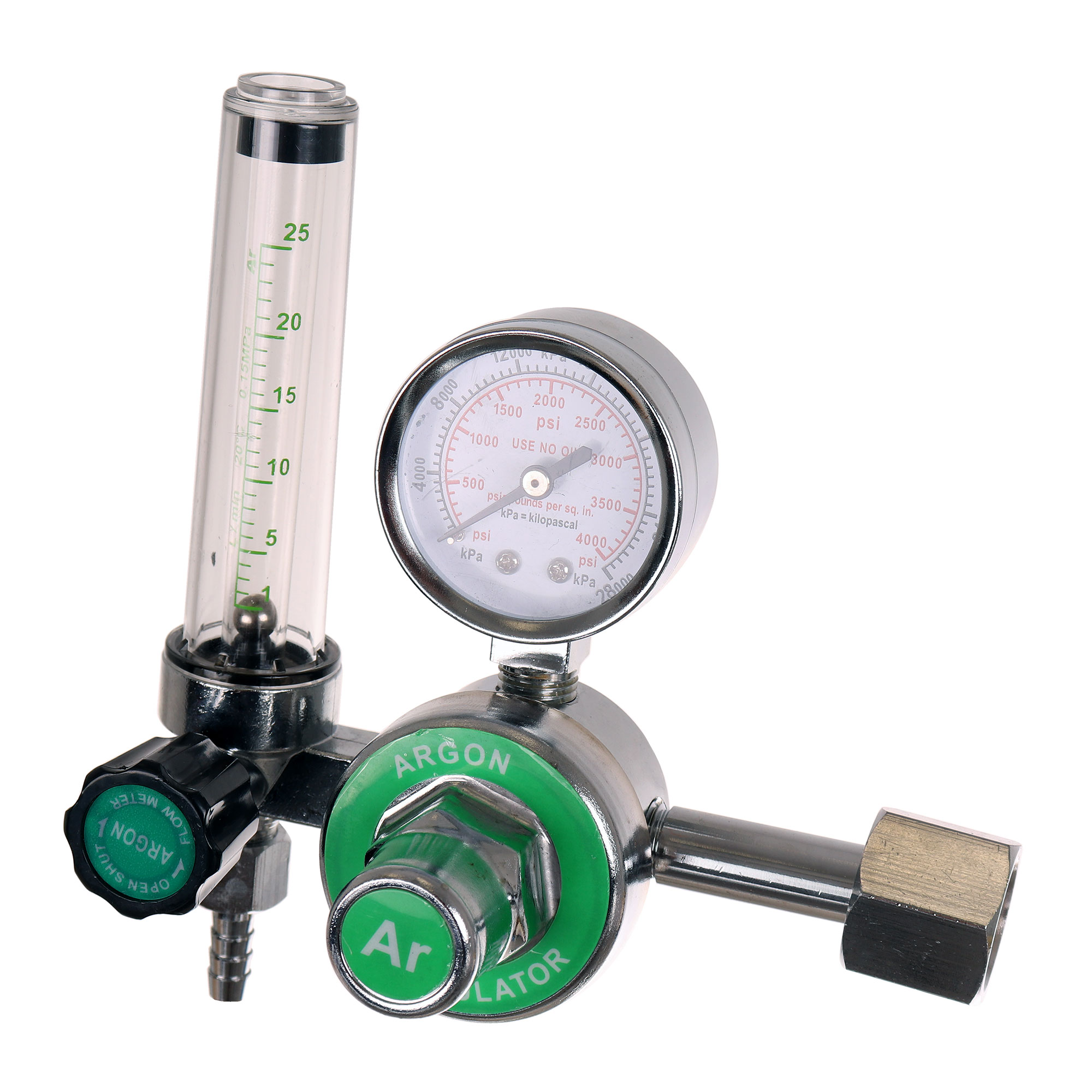

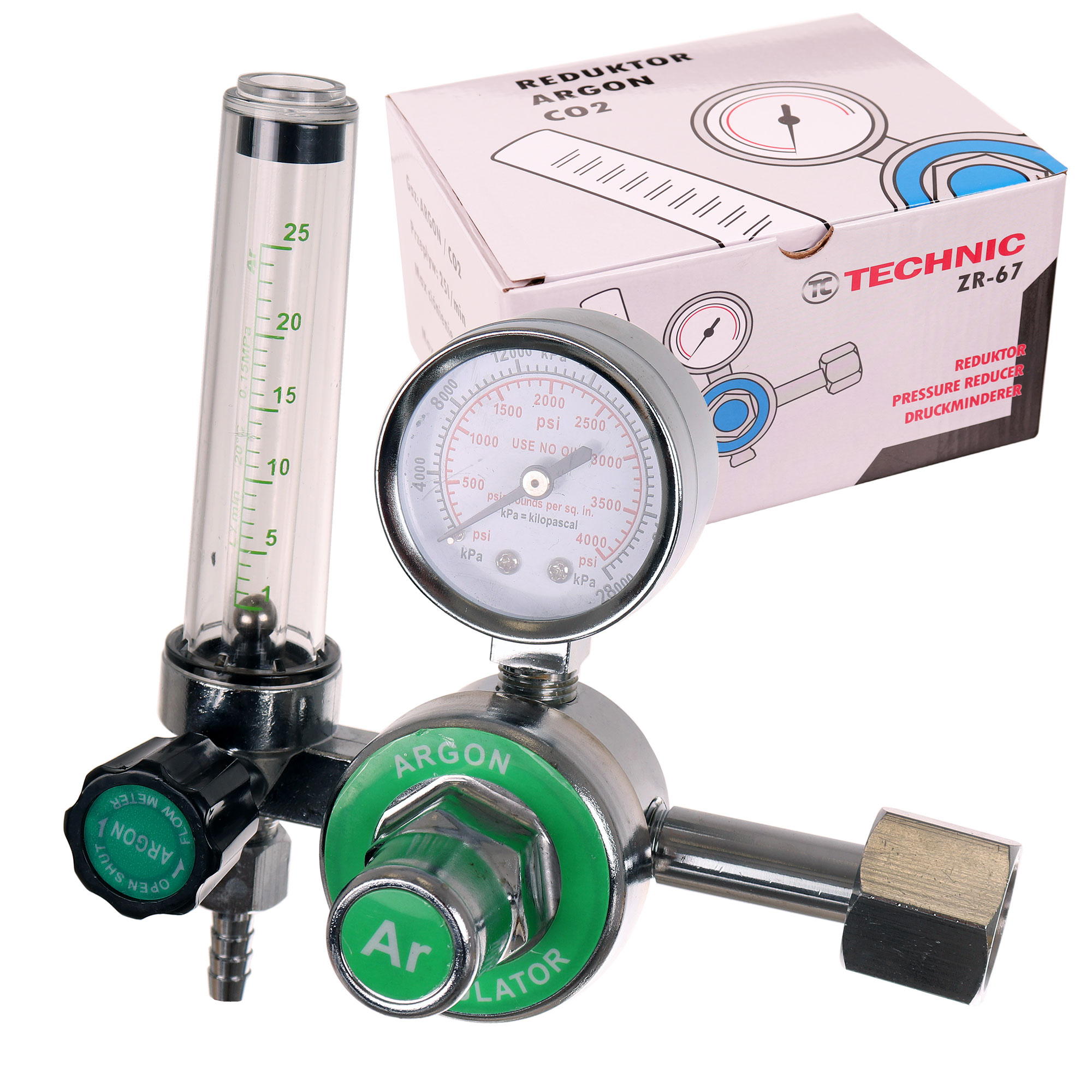

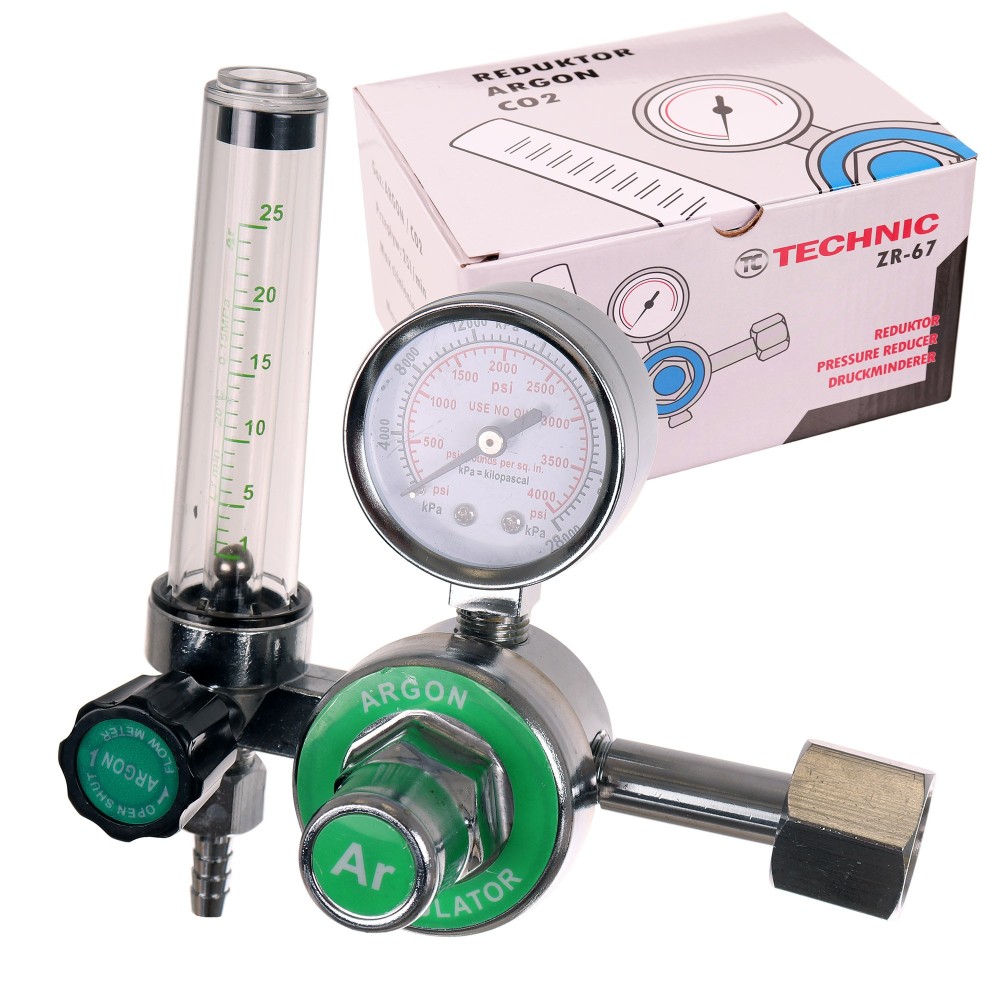

Reducer ZR-67 for Argon + CO2 1-Rotameter

Reducer with CO2 Rotameter Argon MIG TIG Aquarium

Reducer with a rotameter measuring the amount of gas flowing over time. It is used in MIG, MAG, TIG welding and in aquaristics for dosing air.

• Maximum permanent pressure: 3 bar
• Smooth gas outflow adjustment regardless of pressure in the bottle
• Smooth CO2 adjustment, enables precise setting
• (Rotameter allows you to set a very thoroughly exact gas outflow even single bubbles)
• Precise needle valve
• Flow reading visible on Rotameter
• Pressure reading in the cylinder visible on the manometer
• A clear manometer shield
• Pressure pressure gauge in the cylinder up to 300 bar
• A very solid construction
• chrome surface

Technical data:

• Gas type - carbon / argon / air dioxide
• Max Inlet Pressure Bar / MPa - 200/20
• Max. Exhaust pressure Bar / MPa - 4 / 0.4
• Rated bandwidth - 25 l / min

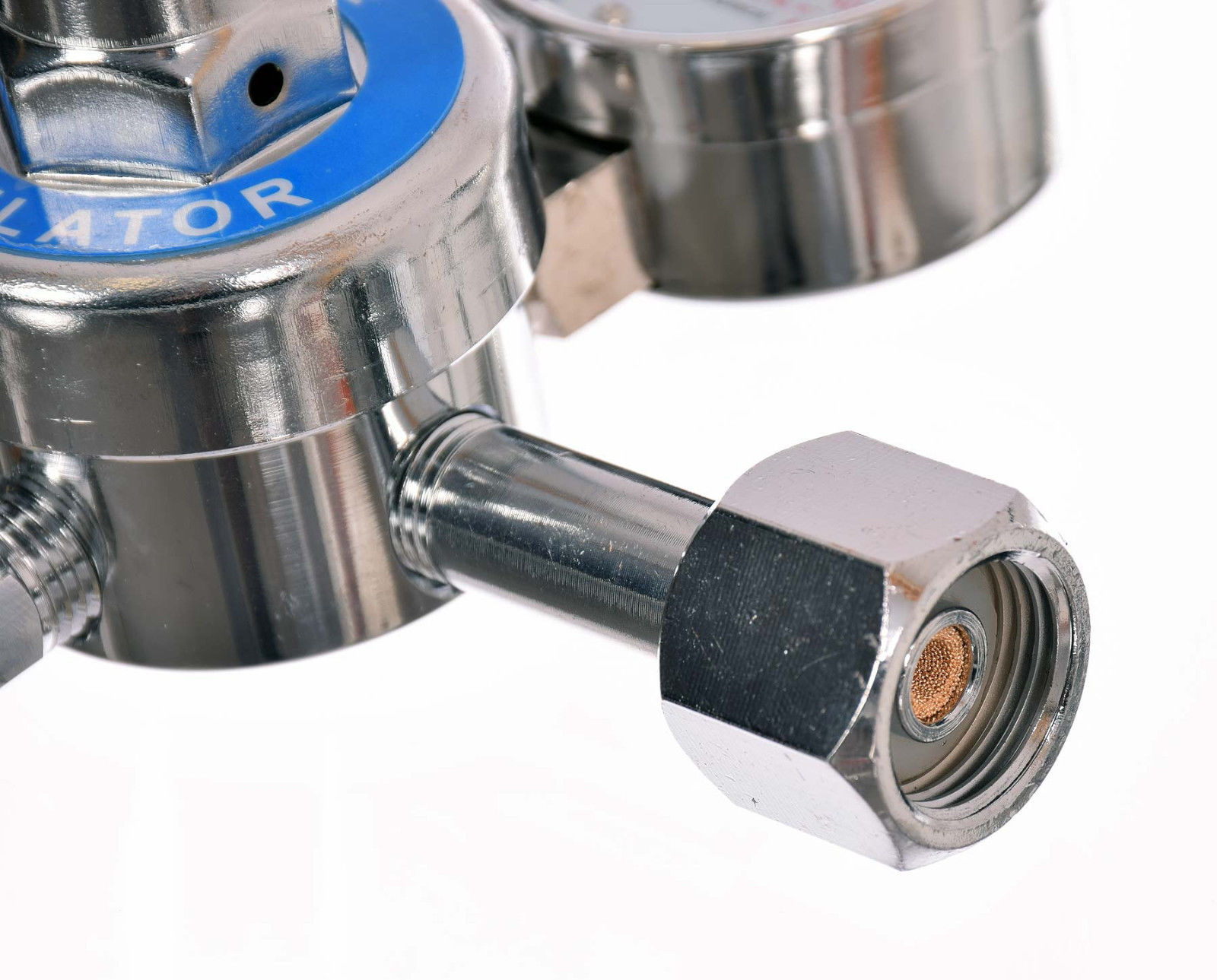

• Thread nuts on the outlet (hose tip) - 6.3 mm Fi 8mm
• Mass - 0.9kg
