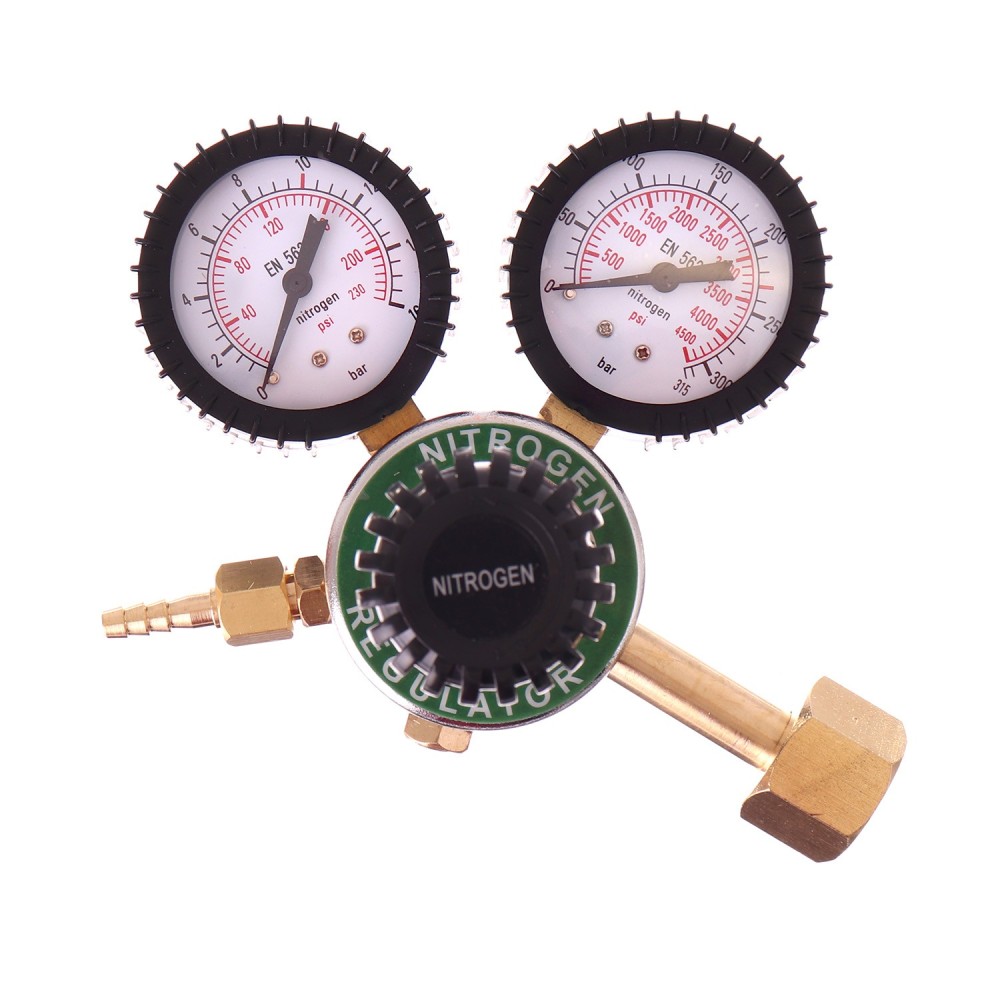

Reducer 2076 to Nitrogen MIDI

Nitrogen reducer

Reducer equipped with readable manometers.

A single-stage cylinder reducer is a redivity of a variable outlet flow adjustment.

The reducer allows to reduce gas pressure from the bottle to the required outlet pressure (working) and provides a constant gas flow value regardless of changes in the inlet pressure. The reducer is equipped with a safety valve, through which, with an increase in outlet pressure, an excess gas from the outlet pressure from the external pressure is allowed.

Technical data:

• Gas type: nitrogen
• Rated inlet pressure: 150 bar
• Range of outlet pressure: 0.5 - 10 bar
• Rated bandwidth: 30 m3 / h
• Thread on the inlet: W24,32x1 / 14
• Thread Nuts on the outlet: G 1/4 '+ 6.3mm connector
• No. Catalog 2076
