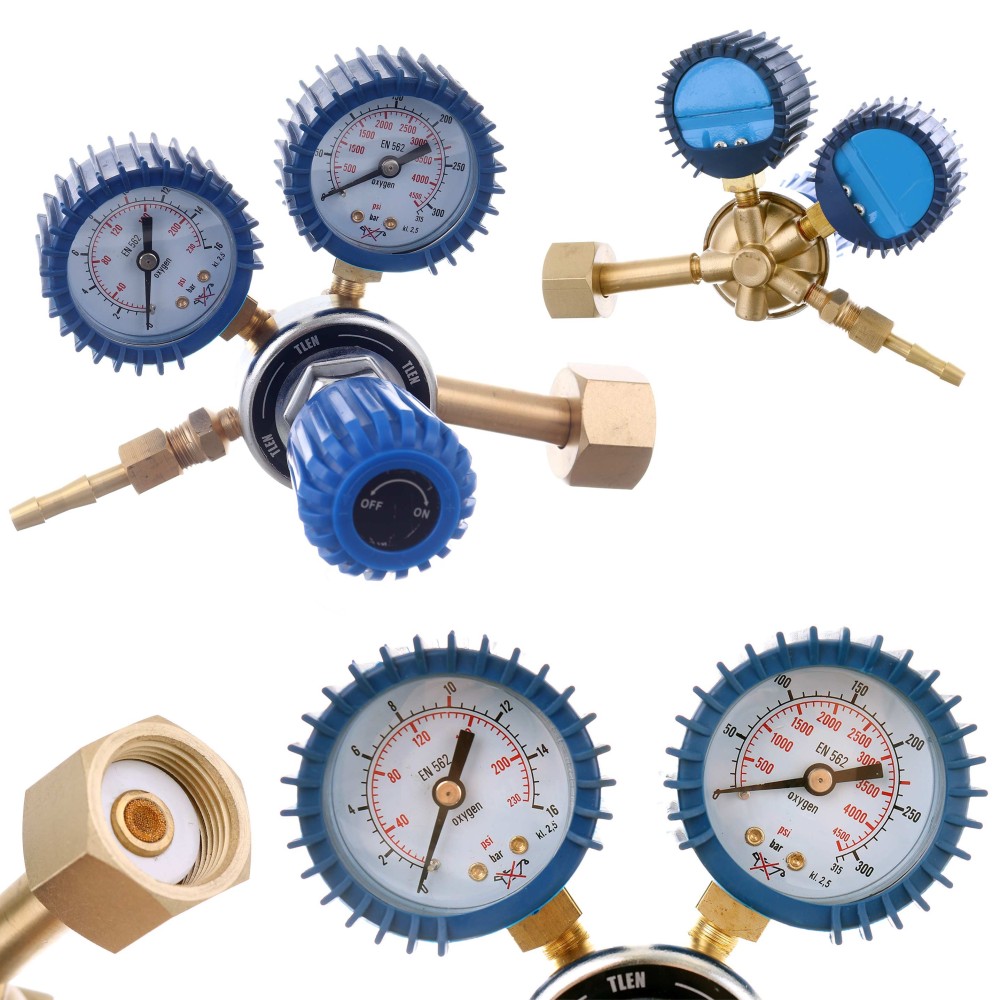

Reducer 2074NS for oxygen mini

Pressure reducer for oxygen cylinder.

A single-line cylinder reducer with a rated inlet pressure 200 bar with an outlet pressure adjustment. Allows you to reduce the pressure of gases taken from the cylinder to the required outlet pressure (working) and ensures self-continuing this pressure at a fixed level independently of changes in the inlet pressure.

It is equipped with a standard oxygen cylinder connection, high pressure gauge to control the contents of the cylinder, a low pressure gauge for gas pressure control on the output.

Equipped with safety valve.

Technical data:

• Rated inlet pressure: 0-200 bar
• Range of outlet pressure: 0.5 - 10 bar
• Diameter of pressure gauges: 50mm
• Rated bandwidth: 30 m3 / h
• Thread at the inlet: 3/4 standard
• Thread nuts on the outlet: G1 / 4 (standard) + outlet connection: 6.3mm (standard)
• Catalog number: 2074NS
