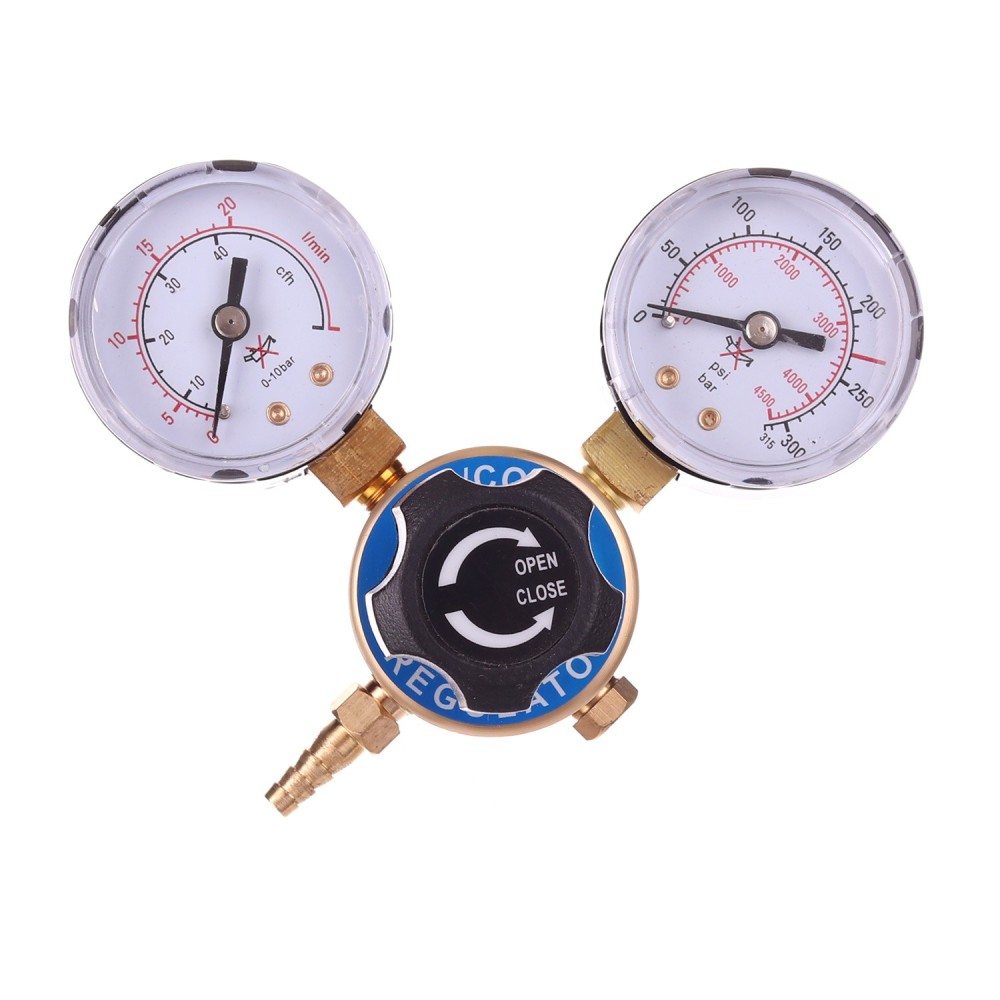

Reduktor 1007 to Argon / CO2 Mini Profi

Reducer for argon, carbon dioxide.

Pressure reducer With a thread matching the cylinder with argon or carbon dioxide (CO2). Most often used in welding during welding migomat, semi-automatic or TIG welding machines that require a gas shield in the form Argon or carbon dioxide. It is equipped with two manometers - the first indicates the pressure in the bottle, the second gas flow per minute.

• The irrigation reducer allows you to lower the gas pressure from the bottle to the required outlet pressure (working).
• Automatically maintains a given working pressure at a fixed level independently of changes in the inlet pressure.
• It is equipped with a safety valve which, with a pressure increase, excess gas is allowed.

Technical data:

• Gas type: Carbon dioxide (CO2), Argon (AR)
• Thread on the inlet: W21.8 x 1/14 (Standard)
• Thread nuts on the outlet: G 1/8 + Snake connector
• Outlet connection: Fi 6.3mm
• Max. Inlet pressure 315 bar
• Max. outlet 6 bar
• Max. flow 35 l / min
