Manufacturer's code:

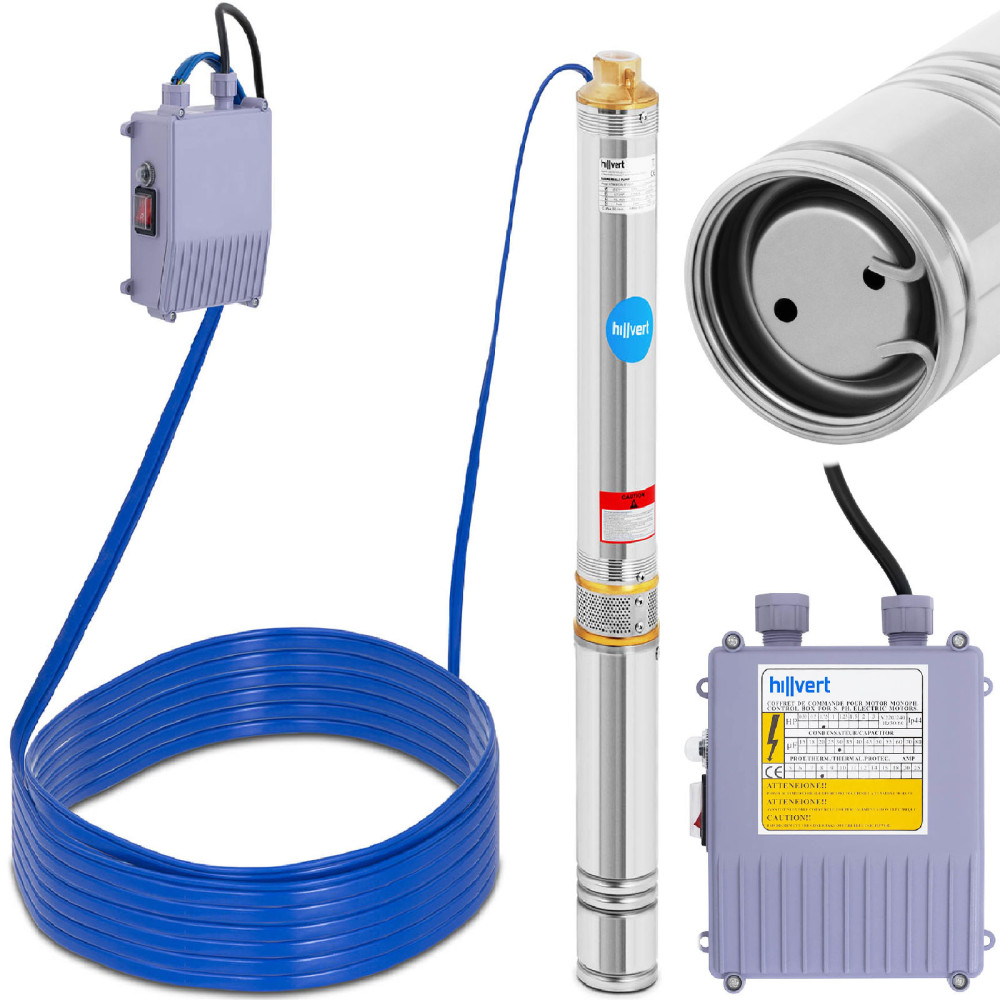

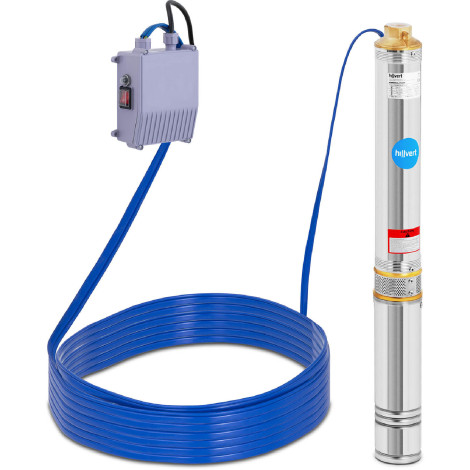

10090123Brand deep pump Hillvert It will work for pumping clean water from deep wells or tanks, when watering plants, filling the aquatic ponds, as well as the water supply of households, water supply or irrigation installations.
The device has efficient
550 W motor, working at speed
2850 rpm. Hermetic protection effectively protects against getting moisture inside and protects him from damage during immersion. Height of lifting water pole on
80 m (counting from the water level to the ground level) allows you to get even from deep wells. Pump flow is

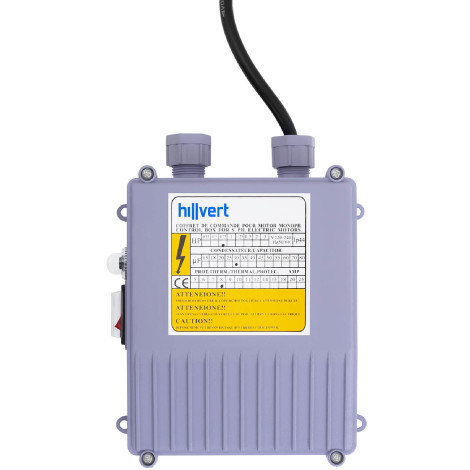

3000 l / h. Easy to use the control box allows remote work with a pump. It has been equipped with a supercurrent switch to prevent damage to the device with possible voltage jumping. The device housing was made of
stainless steel, resistant to corrosion and stains which makes it ideal for constant immersion. The pump has a 20-meter power cord.
Product features: - - Comfortable and simple service - thanks to the control box,
- - Efficient engine - with a power of 550 in ensuring efficiency,
- - Maximum flow - 3000 l / h,
- - Maximum height of lifting water column - 80 m,
- - Stainless steel housing - resistant to corrosion and stains,
Technical parameters: - - Model - Ht-Robson-sp550-80
- - catalog number - 10090123
- - tension - 230 V
- - power - 550 W
- - Total diameter - 3,74 # 8221
- - Max. Lift height of the water column - 80 m
- - Speed - 2580 rpm
- - Max. Flow - 3000 l / h
- - Insulation class - Double insulation
- - IEC protection class - And
- - IP protection degree - Ipx8

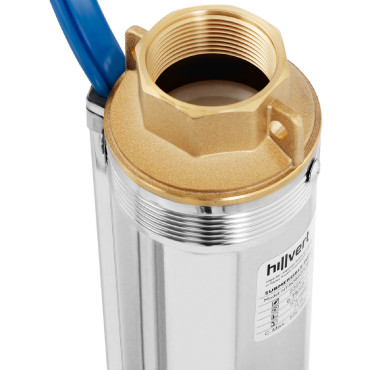

- - water connection size - 1,25 # 8221
- - max. Sand content in water - 0,0025
- - Max. Pumped water temperature - 60deg c
- - Diameter of the mounting hole - 100 mm
- - housing material - Stainless steel
- - Power cord - 20 + 3 m
- - Dimensions (DXSXW) - 85 x 9.5 x 9.5 cm
- - weight - 13.15 kg
- - Dimensions of shipment (DXSXW) - 122 x 12 x 21 cm
- - shipping weight - 15.4 kg
Included: - - immersion pump
- - Control box
- - User manual
