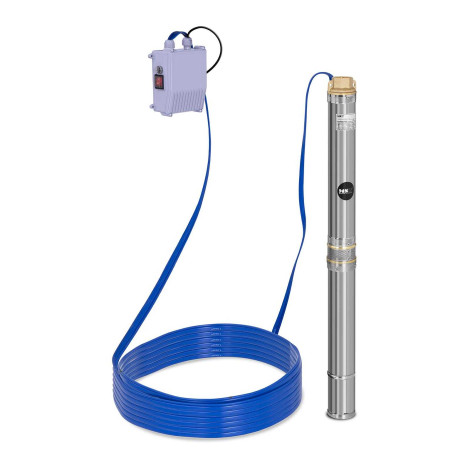

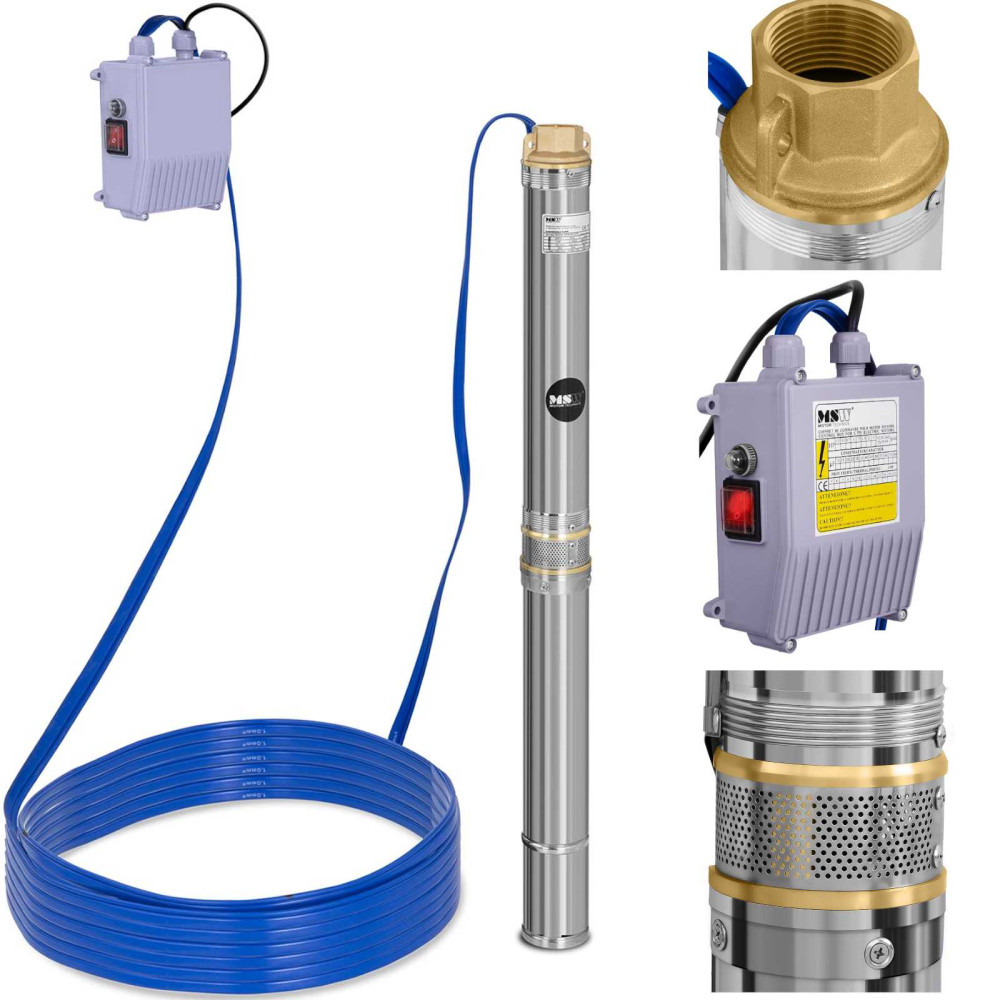

Submersible pump for deep well MSW 3800 l / hour up to 39 m

Manufacturer number: 10060177
Efficient depth of depth MSW About 370 W It will allow you to efficiently pumping water to the surface. The engine is able to achieve Speed 2850 rpm, which guarantees flow 3800 liters per hour. The maximum lifting height of the water column is 39 mThanks to which the device is adapted to work in deep-sea wells.

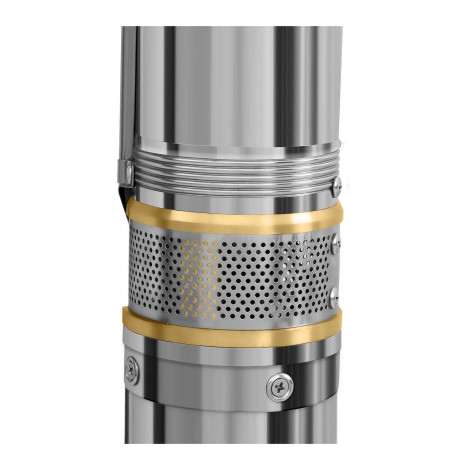

The pump is hermetically closed, which allows you to protect the elements inside the pump before moisture. In addition, the housing was made stainless steelwhich is resistant to corrosion and mechanical damage.

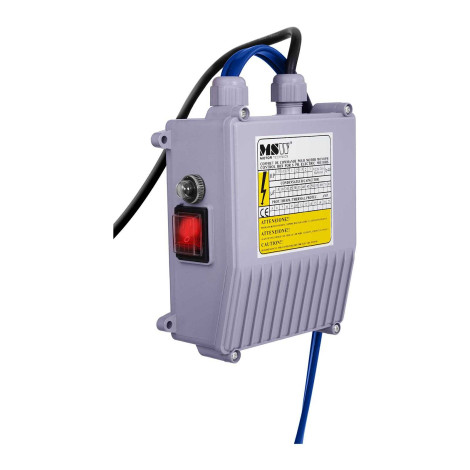

It is responsible for easy operation areControl scale equipped with a overcurrent switch. It prevents any device damage to the voltage jumping. Long 20-meter power cord Provide convenient transfer of the device as needed.
Product features:

• - The functionality of - efficient water pumping from the well to the maximum height of 39 m,
• - Performance - 370 engine in the supply of 3800 l / h,
• - Simple service - an uncomplicated controller,
• - Convenient use - 20-meter power cord,
• - Durability - Housing made of stainless steel.

Technical parameters:

• - Model - MSW-Spp32-037
• - catalog number - 10060177
• - article - New
• - housing material - Stainless steel
• - Rated power - 370w
• - Working power - 500w
• - tension - 230 V / 50 Hz
• - rated current - 3 a
• - Max. Lift height of the water column - 39 m
• - Max. Flow - 3800 l / h
• - Speed - 2850 rpm
• - Protection class - And
• - IP protection degree - Ip68
• - Insulation class - Breakfast
• - Operating mode - S1
• - Number of degrees - 11
• - Diameter of the mounting hole - 75 mm

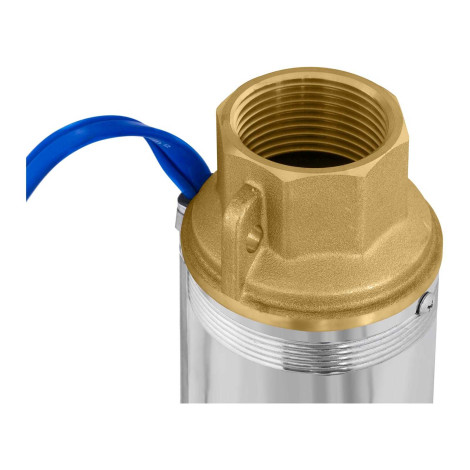

• - water connection size - 1,25 # 8221
• - max. Sand content in water - 0,25%
• - Max. Pumped water temperature - 35deg c
• - Mak. Number of starts per hour - 50
• - Dimensions (DXSXW) - 8 x 7 x 84.5 cm
• - weight - 9.4 kg
• - Dimensions of shipment (DXSXW) - 115 x 20 x 13 cm
• - shipping weight - 11.85 kg

Included:

• - immersion pump
• - EN statement
