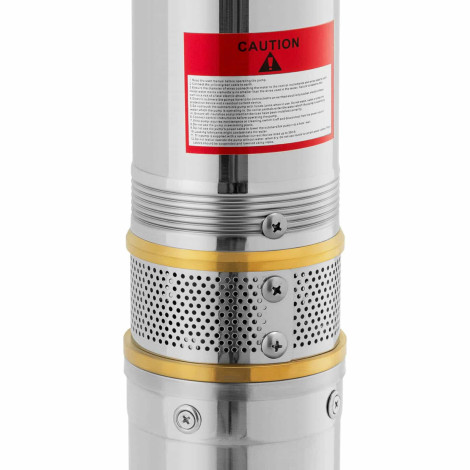

Submersible pump for deep well steel 3000 in 10800 l / h up to 96 m

Manufacturer's code: 10062054
Brand deep pump MSW Allows you to pump water from narrow and deep wells, shafts, tanks or tank. The device works on the depth up to 96 m. An efficient 3000 W motor allows you to work pump at speed 0-2850 rpm and maximum flow rate 10800 l / h. The engine is hermetically sealed and protected against pressure and water. A deep-sea pump is suitable for clean water at temperatures up to 35Deg C. Housing stainless steel It is resistant to corrosion and dirt. Wire 50 m It allows you to work the device even at a greater distance. Distribution box Allows easy pump handling. Correction switch It protects it against damage.
Product features:

• - Reliable operation thanks to the distribution box,
• - strong engine 3000 W,
• - fast pumping Z10800 L / H,
• - Maximum pumping depth 96 m,
• - stainless steel housing resistant to corrosion and dirt.

Technical parameters:

• - catalog number - 10062054
• - article - New
• - Model - MSW-Spp48-220-50
• - Tension [V] - 230
• - Material - Stainless steel
• - Maximum lifting height [m] - 96
• - power [W] - 3000
• - Maximum waterflow [m³/h] - 10,8
• - water flow [l/h] - 10800
• - Power cord [m] - 50
• - Diameter of the mounting hole [mm] - 95
• - Operating mode - S1
• - rated current [A] - 14
• - Rated power [W] - 2200
• - Insulation class - Breakfast
• - Maximum water temperature [deg C] - 35
• - rotational speed [obr./min] - 0-2850
• - IP protection degree - Ip68
• - IEC protective class - And
• - Maximum sand content in water [%] - 0,25
• - Maximum number of starts per hour [h] - 50
• - water connection diameter - 2 "
• - Number of degrees (pump rotors) - 14
• - Dimensions (DXSXW) [cm] - 136 x 9.5 x 9.5
• - weight [kg] - 30,8
• - Dimensions of shipment (DXSXW) [cm] - 174.5 x 27.5 x 12
• - shipping weight [kg] - 35

Included:

• - Submersible pump
• - User manual
