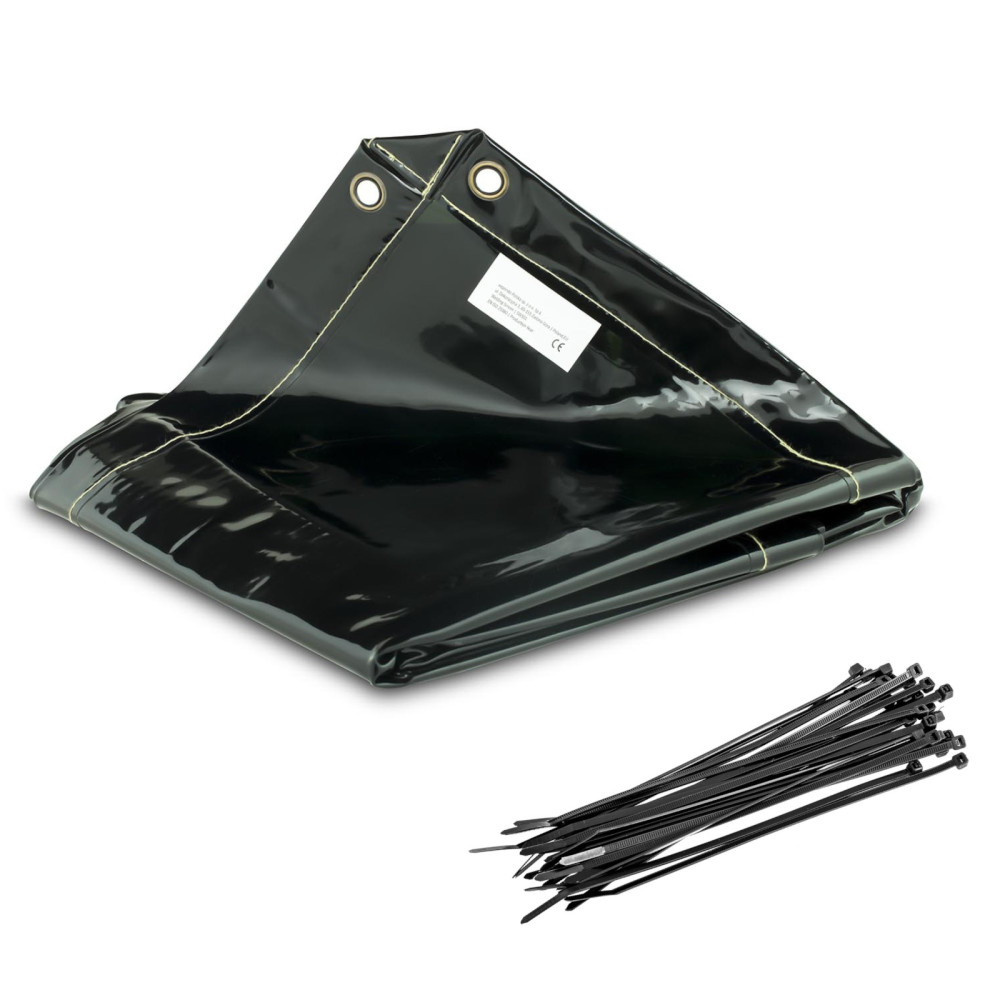

Curtain screen Welding curtain 239x175cm Stamos SWS01

Manufacturer name: Sws01
Presented product from Stamos Welding Group to Curtain for the welding screen. Dimensions 239 x 175 cm ensure effective protection against the harmful effects of electric arc radiation, sparks and spawning of welded elements, separating the welder's working area from the rest of employees. The curtain was made of vinyl resistant to UV radiation. This material with a thickness of 0.4 mm was stung with fireproof threads from Kevlar. The SWS01 model is compatible with EN ISO 25980 required in the BHP procedures.
Features and functions:
- functionality - large protective surface 239 x 175 cm
- Durability - vinyl curtain steveled with Kevlar thread
- Easy fastening - Acrossperation around the circuit
- Safety - compliance with the EN ISO 25980 standard
- Note: The product does not contain a frame
Technical parameters:

• - Model - Sws01
• - catalog number - 10020607
• - article - New
• - Material - Vinyl
• - seams - Strong fireproof threads
• - light permeability based on light source A> 0.0001 - 0,93%
• - spectral penetration coefficient for wavelength 210nm≤λ≤313nm - <0.002%
• - Spectral penetration coefficient for wavelength 313nm≤λ≤400nm [%] - <3
• - Hazard level <1 (400nm≤λ≤1400nm) - 0,6
• - light permeability based on the light source and after exposure to UV rays - 0,63%
• - relative change in light permeability after exposure to UV rays - 29,6%
• - Hazard level <1 (400nm λ≤1400nm) after exposure to UV rays - 0,59
• - moderate resistance to UV radiation - So
• - fire resistance - So
• - Spacing between flights - 304 mm
• - material thickness - 0.4 mm
• - length - 230 cm
• - width - 175 cm
• - Dimensions (DXSXW) - 234 x 168 x 0.5 cm
• - weight - 2.38 kg
• - Dimensions of shipment (DXSXW) - 39 x 36 x 3 cm
• - shipping weight - 2.43 kg

Included:
- Welding curtain
