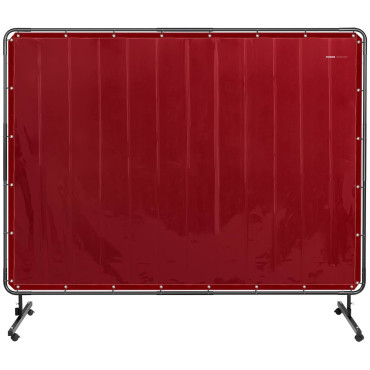

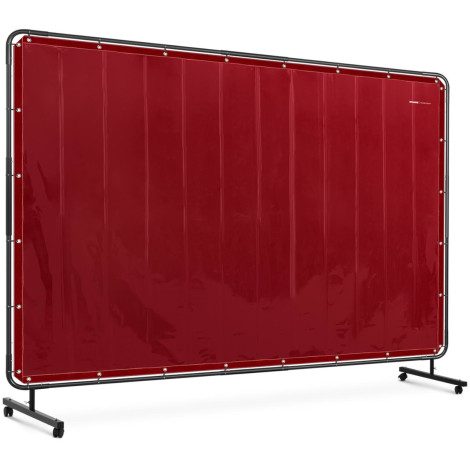

Screen Curtain protective welding with frame on wheels 239 x 175 cm - red

€113.93
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10021109
Welding curtain It is a product designed to protect persons from the welding arc light, sparks and splashes. Big size effective separates the workspace.
The screen was made of vinyl with thickness 0.4 mmwhich is non-flammable and resistant to UV rays. There are on the entire circuit mounting mesh. The screen has been equipped with high quality stitches with strong fireproof threads. The stability of the screen provides a solid steel base with dimensions of 240 x 180 cm. The diameter of the pipes is 22 mm. 4 Circles provide mobility curtain. The product has a certificate of compliance with the standard EN ISO 25980 Required in health and safety procedures.
Product features:
  • - Resistance - vinyl with a thickness of 0.4 mm resistant to UV and flammable rays,
  • - Durability - seams made of strong heat resistant threads,
  • - Protection - a large area size 239 x 175 cm,
  • - Safety - in accordance with EN ISO 25980,
  • - Mobility - a solid frame on wheels,
  • - Easy fastening - There are a cross-links for fixing on the frame.

Technical parameters:
  • - Model - Sws04
  • - catalog number - 10021109
  • - article - New
  • - Material - Vinyl
  • - Material of wheels - Plastic
  • - Type of wheels - Torship 360deg
  • - Roure pipe diameter - 22 mm
  • - seams - Strong fireproof threads
  • - light permeability based on light source A> 0.0001 - 0,0093
  • - spectral penetration coefficient for wavelength 210nm≤λ≤313nm - <0.002%
  • - Spectral penetration coefficient for wavelength 313nm≤λ≤400nm [%] - <3
  • - Hazard level 1 (400nm≤λ≤1400nm) - 0,6
  • - light permeability based on the light source and after exposure to UV rays - 0,0063
  • - relative change in light permeability after exposure to UV rays - 0,296
  • - Hazard level - 59
  • - moderate resistance to UV radiation - So
  • - fire resistance - So
  • - Spacing between flights - 304 mm
  • - material thickness - 0.4 mm
  • - Curtain dimensions - 239 x 175 cm
  • - Refuge dimensions - 240 x 180 cm
  • - Dimensions (DXSXW) - 66.00 x 240,00 x 196.00 cm
  • - weight - 8.70 kg
  • - Dimensions of shipment (DXSXW) - 23.50 x 120,00 x 8.00 cm
  • - shipping weight - 9.00 kg

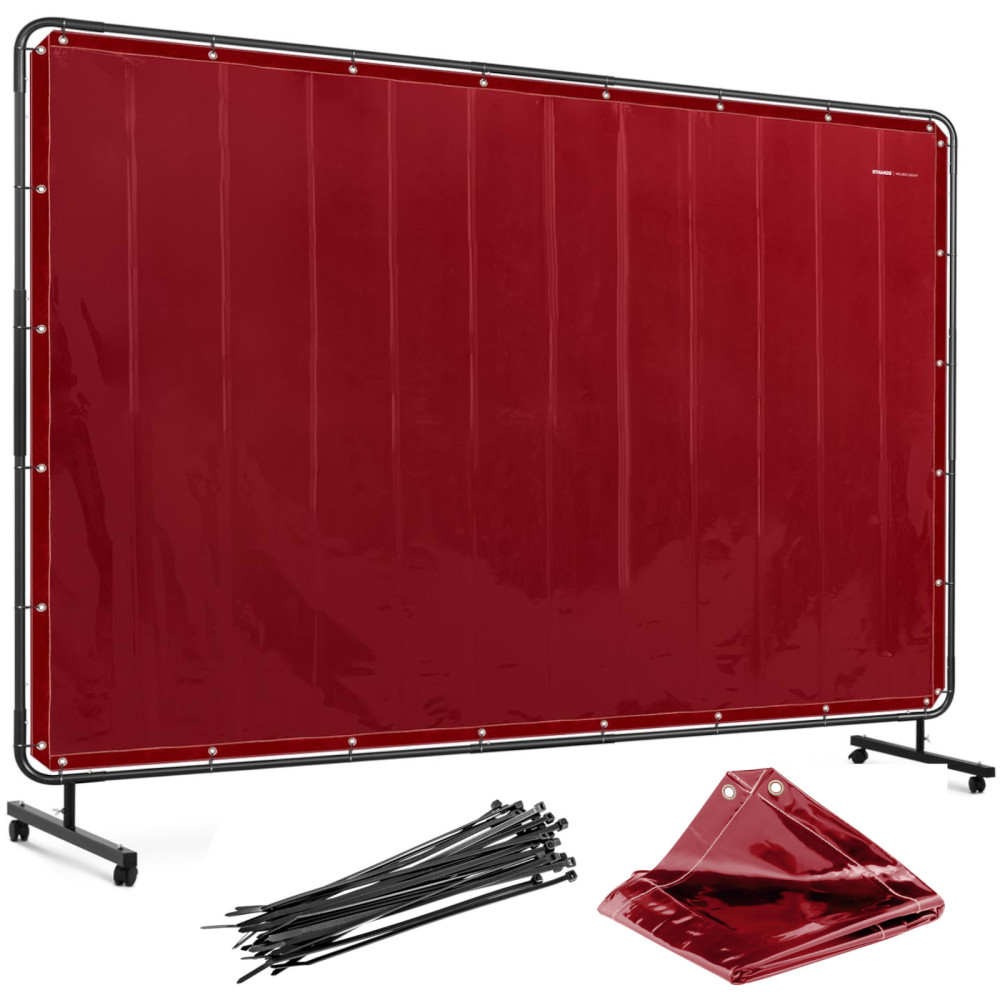

Included:

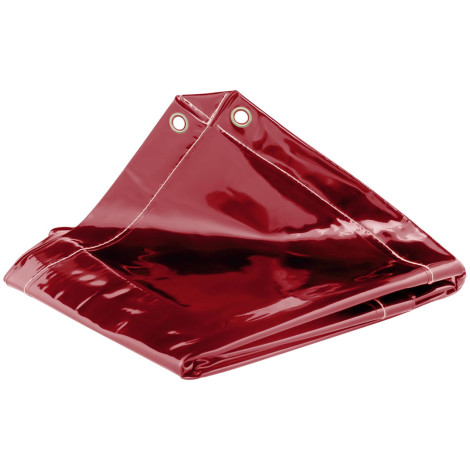

  • - Welding curtain

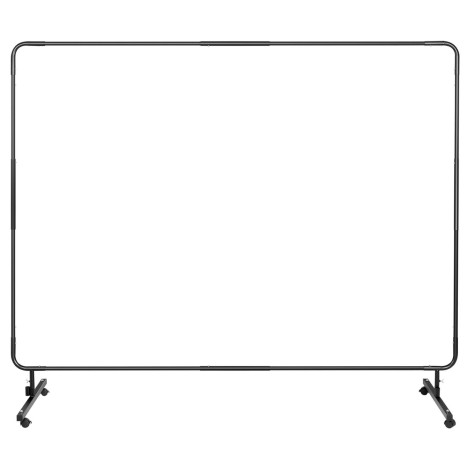

  • - frame
  • - Instructions
