Manufacturer's code:

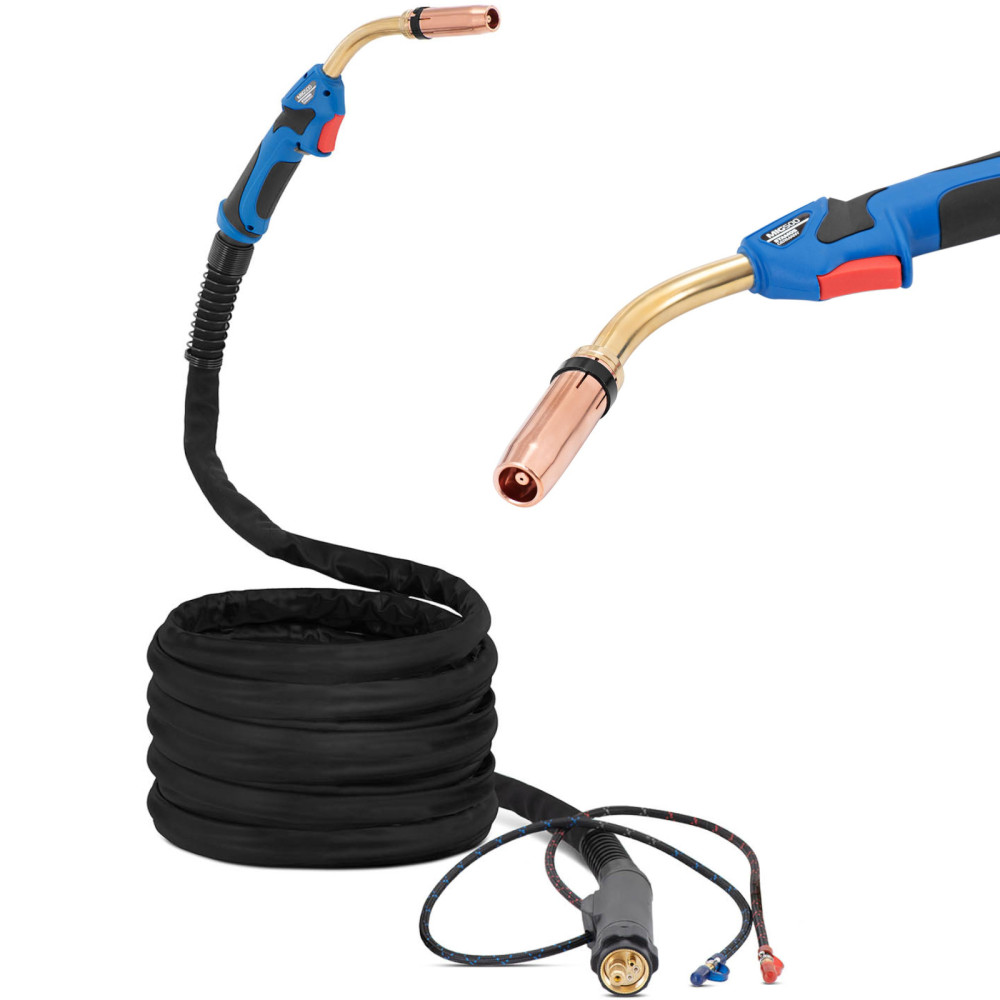

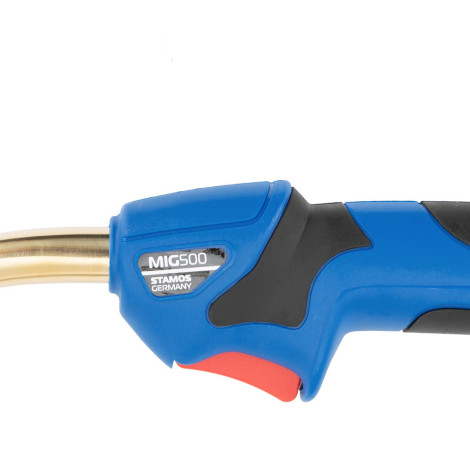

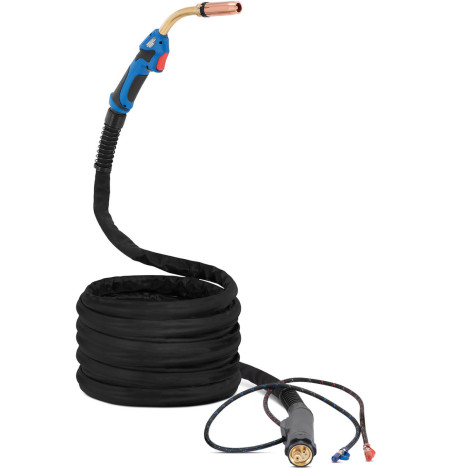

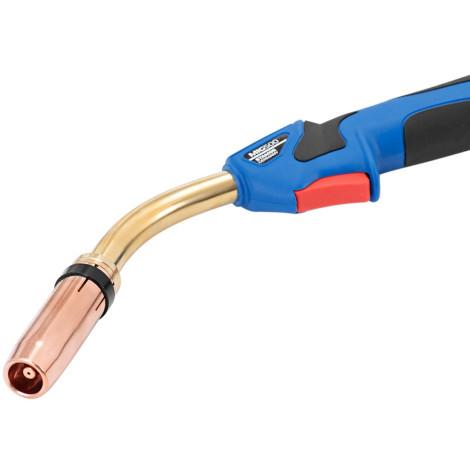

10021315 Welding handle for Mountain Mountain Mountaina. Stamos Germany MIG / MAG with a central Euro plug, probably lies in the hand and the protective housing withstands heavy work. At the gas flow
10-20 l / min The burner creates a stable bow, creating high-quality welds. It is possible to connect a water cooling that will prevent overheating of the burner at a high current. The handle tolerates the intensity to
500 A for protective gas
Co2 or
450 a For mixed gas. The torch tension is
113 V and the length wire
5 m Provides freedom of movement.
Product features: - - Precise MIG500 welding handle for MIG / MAG welding,
- - the working cycle at maximum power is 100%,
- - ideal for welding works up to 500 and with CO2 and 450 A with a mixed shielding gas,
- - Gas flow for welding 10-20 l / min and cooling the burner,
- - 5 m long wire provides comfort and freedom of work,
Technical parameters: - - catalog number - 10021315
- - article - New
- - Model - Swt500mig5
- - size [mm] - 5 m x 16 mm²
- - Welding method - MiG / mag
- - Rated working cycle [%] - 100
- - shock voltage [V] - 60-70
- - wire diameter [mm] - 1.2-1.6
- - Rated voltage [V] - 113
- - shielding gas flow [l/min] - 10 - 20
- - Coverage gas type - CO2 / Mix
- - Rated entrance current [A] - 500 A CO2 / 450 A Mix
- - Dimensions (DXSXW) [cm] - 500 x 3.5 x 5
- - weight [kg] - 4.3
- - Dimensions of shipment (DXSXW) [cm] - 50 x 38 x 7.5
- - shipping weight [kg] - 4.7
Included: - - Welding handle
- - User manual
