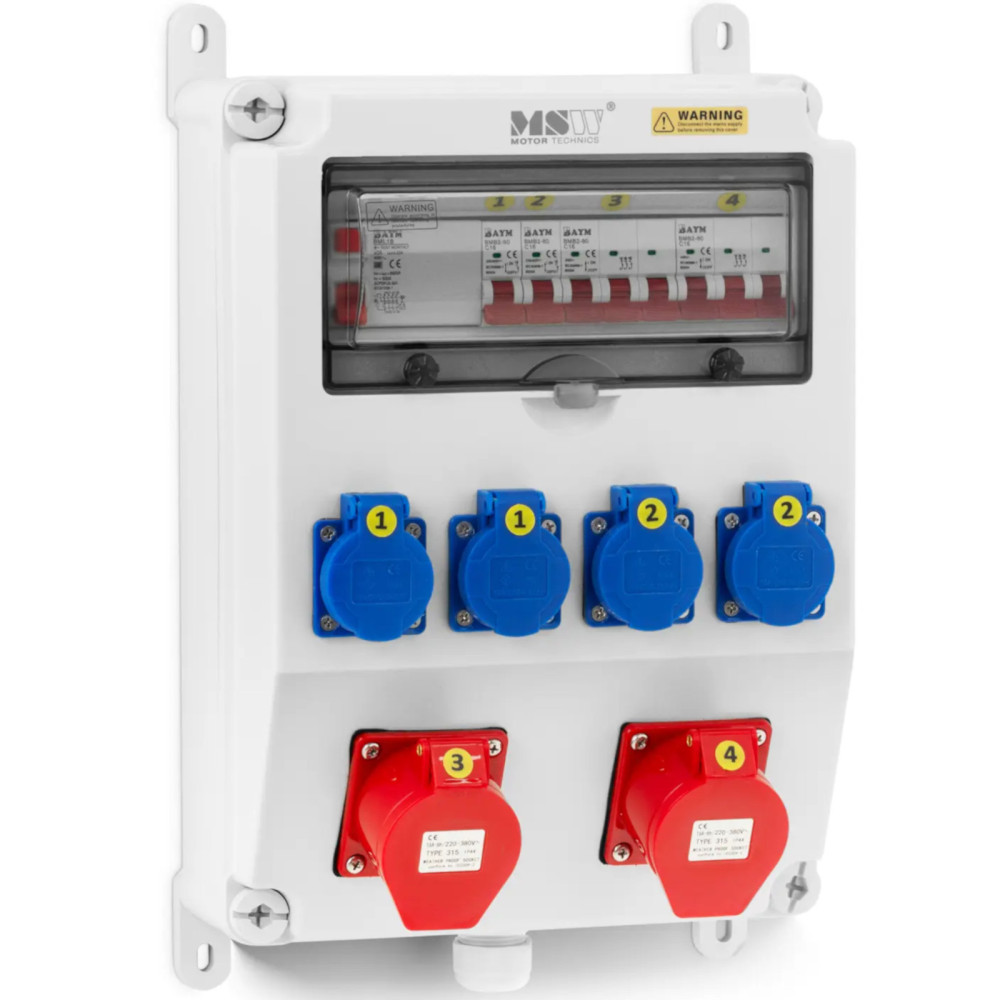

Electrical switchgear 4 x Schuko Differential cutter 4 x installation

Manufacturer's code: 10062622
Brand electrical switchgear MSW It offers a versatile solution for a wide range of requirements. It was equipped with Four SCHUKO slots, two CEE slots, Differential cutter and four installation switches. They comprehensively meet the power and safety needs. The box is suitable not only for the distribution of electricity, but also to secure circuits, organize and secure cables and separating various installations. The surface switchgear was made of high-quality ABS plastic, which is very durable, durable, tight and resistant to moisture. The self-closing hinged cover and a waterproof plastic switch cover provide additional security. IP65 protection degree for housing and IP44 for sockets ensures reliable protection against dust and water. This means that the switchgear can also be used in demanding conditions. It will work both inside and outside. It is particularly well suitable for use on construction sites. A practical design with several mounting holes makes it easier to attach it to the wall.
Wall-tone offers:

• - 4 Schuko slots (230 V, 16 A, blue, ABL, IP54)
• - 2 CEE slots (400 V, 16 a, 5-pin, red, ABL, IP44)
• - Differential current circuit breaker (40 a, 30 mA, 5-pin)
• - 2 Installation switches (1P LS C16 A)
• - 2 Installation switches (3P LS C32 A)

Product features:

• - 4 SCHUKO slots, 2 CEE slots, Differential current circuit breaker and 4 Installation switches,
• - suitable for distribution of power, to protect circuits, organize and secure cables and separating different installations,
• - the ability to use the switchgears in rooms and outside, for example for use on construction sites,
• - surface switched switch made of high-quality ABS plastic with IP65 protection (housing) and IP44 (sockets),
• - The electrical distribution box has several mounting holes to facilitate attaching to the wall.

Technical parameters:

• - catalog number - 10062622
• - article - New
• - Model - MSW-Wpd-4v2p
• - Material - ABS, PP, steel, copper, PA66
• - Color - Gray
• - Tension [V] - 220
• - IP protection degree - Ip65
• - attached cap - 3-pin / 5-pin
• - operating temperature range [deg C] - -35 - 40
• - Dimensions (DXSXW) - 44 x 27.5 x 18 cm
• - weight - 4.04 kg
• - Dimensions of shipment (DXSXW) - 31 x 40.5 x 20.7 cm
• - shipping weight - 4.75 kg

Included:

• - electrical switchgear
