Electric three-phase asynchronous engine 2950 rpm 230/400 V 5.5 kW

€343.32
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10062812

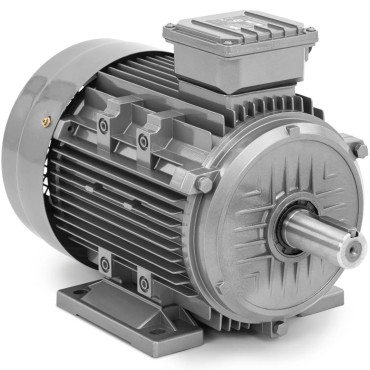

Electric Motor asynchronous brand MSW About 5.5 kW and a speed of 2950 rpm will work perfectly in industrial applications. A three-phase engine with a 230/400 V working voltage range will even deal with many hours of tasks. Thanks to the IE3 efficiency class, it also creates economical energy consumption and invariably high efficiency. Light aluminum housing and a solid construction made of powder-painted steel will ensure maximum resistance to mechanical loads. A 38 mm diameter and 80 mm length will provide precise power transfer and torque to 18.1 Nm. The induction engine has an IP54 protection class, making it protected from dust and water splashes. You can easily use it even in demanding environments. Integrated protection against overheating in the form of a fan will enable continuous operation without the risk of performance decrease. High-quality bearings reduce friction and heat generation, which will provide a longer engine life and reduce the frequency of maintenance. The copper winding will also improve thermal conductivity and provide constant performance. Cable gland and junction box will enable safe installation and stable work. So they will allow you to use an electric motor for many years in various ways.
Product features:
  • - an asynchronous electric motor with 5.5 kW and IE3 efficiency class that ensures effective and at the same time energy-saving work at 2950 rpm,
  • - the three-phase motor is supplied with a voltage of 240 or 400 V and has a standard shaft (38 mm diameter and a length of 80 mm),
  • - lightweight aluminum design and large legs will provide a secure position and a quiet operation of the electric motor,
  • - an IP54 induction motor with a cooling cooler protecting against overload and a connection box and a cable gland that facilitates assembly,
  • - Thanks to bearings and copper windings, the three-phase motor IE3 will be very good and it will reach excellent efficiency.

Technical parameters:
  • - catalog number - 10062812
  • - article - New
  • - Model - MSW-Eem-ad02
  • - frequency [Hz] - 50
  • - Material - Aluminum alloy, powder coated steel
  • - Color - Gray
  • - Tension [V] - 230/400
  • - IP protection degree - Ip54
  • - current [A] - 13
  • - frame size [mm] - 132
  • - torque [Nm] - 18.1
  • - Nominal speed [obr./min] - 2950
  • - efficiency [%] - 89.2
  • - engine power [KM] - 7.5
  • - Power factor - 0,78
  • - Insulation class - F
  • - EEI (Energy Coefficient) - Ie3
  • - shaft length - 80 mm
  • - shaft diameter - 38 mm
  • - Maximum output power - 5.5 kW
  • - noise level - 79.5 DB
  • - Dimensions (DXSXW) - 48 x 25.5 x 32 cm
  • - weight - 41.85 kg
  • - Dimensions of shipment (DXSXW) - 51 x 29 x 36 cm
  • - shipping weight - 45.6 kg

Included:
  • - electric motor
