Manufacturer's code:

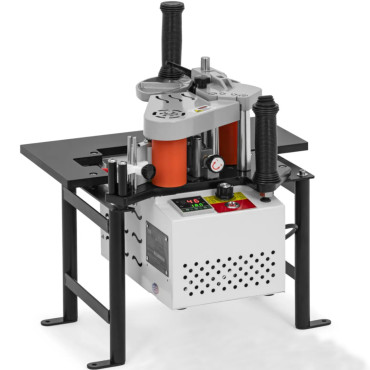

10062835Mobile edge veneer MSW It will allow to glue simple or curved elements with concave or convex edges. A compact and efficient device will allow you to get a perfect finish. Due to adjustable speed and temperature, this model will provide a wide range of applications.
The veneer will handle PVC, ABS and veneer discs. It will also be checked for machining MDF and chipboard. The veneer for furniture is as compact that it can be used stationary on a small surface or mobile. You can mount the machine on the on-site use on the basis. You can also dismantle the model and move it after the workpiece as a manual device. Adjustable temperature will ensure optimal gluing of different edges.
Depending on the material, you can select a working temperature from 120 to 180DEG C. This will prevent the periphery damage due to overheating or weak adhesion due to too low temperatures.
Thanks to the 1000 heating element, the machine quickly warms up the granules of the hot melt adhesive and it will be quickly ready for use. At moderate feed speed up to 5 m / min, the veneer will guarantee high-quality effects without material and error shifts. The speed is set to 0.5 m / min to evenly glue even complicated edges.
The permissible edge thickness is from 0.3 to 3 mm.Product features: - - the edge jacket is suitable for MDF, ABS and PVC boards,
- - the mobile veneer is carried out around the workpieces as a manual device,
- - furniture veneer with an intuitive display enabling temperature adjustment in the range from 120 to 180DEG C,
- - the speed of feeding the jacks in the range from 0.5 to 5 m / min allows obtaining precise effects depending on the material,
- - A small veneer sticks outskirts with a thickness of 0.3 to 3 mm on both sides.
Technical parameters: - - catalog number - 10062835
- - article - New
- - Model - MSW-Edge-l1ag
- - frequency [Hz] - 50/60
- - Gluing method - Bonding
- - Material - ABS, aluminum alloy, steel
- - Color - White
- - Tension [V] - 110 - 220
- - Speed [m/min] - 0.5 - 5
- - power [W] - 1000
- - veneer thickness [mm] - 0.3 - 3
- - Work temperature range [deg C] - 120 - 180
- - Dimensions (DXSXW) - 35.5 x 40 x 45 cm
- - weight - 13.7 kg
- - Dimensions of shipment (DXSXW) - 38 x 37 x 43 cm
- - shipping weight - 15.2 kg
Included: - - edge jacket
- - 3 Allen keys
- - 2 flat keys
