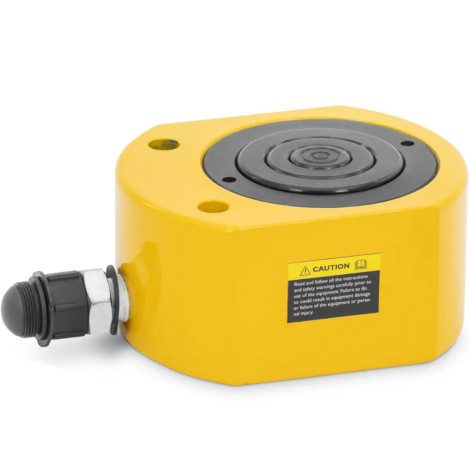

Double-sided hydraulic cylinder Actuator 75 mm 50 t

€152.47
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10062825

Exceptionally flat hydraulic hydraulic actuator MSW A height of only 70 mm and a piston stroke 75 mm is an ideal solution for working under limited conditions. The hydraulic cylinder offers an impressive load capacity: the smallest piston with a diameter of 26 mm will force 5 t, middle 46 mm capacity 20 t, while the largest 70 mm in diameter will be a load of up to 50 tonnes. The hydraulic hydraulic actuator will precisely raise and withdraw the piston with a working pressure of up to 700 bar, which makes it extremely versatile. It will work in construction, industry or other demanding tasks. 3/8 '' (NPT) connector for a quick and secure connection will allow various hydraulic equipment. This will limit this downtime and simplify integration with existing hydraulic systems. The high-quality steel pump has a protective plastic coating. It corresponds to excellent resistance to wear and corrosion even in demanding conditions. The hydraulic actuator is also equipped with six seals that provide additional safety and durability - ideal for intensive high pressure uses.

Product features:
  • - an extremely flat hydraulic actuator with only 70 mm height and 75 mm stroke are ideal for operation in tight places,
  • - hydraulic cylinder 5 t capacity on a piston with a diameter of 46 mm, 20 t on a piston 20 mm and 50 t on a piston 70 mm,
  • - two-sided hydraulic actuator to 700 bar with lifting and reversing function to many tasks,
  • - hydraulic piston has a corrosion-resistant surface that protects against environmental influences and extends life,
  • - Fast and secure assembly of the hydraulic lifting actuator thanks to 3/8 "(NPT) threaded connector.

Technical parameters:
  • - catalog number - 10062825
  • - article - New
  • - Model - MSW-Hjs-ms50
  • - Material - Alloy steel, powder coated steel
  • - Color - Yellow
  • - load - 5 t (26 mm) / 20 t (46 mm) / 50 t (70 mm)
  • - jump height [mm] - 25 + 30 + 20
  • - head diameter [mm] - 26/46/70 mm
  • - connector type - 3/8 '' NPT
  • - Working surface [cm] - 56,7
  • - oil tank capacity - 113 ml
  • - stroke - 75 mm
  • - Maximum working pressure - 700 bar
  • - Cylinder height - 70 mm
  • - Dimensions (DXSXW) - 19 x 12 x 7 cm
  • - weight - 7.9 kg
  • - Dimensions of shipment (DXSXW) - 23 x 14 x 10 cm
  • - shipping weight - 8.5 kg

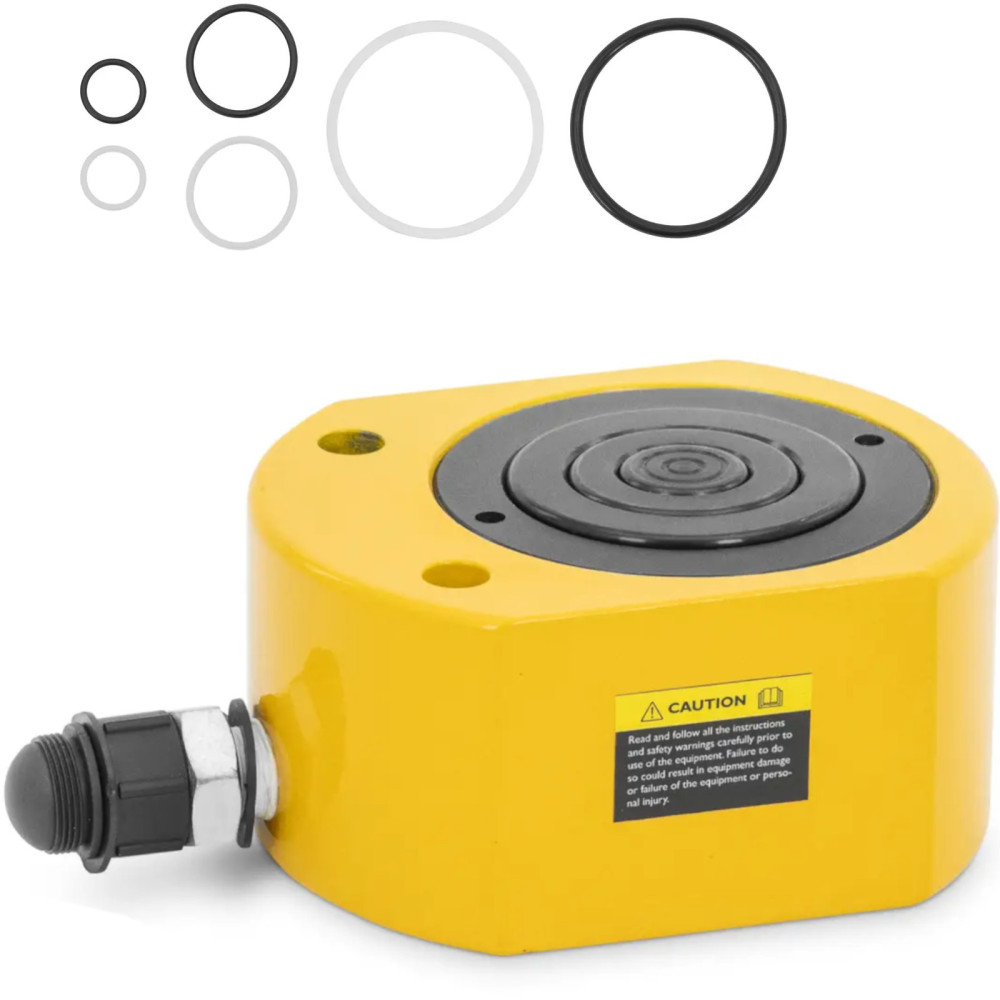

Included:
  • - hydraulic actuator
  • - 6 gaskets
