Laser Laser Head for Cut Engraving 10 W 27 L / min

€271.22
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10062662
Engraving laser package with pneumatic support (AIR ASSIST) It will offer a comprehensive solution for both these tasks. Set of Steinberg Systems It contains not only a laser module with AIR ASSIST, but also a protective cover, a fixed focal plate and all connection and assembly accessories for fast, as well as an uncomplicated installation. The system has a precise nozzle supporting a laser head with an impressive 27 l / min air flow at a pressure of 27 Pa. Not only the material cools, but also will remove dust and vapors, which will guarantee accurate results. The laser itself has a huge power of 10 W and generates 450 nm waves. Such a short length will allow not only quickly engraved at a speed of up to 1 m / min, but also precisely cut to 10 cm / min with a focus width of 45 mm. Thanks to the attached protective cover, a laser without protective goggles is supported and safely supported. The versatility of the laser module and simplified service thanks to a fixed focal plate will allow you to quickly and without a wide range of materials. You can use it for plywood, acrylic, MDF, wood and paper on the skin, bamboo, plastic, rubber, aluminum, and even stainless steel. Allows you to cut elements with a thickness of up to 8 mm (plywood). A complete package can be connected to ordinary engraving machines and CNC milling machines, which will facilitate integration with work environments and enable trouble-free use.
Product features:
  • - Air Assist engraving laser (Air Assist), Laser protective cover, constant focusing plate and all connections and assembly accessories,
  • - the assistive nozzle on the laser module cools the material at a speed of 27 l / min, removing dust and vapors, thus guaranteeing clean results,
  • - a blue laser with a wavelength of 450 nm engraved at a speed of up to 1 m / min and cuts at a speed of up to 10 cm / min (in each case with a focus width of 45 mm),
  • - using a firing laser you will process a lot of materials such as plywood, acrylic, MDF, wood, paper, leather, bamboo, plastics, rubber, aluminum, stainless steel up to 8 mm thick,
  • - Fits multiple devices, such as laser engravers or CNC milling machines thanks to compact size and modular structure.

Technical parameters:
  • - catalog number - 10062662
  • - article - New
  • - Model - SBS-Lem-40ml
  • - Material - Rubber, aluminum alloy
  • - Color - Black
  • - Tension [V] - 110 - 230
  • - light colors - Blue
  • - power [W] - 20
  • - Maximum speed - Cutting speed 120 mm / min (at a focus width of 20 mm)
  • - Voltage / Ampery output - 3-pin (12 V, GND, PWM)
  • - Laser power - 10000
  • - destiny - For air compressor: ≥0,027 kpa / 27 l / min
  • - outer diameter of the air hose [mm] - 8
  • - Input voltage [V] - 12 (laser)
  • - Maximum engraving speed [mm/min] - 1000
  • - Inner diameter of the air nozzle [mm] - 3.5
  • - destiny - Plywood, acrylic, MDF, wood, paper, leather, bamboo, plastic, rubber, aluminum, stainless steel, etc.
  • - outer diameter of the air nozzle [mm] - 6
  • - Laser wave length [nm] - 450
  • - Power cord - 1.5 m
  • - Maximum flow - 30 l / min
  • - noise level - 45 dB
  • - air pressure diameter - 6 mm
  • - material thickness - 8 mm
  • - Dimensions (DXSXW) - 17 x 12 x 7 cm
  • - weight - 1.5 kg
  • - Dimensions of shipment (DXSXW) - 29 x 18 x 14 cm
  • - shipping weight - 1.9 kg

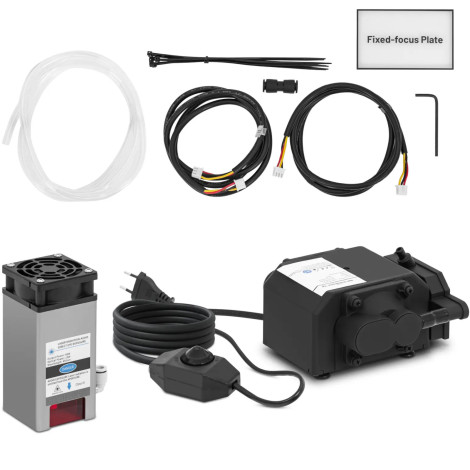

Included:
  • - Engraving laser
  • - Connecting cable (cross)
  • - Connecting cable (continuous)
  • - Gas hose
  • - Permanent focusing tile
  • - Adapters
  • - Spacer washer
  • - Mounting accessories
