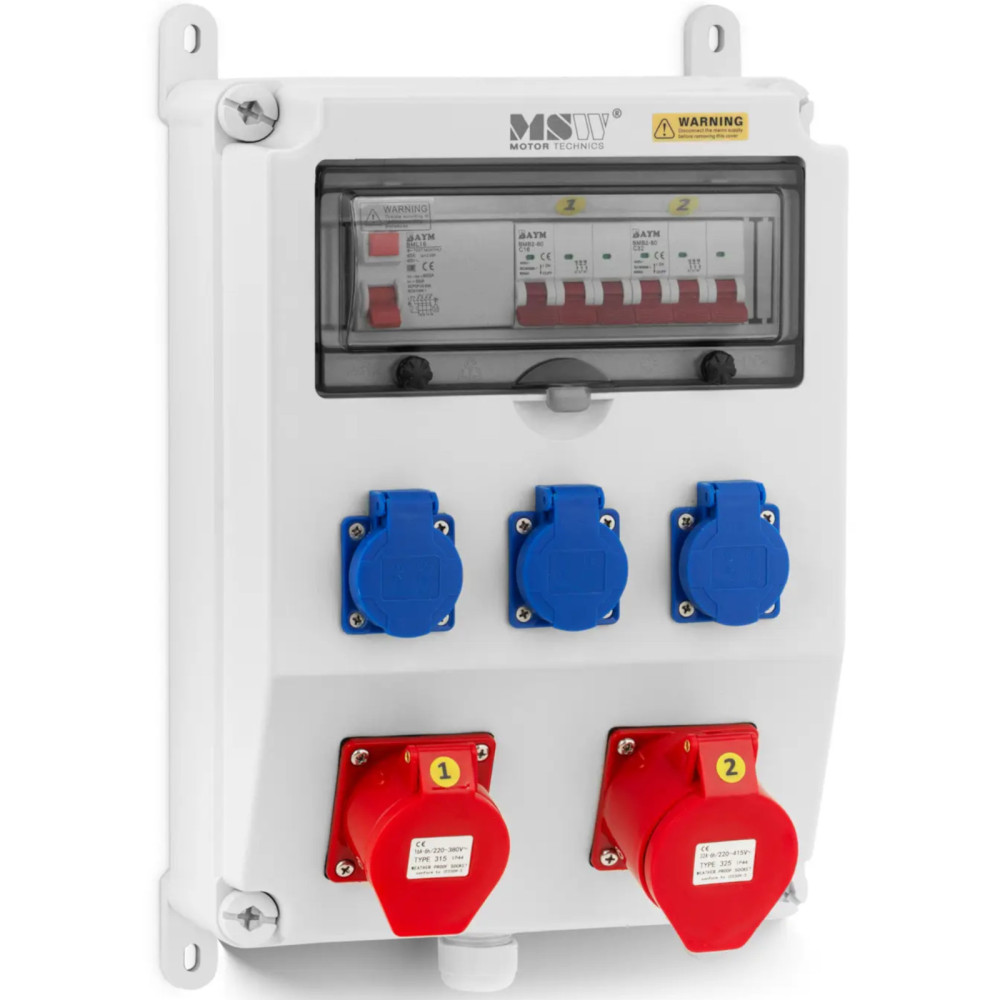

Electrical switchgear 3 x Schuko 2 x CEE Differential cutter 2 x installation

Manufacturer's code: 10062620
Comprehensive electrical switchboard brand MSW It offers a versatile solution for a wide range of requirements. It was equipped with Three Schuko slots, Two cee slots, Differential current circuit breaker and two installation switches. They comprehensively meet the power and safety needs. The switchgear is suitable not only for current distribution, but also to protect circuits, organize and secure cables and separating various installations. It was made of high quality ABS plasticWhich is very durable, durable, tight and resistant to moisture. The self-closing cover on hinges and a waterproof plastic switch cover ensure its additional security. IP65 protection degree for housing and IP44 for sockets ensures reliable protection against dust and water. This means that the box can also be used in demanding conditions. So it will work both inside and outside. It is particularly well suitable for use on construction sites. The switchgear has Mounting holesWhich facilitate attaching it to the wall.
The wall distributor offers:
- 3 Schuko slots (230 V, 16 A, blue, ABL, IP54)
- 2 CEE slots (400 V, 16 A and 32 A, 5-Pin, Red, ABL, IP44)
- Differential current circuit breaker (40 a, 30 mA, 5-pin)
- 2 Installation switches (3P LS C16 A and 3P LS C32 A)
Product features:

• - electrical switchgear with 3 SCHUKO slots, 2 Sockets CEE, Differential circuit breaker and 2 installation switches,
• - suitable for distribution of power, to protect circuits, organize and secure cables and separating different installations,
• - the ability to use the switchgears in rooms and outside, for example for use on construction sites,
• - surface switched switch made of high-quality ABS plastic with IP65 protection (housing) and IP44 (sockets),
• - The electrical distribution box has several mounting holes to facilitate attaching to the wall.

Technical parameters:

• - catalog number - 10062620
• - article - New
• - Model - MSW-Wpd-3v2p
• - Material - ABS, PP, Copper, PA66
• - Color - Gray
• - Tension [V] - 220
• - IP protection degree - Ip65
• - attached cap - 3-pin / 5-pin
• - operating temperature range [deg C] - -35 - 40

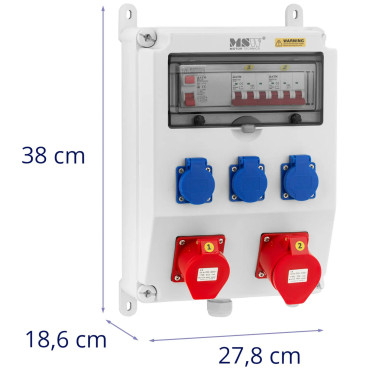

• - Dimensions (DXSXW) - 27.8 x 38 x 18.6 cm
• - weight - 3.99 kg
• - Dimensions of shipment (DXSXW) - 31 x 40.8 x 20.2 cm
• - shipping weight - 4.69 kg

Included:

• - electrical switchgear
