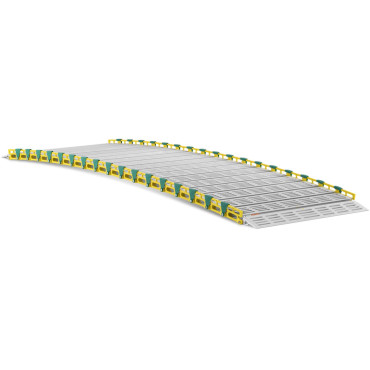

Passing ramp Portable folding up to 500 kg 3000 x 914 mm

Manufacturer's code: 10061507
Brand Ramp MSW It will work to enter higher levels in places where there are stairs for wheelchairs, walkers, mowers. Scooters, quads etc. The construction of the device was made of strong aluminum able to withstand up to 500 kg. Non-slip surface Fits rubber circles with a diameter larger than 20 cm. Hard wheels can damage the surface. Foldable construction And a small weight enables the use of the ramp anywhere. The distributed dimensions 3000 x 914 mm and after rolling out. 635 mm x 914 mm.
Product features:

• - a large lifting capacity up to 500 kg,
• - dimensions 3000 x 914 mm fit for rubber wheels with a diameter above 20 cm,
• - small weight and folding design,

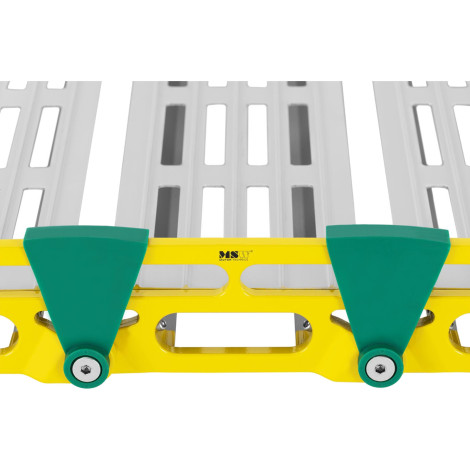

• - Non-slip surface of the ramp,
• - Durable aluminum design with plastic elements (PP).

Technical parameters:

• - Model - MSW-Arl-06
• - catalog number - 10061507
• - article - New
• - Color - Silver
• - size [mm] - 3000 x 914
• - Permissible load [kg] - 500
• - Maximum load [kg] - 500
• - Corps material - Aluminum

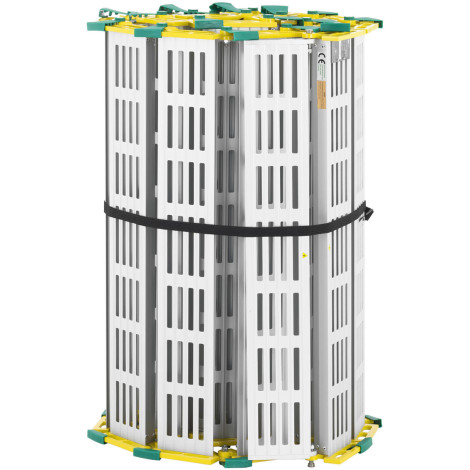

• - Roll dimensions [mm] - Ø635 x 914
• - Separator material - PE (polyethylene plastic)
• - Dimensions (DXSXW) [cm] - 305 x 92 x 62.5
• - weight [kg] - 31,5
• - Dimensions of shipment (DXSXW) [cm] - 98 x 64 x 59
• - shipping weight [kg] - 36,3

Included:

• - Foldable driveway ramp,
• - Yellow hoop
• - Allen key
• - Mounting kit (pegs + set of screws)

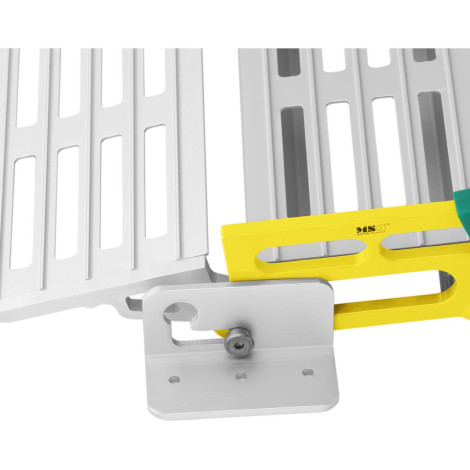

• - Mounting plates - 2 pcs.
• - key
• - brackets - 2 pcs
• - User manual
