Manufacturer's code:

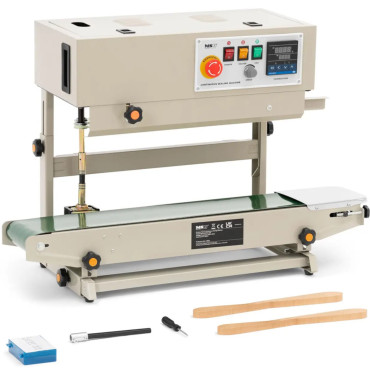

10062464Automatic brand linear welding machine MSW It will facilitate packaging of goods. The device safely moves and at the same time welds with an unlimited length. The belt conveyor provides a smooth transport. The device has a versatile application and can be used in various industries - for closing food, seeds or pharmaceutical products. With welding machines, you can pack plastic bags made of various materials, e.g. PP, PE, PV, OPP or PS. To do this, hang the foil vertically. This makes the machine suitable for packing liquid or powders. The device is also suitable for electronic, chemical, medical products and everyday articles.
The welding machine has a powerful and durable belt conveyor. It works almost smoothly and transfers the goods weighing up to 3 kg through the welding machine. In this way, a strong seam with a width of 6 - 12 mm is created. The machine is easy to use with 2 knobs and 3 buttons for fan handling, welding in on / off. Using handy knobs, you can also specify the desired welding speed of 0 - 12 m / min and temperature 0 - 300DEG C. All settings are clearly visible from the front of the device. In addition, you can conveniently adjust the welding machine to your needs. The height of the conveyor belt and the machine changes using easy to grab clamping screws. You can also adjust the pressure to the thickness of the welded bag.
The device is suitable for welding Doypack packaging.Product features: - - intuitive operation using knobs and speed switch, temperature, welding, ventilation and on / off,
- - In case of danger, you can immediately cut off the power supply using the emergency circuit breaker,
- - the belt conveyor takes a load of up to 3 kg of goods,
- - belt conveyor and welding device have an adjustable height and the clamp can be adjusted,
- - The device transports and weld the goods simultaneously.
Technical parameters: - - catalog number - 10062464
- - article - New
- - Model - MSW-Csmh-100
- - Material - PVC
- - Color - Silver
- - Tension [V] - 230
- - Speed [m/min] - 0-12
- - Welding strip [mm] - 350
- - power [W] - 500
- - Thickness [mm] - 0.08
- - Water width [mm] - 6-12
- - temperature range [deg C] - 0-300
- - Emergency switch - So
- - Maximum load - 5 kg
- - Dimensions (DXSXW) - 82 x 50 x 30 cm
- - weight - 18.7 kg
- - Dimensions of shipment (DXSXW) - 87.5 x 44 x 37 cm
- - shipping weight - 21.06 kg
Included: - - Linear welder
- - 2 triangular stripes (428)
- - 2 welding strips (770 x 15 mm)
- - fuse
- - cross-circuit screwdriver 3 "
- - feeder
- - Power cord
- - box with letters and numbers (0 - 9, MFG, EXP, LOT)
- - Hook key 38 - 42
- - Circular set type 800
