Car boot rectifier for charging 12 / 24V 30A Starting 130A

Manufacturer number: 10060139
Brand MSW Allows you to load acid-lead batteries and batteries for passenger cars, trucks, tractors, mopeds or motor boats. It will work in professional workshops or websites as well as home garages. Starting function Allows you to start the car engine when the battery is completely discharged. It will work when firing cars on gasoline or diesel (including vans, trucks and tractors). The set also includes boot cables with terminals. A current on intensity up to 30 a Provides fast and effective loading. Has two modes to choose from, Min and max. The first one is suitable for the standard recharge of the battery. The second allows you to charge a heavily used battery in a short time thanks to a high current. Short-circuit protection system Provides safe work. The built-in fuse prevents sparks and tending when the terminals are connected to the battery. Clear control panel Equipped with an analog display showing the intensity value. Functional buttons translate into simple operation. Voltage value (12 or 24 V) is selected using a switch. The handle and a compact size make it easier to transport the equipment. Built-in wires They prevent them from being lost.
Product features:

• - start-up function - launching a car even with a fully discharged battery,
• - charging modes to choose from (min - low charging current, max - high charging current),
• - current up to 30 A providing quick loading,
• - 12/24 V voltage switch,

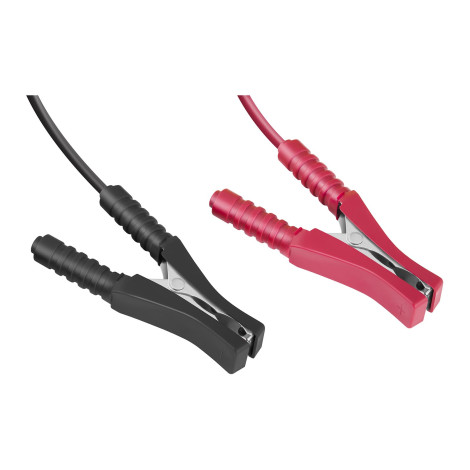

• - Built-in power cords and with terminal.

Technical parameters:

• - Model - SEC-charger-50a
• - catalog number - 10060139
• - article - New
• - Battery type - Acid-ołowiowa

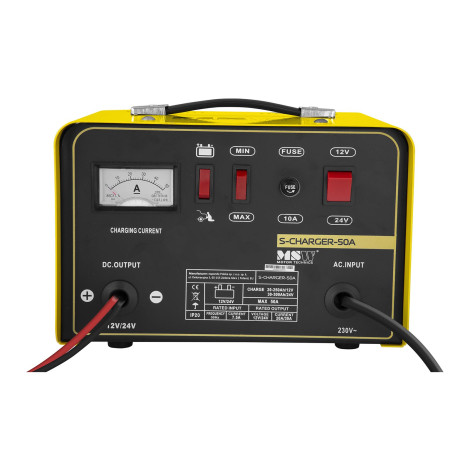

• - Tension [V] - 230
• - Display type - Analog
• - IP protection degree - Ip20
• - functions - Loading / starting
• - Input voltage [V] - 12/24
• - Recommended battery capacity [Ah] - 20 - 300
• - Maximum energy consumption of startup functions [W] - 2200
• - number of batteries - 1
• - Terminal cable length (+) - 1.5 m
• - length of the terminal cable (-) - 1.5 m
• - Maximum energy consumption - 1700 W
• - Maximum start-up current - 130 a
• - Dimensions (DXSXW) - 22.2 x 29 x 22 cm
• - weight - 9.76 kg
• - Dimensions of shipment (DXSXW) - 36 x 30 x 24 cm
• - shipping weight - 11.1 kg

Included:

• - Rectifier with wires
• - EN statement
