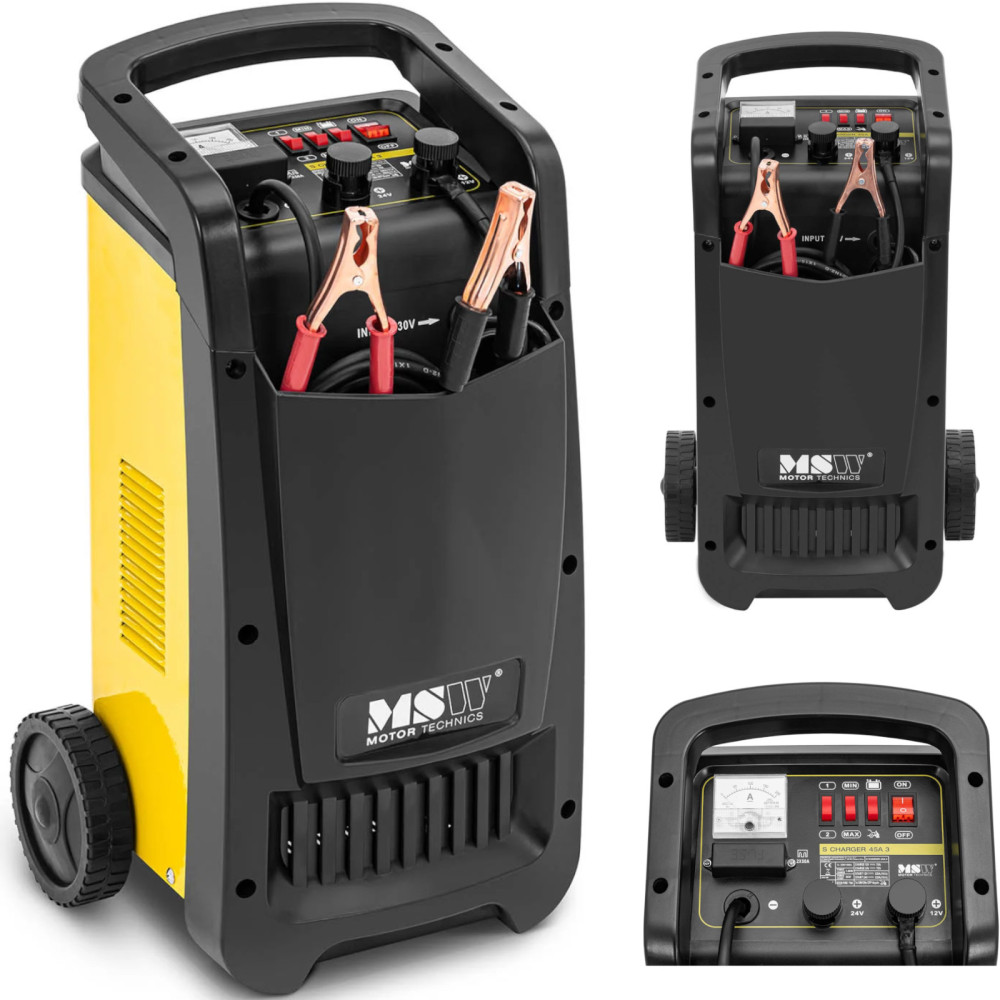

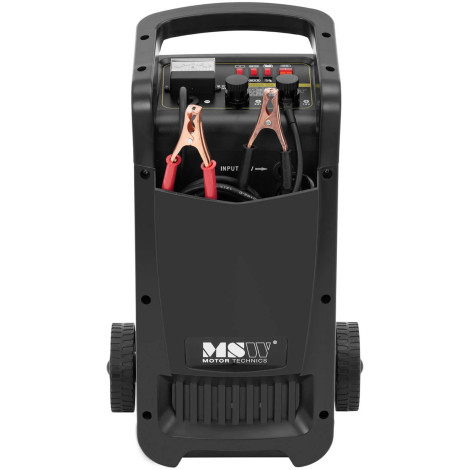

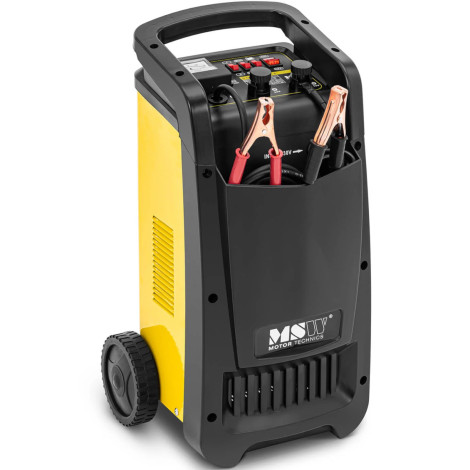

Workshop car rider with emergency start-up 12/24 V 70 A

Manufacturer's code: 10062365
Professional and Compact Car Rectifier MSW It allows you to run a car quickly and easily to move again. It does not allow you to discharge the battery and load it when it starts to lose your power. Regardless of whether a gasoline motor is activated or the diesel engine, the rectifier allows you to prepare for any eventuality. Charger with a maximum boot current 320 a Reliably provides quick starting, even if the car battery is discharged. Especially in a car workshop, where the engine is often started only for a short time, and the battery has no chance of proper charging. The device provides a quick starting that consumes maximum 8000 W. The rectifier allows reliable charging of batteries with a capacity 40 - 700 Ah. At the same time 70 a Provides exceptionally fast charging times. Output voltage 12 V or 24 V It allows you to use a device with larger vehicles, such as trucks. After fast charging the battery is ready for use. Before connecting the rectility, check that the battery has the recommended capacity. The charging power is easily controlled using the switch: Min for normally discharged batteries, max for deep-discharged batteries. Depending on whether the battery is weak only for many short travel, or almost unloaded by energy-intensive additives, such as heated windows or seats, horizontal min or max enable preparation for each situation. The built-in fuse protects the device from short-circuit when connecting the berth with incorrect polarity. The car charger delights with a compact design and numerous useful elements. Special pockets allow you to store long wires and keep order in the workshop. Circles and matched handles allow you to easily move the charger from one car to another.
Product features:

• - emergency start-up function for discharged car batteries,
• - high current up to 70 A for quick charging,
• - Special pockets for storing wires,

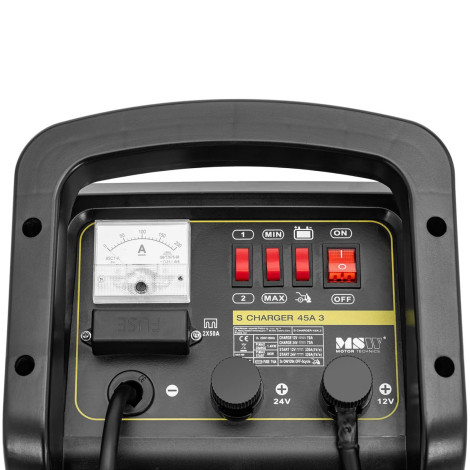

• - MIN / MAX switch for different levels of charge,
• - Compact dimensions, wheels and handle for easy transport.

Technical parameters:

• - catalog number - 10062365
• - article - New
• - Model - SEC-charger-45a.3
• - battery power - Not
• - Charging current [A] - 70
• - Battery type - AGM, EFB, gel
• - Maximum start-up current [A] - 320
• - Insulation class - F
• - IP protection degree - Ip20
• - functions - Charging, emergency start
• - Input voltage [V] - 12/24
• - Maximum energy consumption of start-up fucting [W] - 8000
• - starting current [A] - 70
• - Maximum energy consumption [W] - 1600
• - Power cord [m] - 1,8
• - Output voltage [V] - 12/24
• - Tension [V] - 230
• - Recommended battery capacity [Ah] - 40 - 700
• - Terminal cable length (+) [m] - 2
• - Terminal cable length (-) [m] - 2
• - Dimensions (DXSXW) - 32 x 37 x 62 cm
• - weight - 14.4 kg
• - Dimensions of shipment (DXSXW) - 38 x 72 x 35 cm
• - shipping weight - 18.45 kg

Included:

• - Car rectifier

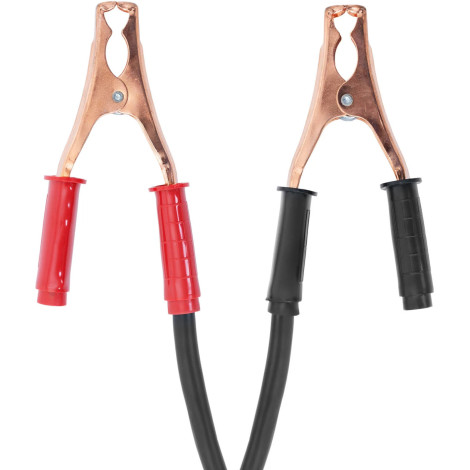

• - Black cord (2 m)
• - Red cord (2 m)
• - Power cord (1.8 m)
