Workshop car rectifier with emergency start-up 12/24 V 100 A

Manufacturer's code: 10062366
Professional and Compact Car Rectifier MSW It allows you to run a car quickly and easily to move again. It does not allow you to discharge the battery and load it when it starts to lose your power. Regardless of whether a gasoline motor is activated or the diesel engine, the rectifier allows you to prepare for any eventuality. Charger with a maximum boot current 480 a Reliably provides quick starting, even if the car battery is discharged. Especially in a car workshop, where the engine is often started only for a short time, and the battery has no chance of proper charging. The device provides a quick starting that consumes maximum 8500/12000 W. The rectifier allows reliable charging of batteries with a capacity 60 - 1000 Ah. At the same time 100 Provides exceptionally fast charging times. Output voltage 12 V or 24 V It allows you to use a device with larger vehicles, such as trucks. After fast charging the battery is ready for use. Before connecting the rectility, check that the battery has the recommended capacity. The charging time is set to 60 minutes using timer. The three-digit LED display shows all set values and the appropriate charge level. The built-in fuse protects the device from short-circuit when connecting the berth with incorrect polarity. The car charger delights with a compact design and numerous useful elements. Special pockets allow you to store long wires and keep order in the workshop. Circles and matched handles allow you to easily move the charger from one car to another.
Product features:

• - emergency start-up function for discharged car batteries,
• - high current up to 100 A for quick charging,
• - Special pockets for storing wires,

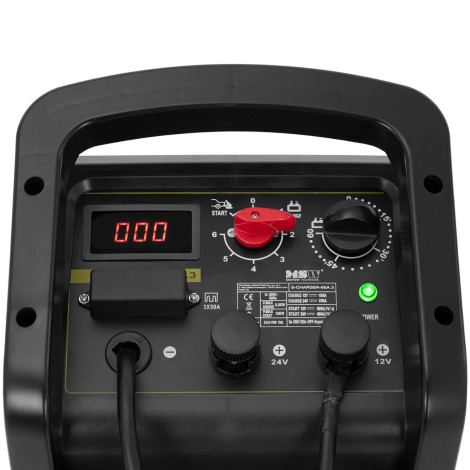

• - Timer up to 60 minutes and a three-digit LCD display,

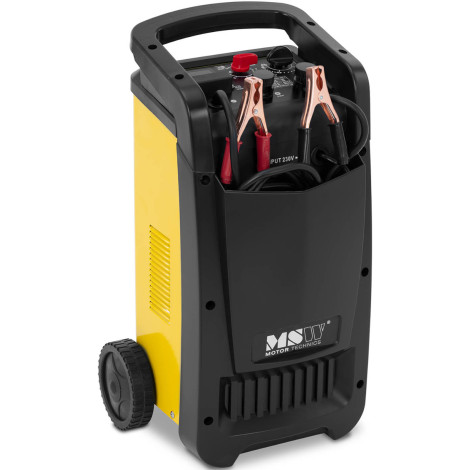

• - Compact dimensions, wheels and handle for easy transport.

Technical parameters:

• - catalog number - 10062366
• - article - New
• - Model - SEC-charger-65a.3
• - Mounting type - -
• - battery power - Not
• - Charging current [A] - 100
• - Display size [mm] - -
• - ambient temperature [deg C] - - - -
• - Battery type - AGM, EFB, gel
• - Maximum start-up current [A] - 480
• - Insulation class - F
• - IP protection degree - Ip20
• - IEC protective class - -
• - functions - Charging, emergency start
• - Input voltage [V] - 12/24
• - Maximum energy consumption of start-up fucting [W] - 8500/12000
• - starting current [A] - 100 - 100
• - Rated power [W] - -
• - Maximum energy consumption [W] - 1700
• - Power cord [m] - 1,8
• - Output voltage [V] - 12/24
• - Tension [V] - 230
• - Recommended battery capacity [Ah] - 60 - 1000
• - Terminal cable length (+) [m] - 2
• - Terminal cable length (-) [m] - 2
• - Display type - Led
• - Dimensions (DXSXW) - 32 x 38 x 62 cm
• - weight - 22.8 kg
• - Dimensions of shipment (DXSXW) - 38 x 72 x 36 cm
• - shipping weight - 26.7 kg

Included:

• - Car rectifier

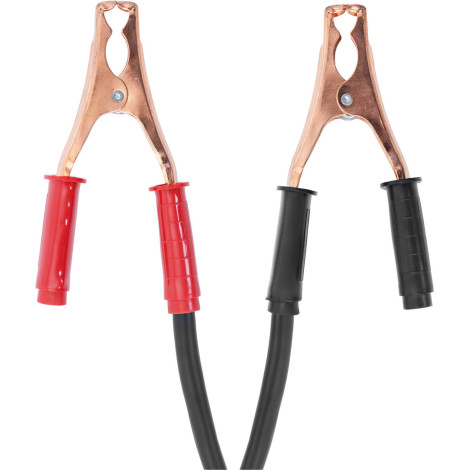

• - Black cord (2 m)
• - Red cord (2 m)
• - Power cord (1.8 m)
