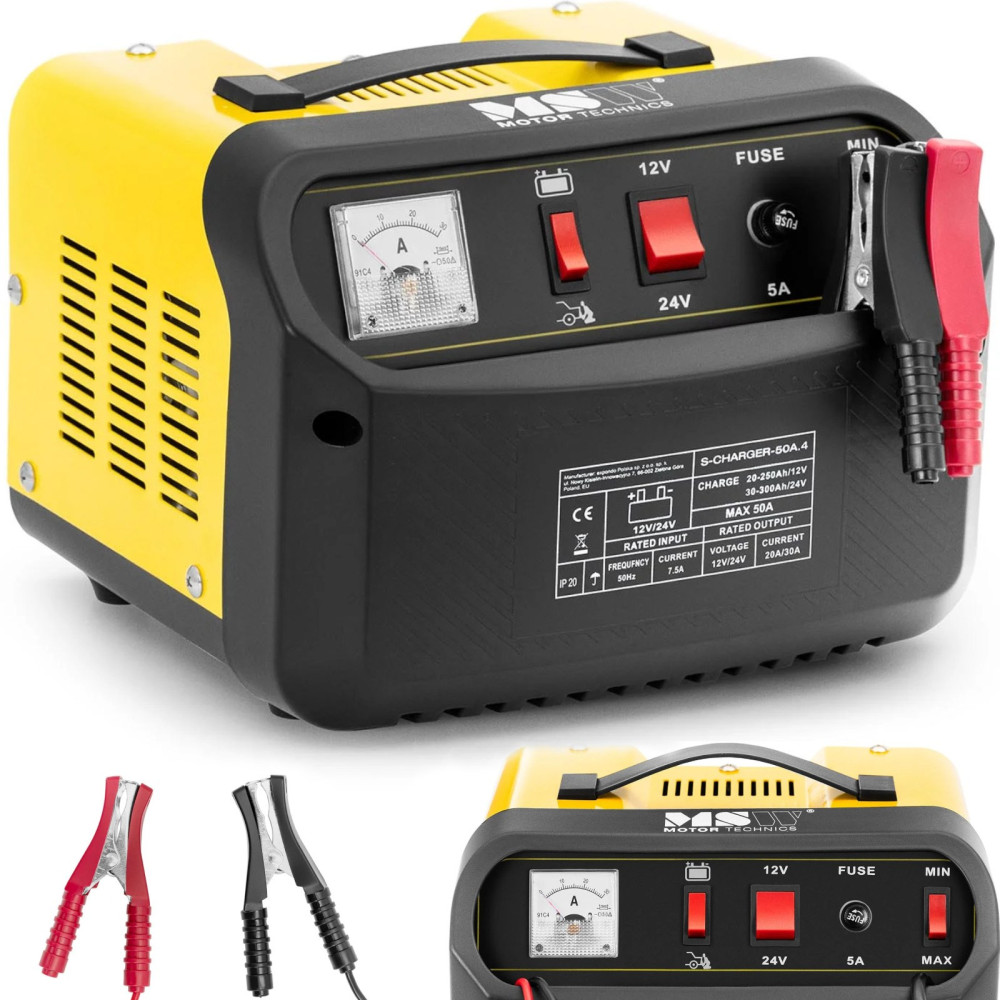

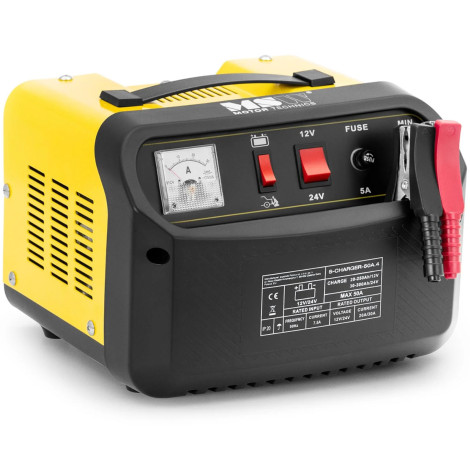

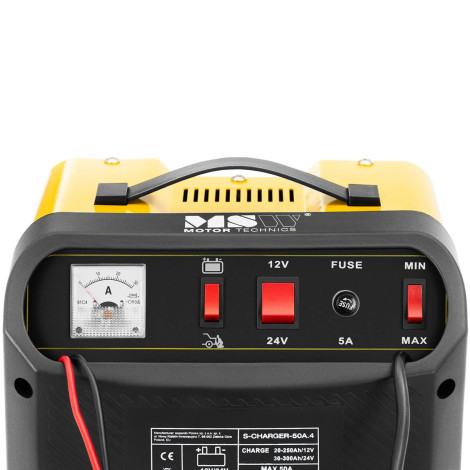

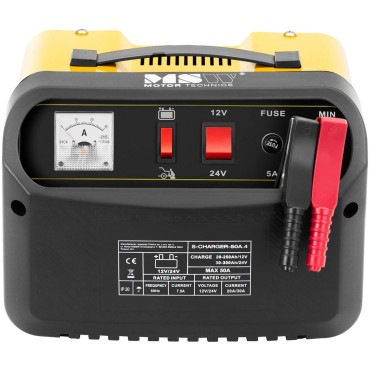

Car rectifier with emergency boot 12/24 V 45 A

Manufacturer's code: 10062368
Professional and Compact Car Rectifier MSW It will allow you to run a car quickly and easily to move again. Regardless of whether the gasoline motor is activated, whether it is warming up the diesel engine, thanks to the rectifier you can prepare for any eventuality. Charger with a maximum boot current 130 a Reliably provides quick starting, even if the car battery is discharged. Especially in a car workshop, where the engine is often started only for a short time, and the battery has no chance of proper charging. The device provides a quick starting that consumes maximum 2200 W. The car's rectifier allows you to charge batteries with a capacity 12 V 20 - 250 Ah 24 V 30 - 300 Ah. With electricity 45 a Provides exceptionally fast charging times. Thanks to the output voltage 12 V or 24 V The device can be used with larger vehicles, such as trucks. After fast charging the battery is ready for use. Before connecting the rectility, check that the battery has the recommended capacity. The charging power is set to an easy way using the switch: Min for batteries unloaded normally, Max For deeply discharged batteries. Depending on whether the battery is weak only for many short travel, or almost unloaded by energy-intensive additives, such as heated windows or seats. Thanks to the built-in fuse, the device is protected against short-circuit when connecting the sphere with incorrect polarity. The wires are mounted in the device so that they do not get lost. Thanks to a solid handle, you can easily move the charger from one car to another.
Product features:

• - emergency start-up function for discharged car batteries,
• - high current up to 45 A for quick charging,
• - 12 V 20 - 250 Ah 24 V 30 - 300 Ah batteries,
• - permanent cables on the device + storage on wires,
• - MIN / MAX switch for different levels of charge.

Technical parameters:

• - catalog number - 10062368
• - article - New
• - Model - SEC-charger-50a.4
• - Charging current [A] - 45
• - Battery type - AGM, EFB, gel
• - Maximum start-up current [A] - 130
• - Insulation class - F
• - IP protection degree - Ip20
• - functions - Charging, emergency start
• - Maximum energy consumption of start-up fucting [W] - 2200
• - starting current [A] - 25 - 30
• - Maximum energy consumption [W] - 720
• - Power cord [m] - 1,8
• - Output voltage [V] - 12/24
• - Tension [V] - 230
• - Recommended battery capacity [Ah] - 12 V 20 - 250 Ah 24 V 30 - 300 Ah
• - Terminal cable length (+) [m] - 1.7
• - Terminal cable length (-) [m] - 1.7
• - Dimensions (DXSXW) - 24.5 x 27 x 20 cm
• - weight - 9.85 kg
• - Dimensions of shipment (DXSXW) - 32 x 33 x 25 cm
• - shipping weight - 10.6 kg

Included:

• - Car rectifier

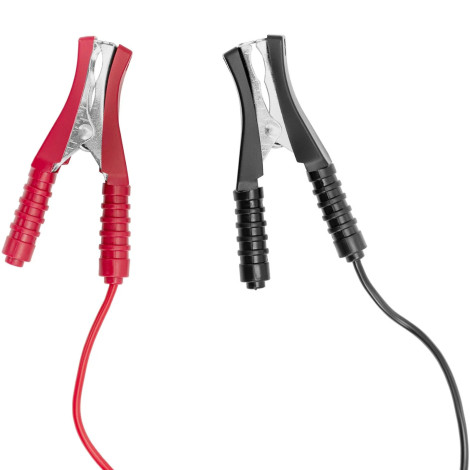

• - Black cable (1.7 m)
• - Red cord (1.7 m)
• - Power cord (1.8 m)
