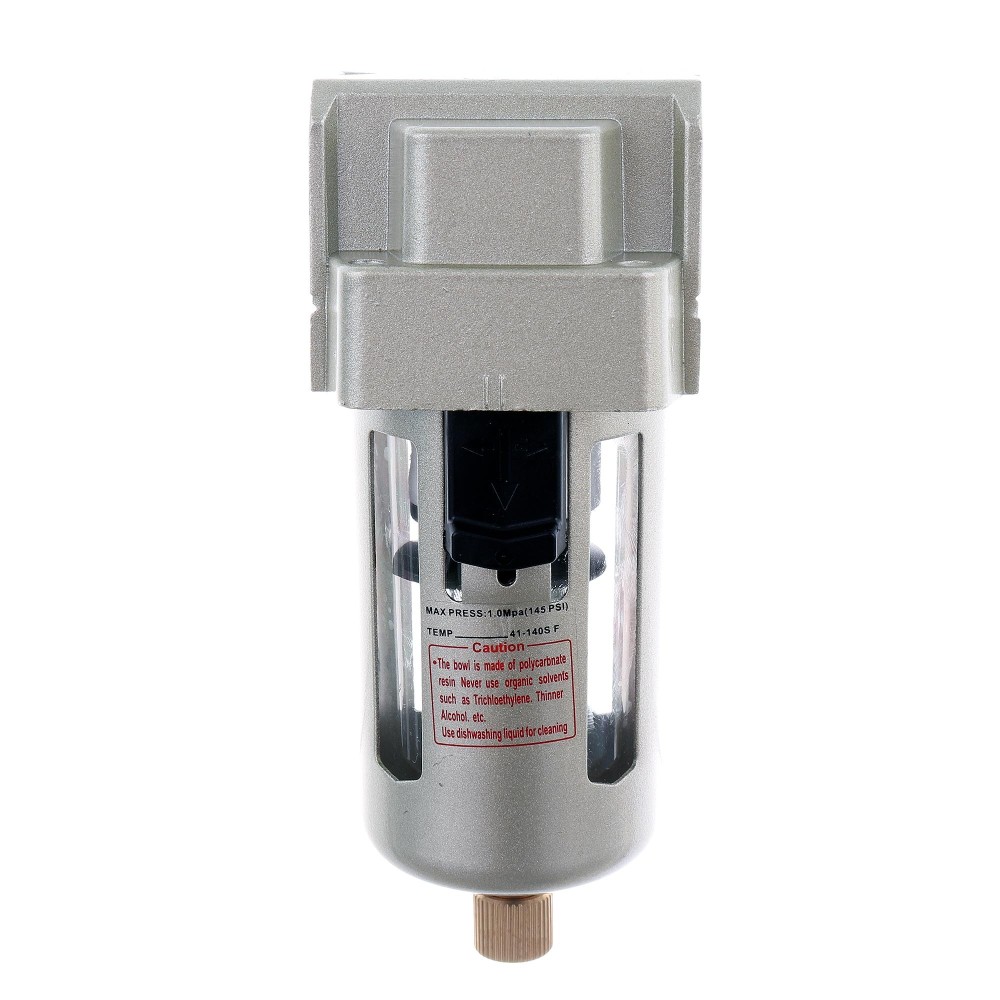

Air Filter AF4000-04 1/2 "(CH) 20UM

Air filter, separator, dehydrating oil 1/2 "AF4000-04CH - 20UM

The filter is used to dry air. It is an indispensable element of each pneumatic installation. Using this filter, you can prevent, inter alia; Rusting tools, drains when painting paint guns, snake damage, etc.

The filter does not require additional fasteners, maintains on a nipple or a connector that will be attached to the compressor.

Emptying water consists in pressing the valve placed at the bottom of the filter.

It separates oil and any other pollution.

It is equipped with a metal tank cover.

Technical data:

• Height: 165mm
• Width: 70mm
• Filtration: 0.02 mm
• Threads: 1/2 "(19-21 mm)
• Working pressure: 0-10 bar
• Tank capacity: 45 ml
• Air flow: 4000 l / min
• Mass: 0.5 kg
