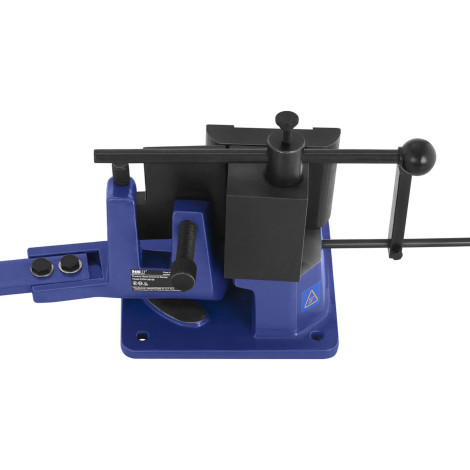

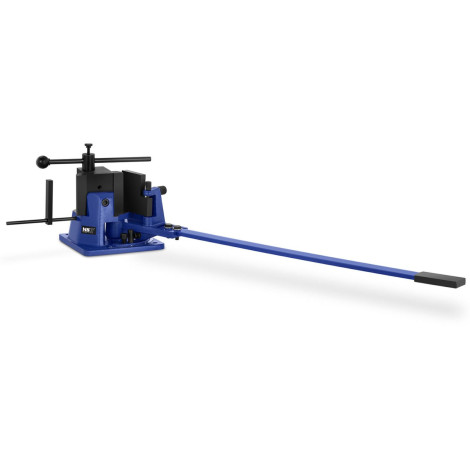

Bending bending machine for hand sheet with an protractor Width 100 mm steel

Manufacturer's code: 10060475
Binary for the German sheet brand MSW It will work both in private and professional workshops, Locksmiths and factories. It can bend cold or hot elements made of steel, copper, brass or aluminum with a flat, round, square or angular profile.

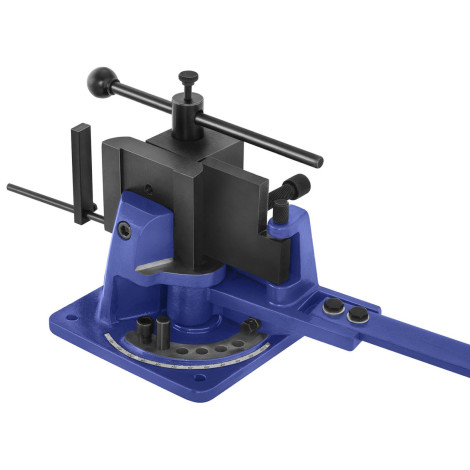

Solid material fastening provides the use of eccentric quick coupling. The bending machine has a high pressure on the material amounting to 23 kg / mm2. The protractor allows for precise machining and selection of bending angle in the range up to 120DEG. The construction of the device was made of steel, which ensures its stability. The bending machine can be attached with screws to the working table.
Product features:

• - Versatility - for flat round, square, angled profiles,
• - Reliability - Eccentric handle,
• - Precision - zgoma zgorzącz
• - Stability - mounting holes for attachment to the countertop,
• - Durability - Construction from a solid steel.

Technical parameters:

• - Model - MSW-Ub100
• - catalog number - 10060475
• - article - New
• - Material - Steel
• - machining angle [deg ] - 120
• - Workpiece dimension - L / angular with bending (cold / hot) [mm] - 60 x 8/100 x 12
• - Maximum bending resistance - 23 kg / mm2
• - Dimension of the workpiece flat profile at bending (cold / hot) [mm] - 100 x 15
• - Dimension of the processed round profile at bending (cold / hot) [mm] - Ø18 / Ø30
• - dimension of the workpiece of a square profile at bending (cold / hot) [mm] - 16 x 16/30 x 30
• - Dimensions (DXSXW) [cm] - 120 x 104 x 25
• - weight [kg] - 30,8
• - Dimensions of shipment (DXSXW) [cm] - 40.5 x 31 x 30
• - shipping weight [kg] - 32,3

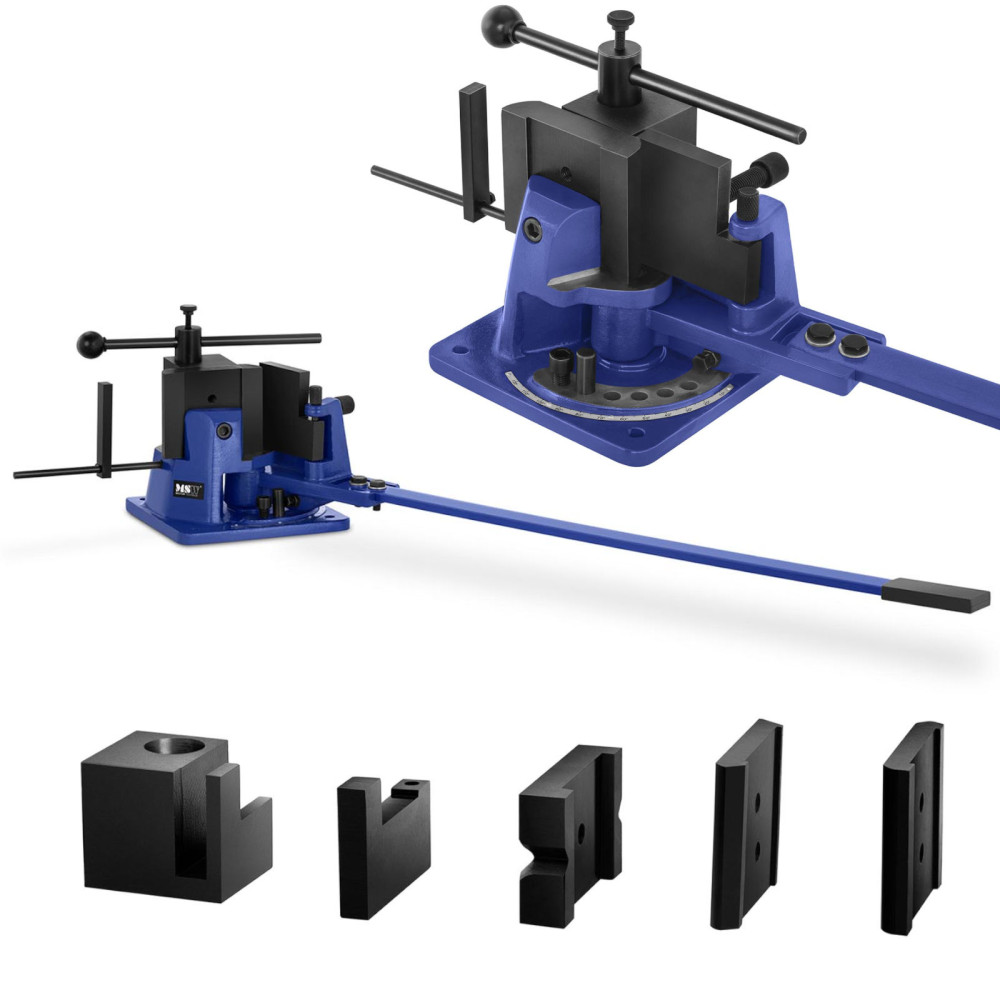

Included:

• - Bender for the sheet metal,

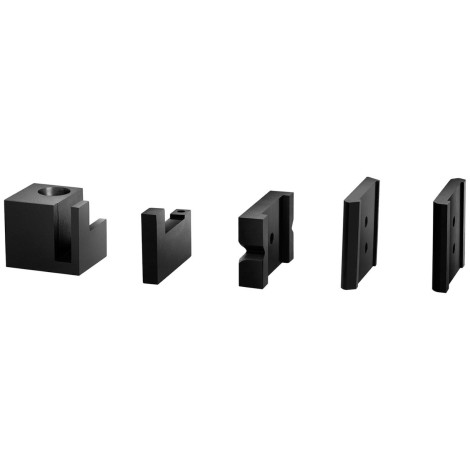

• - Dies - 5 pcs.
• - EN statement
