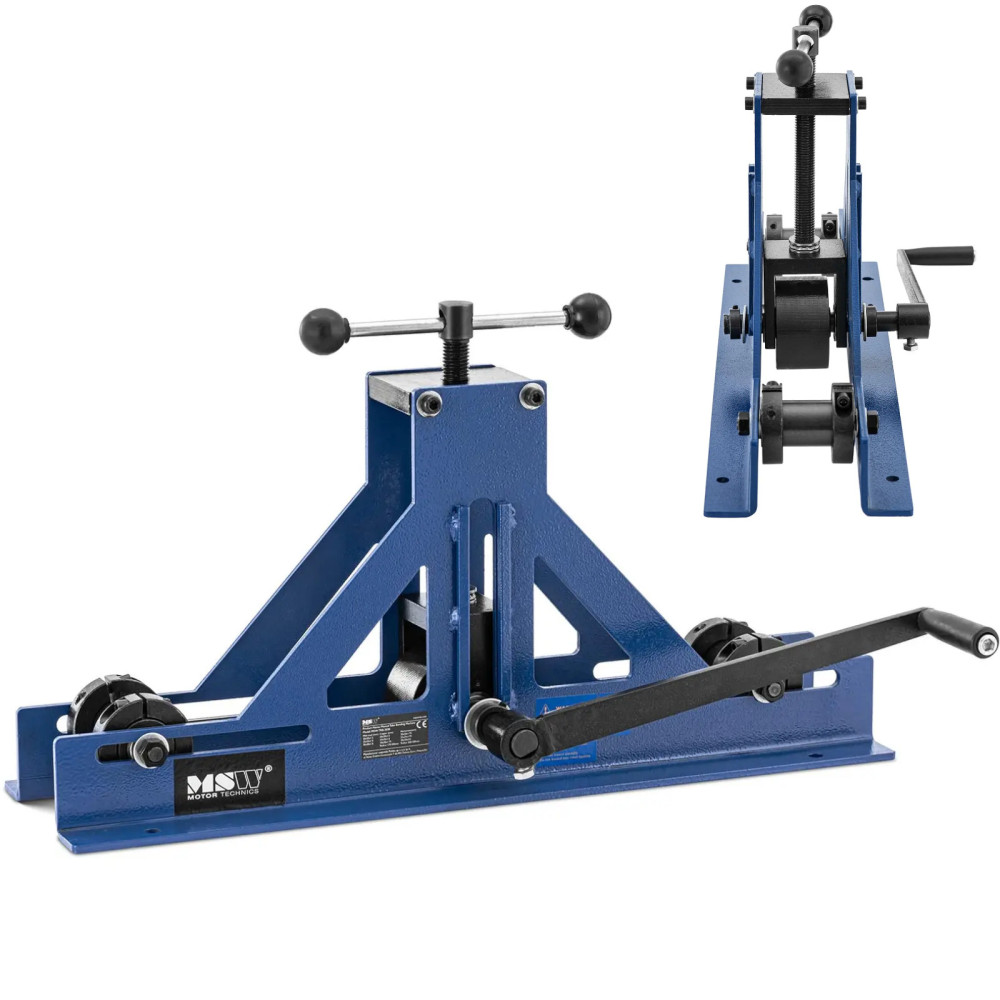

Bending machine Bending for square and rectangular profiles 0-360 degrees

Manufacturer's code: 10062229
Bending machine for brand pipes MSW It allows you to manually shape square pipes up to 360DEG. Machine precisely and quickly Square and rectangular profiles. To change the bending angle, turn the adjustable middle work roller up or down using a threaded bar. Two outer rollers are fixed. Thanks long crank A manual bending machine ensures optimal power transfer. The pipe is placed between three rollers, twist the crank in one direction. If the workpiece does not have a desired curvature yet, adjust the manual bending machine again and turn it in the opposite direction and repeat this process until the requested angle is reached.
With the pipe bending machines, you can work with soft steel, copper and aluminum in the following dimensions:

• - Soft steel (mm): 20 x 20 x 1.2 / 30 x 25 x 1.5 / 30 x 30 x 1.5 at min. radius 180 mm and min. 450 mm diameter
• - Copper in (mm): 20 x 20 x 1.5 / 30 x 25 x 1.5 / 30 x 30 x 1.75 at min. radius 170 mm and min. Diameter of 500 mm
• - Aluminum (mm): 20 x 20 x 1.75 / 25 x 25 x 1.75 / 30 x 30 x 2 at min. radius of 200 mm and min. 500 mm in diameter.

Regardless of whether it comes to establishing installations, work in a factory, construction, or private projects, using a bending machine for profiles in the blink of an eye you can bend square pipes to the appropriate shape. This takes place with such a delicate emphasis that machined materials are neither damaged nor broken. To ensure additional security, attach a manual pipe and profiles to the workshop table or other appropriately stable surface.
Product features:

• - suitable for soft steel, copper and aluminum processing,
• - a long hand crank for optimal power transfer without much effort,
• - a bending machine with two standards and a working roller with a regulated height for bending at an angle of 0 to 360deg,
• - Easy installation on the workshop table thanks to drilled holes,
• - Robust and durable steel construction.

Technical parameters:

• - catalog number - 10062229
• - article - New
• - Model - MSW-Trb-3030
• - Material - Steel
• - Color - Blue
• - Bending range [mm] - 180-450
• - Maximum thickness of the bent material [mm] - Steel: 20 x 20 x 1.2 / 25 x 25 x 1.5 / 30 x 30 x 1.5 at min. R / Win: 180/450 Copper: 20 x 20 x 1.5 / 25 x 25 x 1.5 / 30 x 30 x 1.75 at min. R / Wr.: 170/500 Aluminum: 20 x 20 x 1.75 / 25 x 25 x 1.75 / 30 x 30 x 2 at min. R / Wr.: 200/500
• - Dimensions (DXSXW) - 62 x 30 x 30 cm
• - weight - 17.2 kg
• - Dimensions of shipment (DXSXW) - Box: 67 x 29 x 41 cm
• - shipping weight - 24.2 kg

Included:

• - pipe bending machine
