Manufacturer's code:

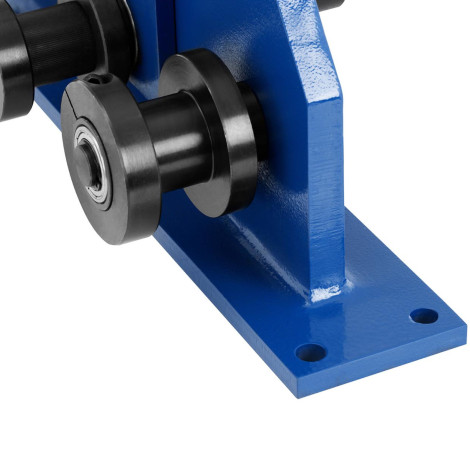

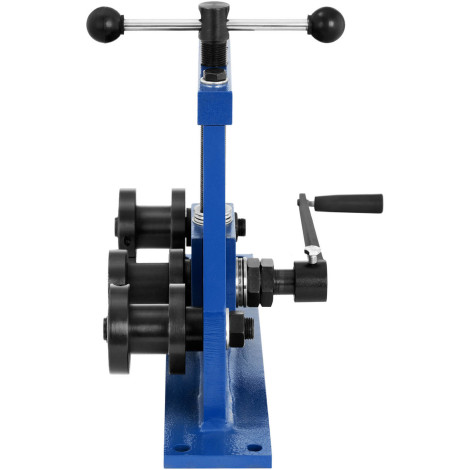

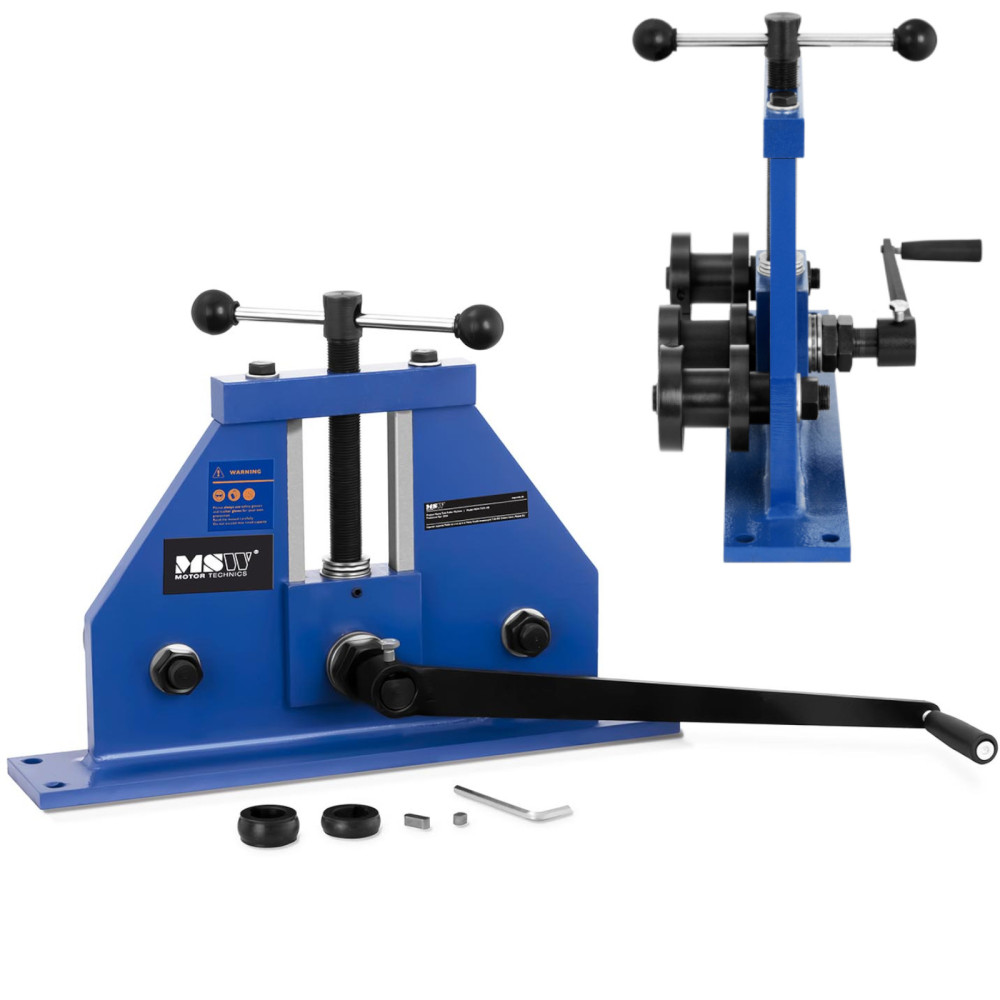

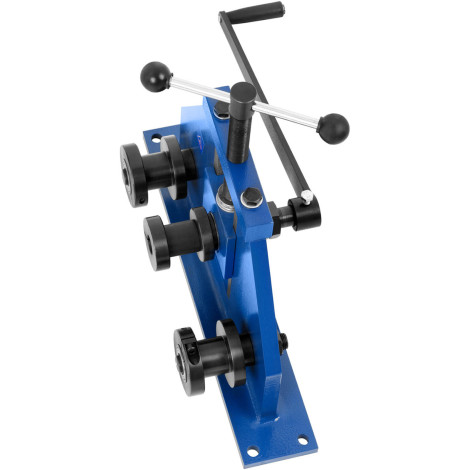

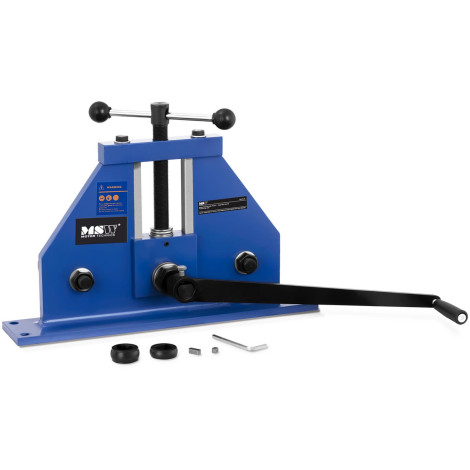

10061177Practical bending machine for brand pipes
MSW It is used to shape all types of pipes and square and rectangular profiles. Equipment will work in professional use in production plants, workshops, service points, etc. The hand-handed model has a simple construction. Effective bending pipes is possible thanks to the rings and a regulated form. It fits the elements with size
19-38.1 mm (2 mm wall thickness). A smooth adjustment takes place using a large knob. Pipes can be bent in the range
0-360deg . A solid device was made of low-carbon steel. Thanks to this, it is durable and has a long service life. Mounting plate with holes
14 mm Provides high stability. The bending machine can be successfully used for design, repair, construction works. The device has a compact design, so it will work on every position.
Product features: - - to pipes / square and rectangular profiles,
- - Bending range 0-360deg,
- - comfortable and easy handling,
- - smooth adjustment enables a large knob,
- - Durable low-carbon steel.
Technical parameters: - - catalog number - 10061177
- - article - New
- - Model - MSW-Trm-100
- - Material - Carbon steel
- - Bending Angle [deg ] - 0 - 360
- - Hole diameter [mm] - 14
- - Maximum thickness of the material rolled up [mm] - 2
- - pipe diameter [mm] - 19 - 38.1
- - Dimensions (DXSXW) - 50 x 22 x 33 cm
- - weight - 27 kg
- - Dimensions of shipment (DXSXW) - 40 x 35 x 26 cm
- - shipping weight - 31 kg
Included: - - pipe bending machine
- - left
- - 6 mm key
- - User manual
