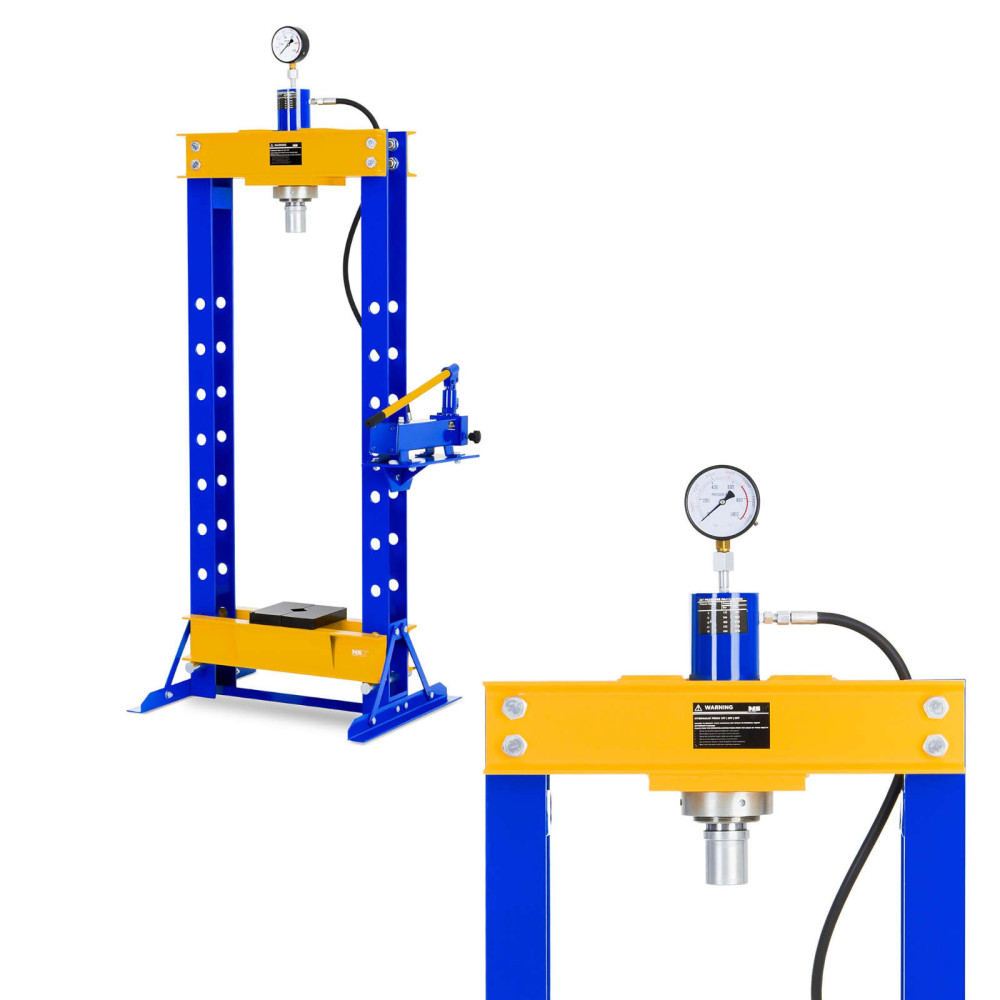

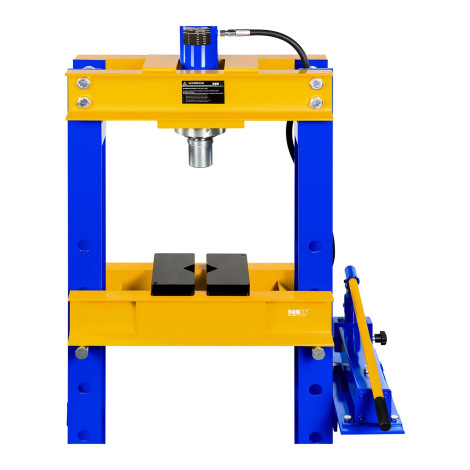

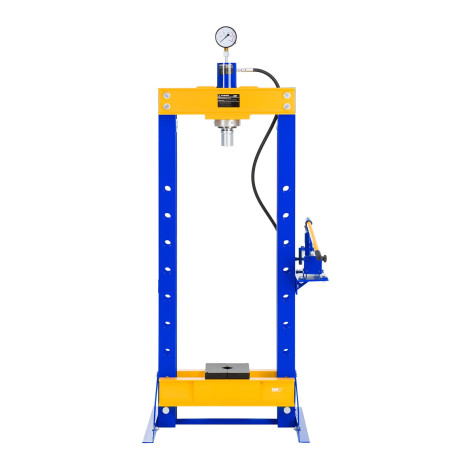

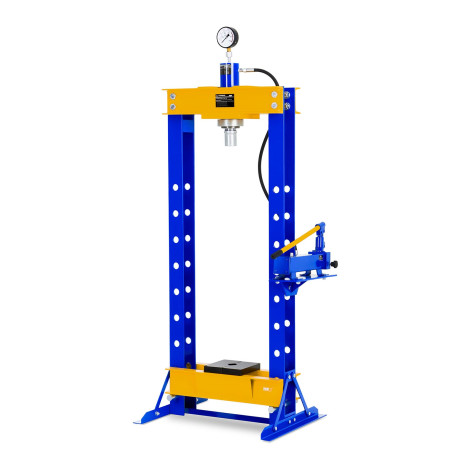

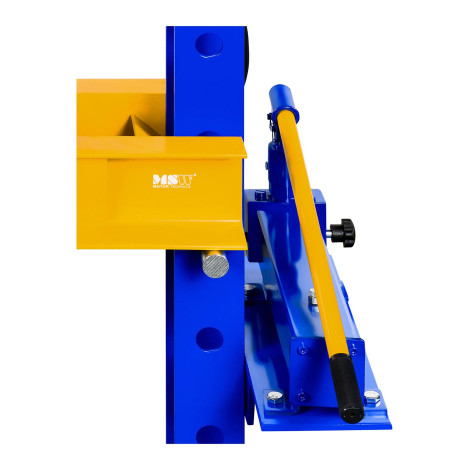

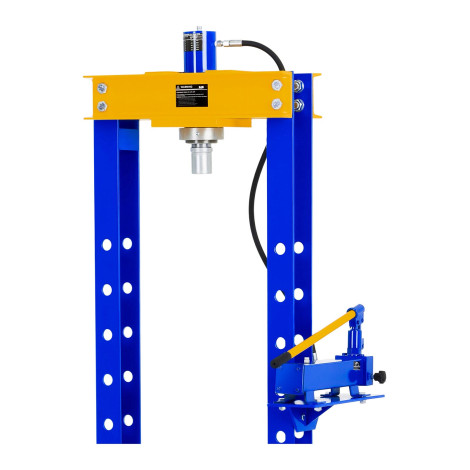

Hydraulic workshop 30t 666 bar MSW Wp-30t

Manufacturer's name: 10060301
Mark's hydraulic press MSW It will work both in industry and in workshops, car websics, mechanical stores or garages. Thanks to the maximum pressure force 30 tons It is effective for plastic hard metal processing and when assembling or disassembling the gears, bearings, hub, sleeves, etc. The long service life of the device provides extremely durable, completely welded construction. The regulation allows you to adjust the working height to your own needs, with a view, for example, the size of elements subjected to processing. Stability during use is due to the shock absorbing tiles, placed at the base of the press. They significantly reduce the vibrations, which during the operation is subjected to hydraulic press. This has a positive effect on efficiency and ensures undisturbed work. Precision and work safety result from the fact that the device has been equipped with high quality pressure gauge, which indicates the exact pressure of the pressure from which the piston pressure takes place. Fast withdrawal, and thus the end of the work follow the opening of the bleed valve. Thanks to this, the user retains full control over the machine pressure force, with certainty that it will not overload. The device stands out with effectiveness, reliability and ergonomics. The pressure force 30 tons allows shaping, bending and straightening hard metals, as well as assembly or disassembly of such elements as bearings, gears, sleeves, etc.
Product features:

• - maximum pressure force 30 tons,
• - Working height 200-1200 mm,
• - 9 levels of height,
• - working table width 460 mm,

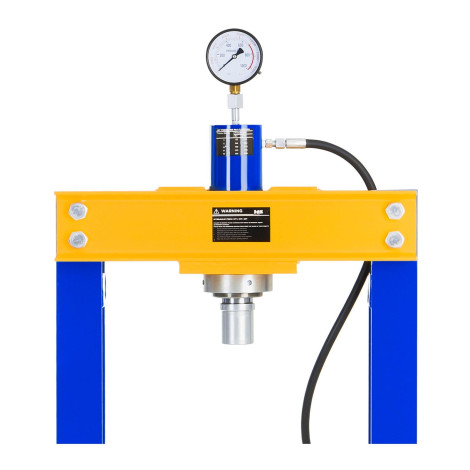

• - Pressure pressure gauge.

Technical parameters:

• - Model - MSW-Wp-30t
• - catalog number - 10060301
• - article - New
• - Maximum pressure - 30,000 kg
• - Maximum working pressure - 666 bar
• - piston jump - 160 mm
• - Washing table width - 460 mm
• - Dimensions (DXSXW) - 64 x 73 x 186 cm
• - weight - 116.5 kg
• - Dimensions of shipment (DXSXW) - 164 x 29 x 38 cm
• - Working height - 200-1200 (9 degrees Co 125 mm)
• - shipping weight - 132.5 kg

Included:

• - press mounting elements
• - Manometer
• - User manual
