Peleciarka Granulator Machine for Pellet Feed 30000 W 400 V 1100 kg / h Wed. 400 mm

Manufacturer's code: 10280410

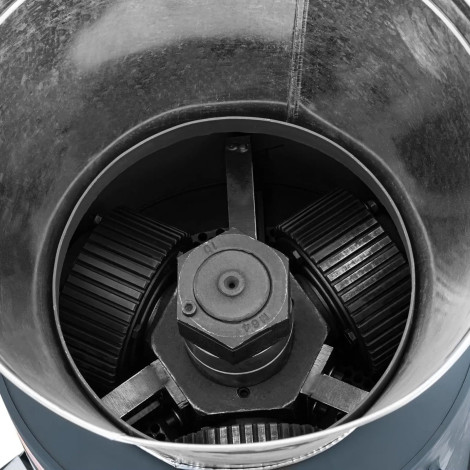

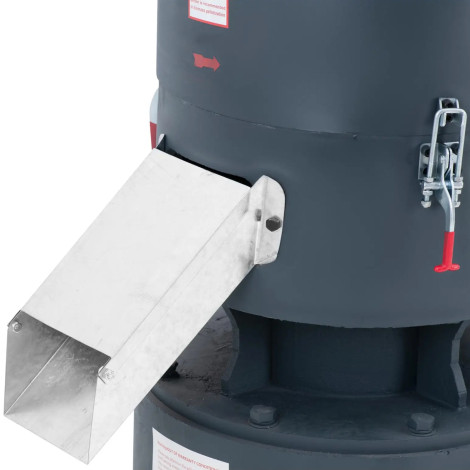

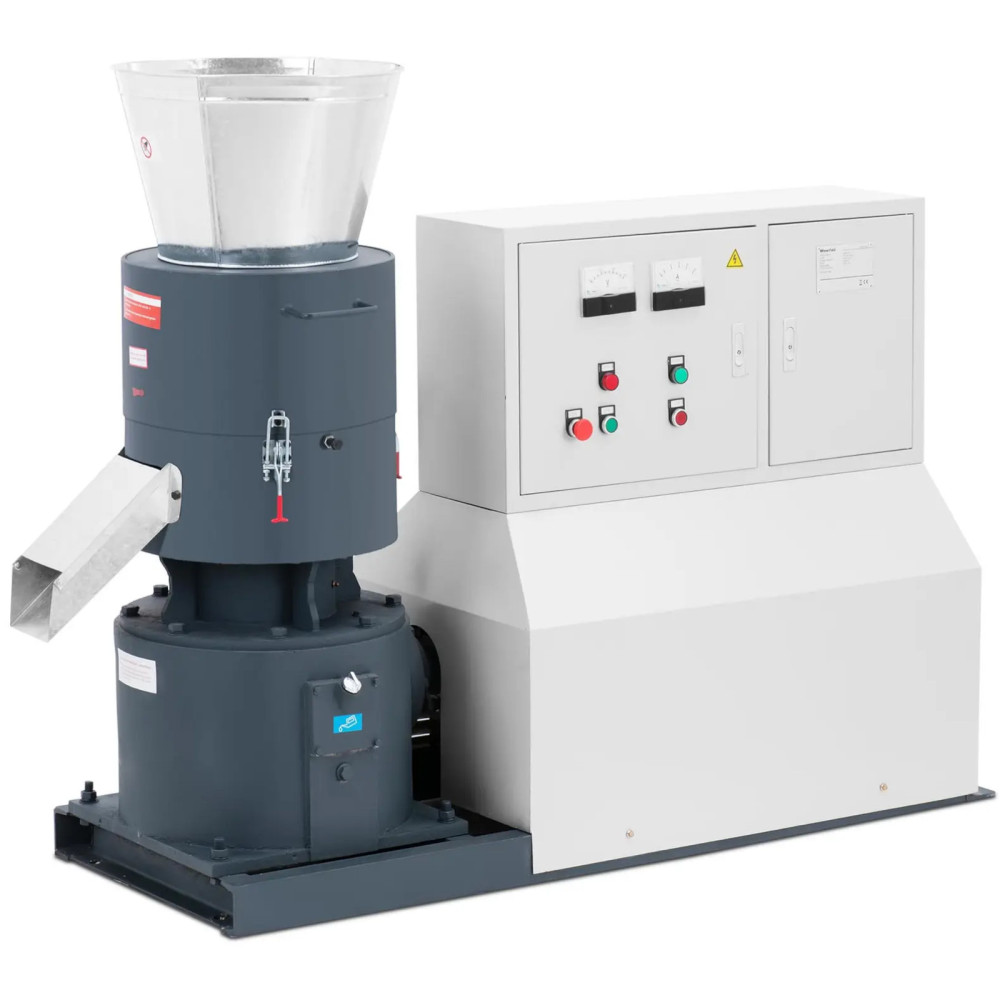

Wiesenfield Marker allows you to produce up to 1100 kg of feed in granules per hour. It also processes wood chips up to 450 kg / h. It allows you to prepare a pellet with sawdust and smoking in an environmentally friendly way. The peleciary should be heated from 60 to 80Deg C with vacuum heat treatment. Thanks to this, the surfaces do not damage or deformate during heating. Then use the mass for extrusion. The massive roller shows the contents by the matrix Diameter 400 mm. As a result, a strongly compacted, durable pellets with a diameter of 6 mm. To produce a pellet with a different diameter, other matrices are needed. The ejection gutter allows you to fill the finished pellets of bags. The control cabinet is transparent and intuitive to use. The emergency switch ensures safety. The Weleciary has an electric motor 30000 power. The device is powered by electricity 3-phase 400 V And we deliver them without connection plug.
Note: At the same time, a binder for pellets should be ordered (No. 10530000). Powder from wheat starch facilitates ironing and storing pellets.
Note: Matrix dies and clamping rollers can be used up to 300 hours. If they are worn, replace them immediately.
Product features:

• - produces pellets for feeding animals, fertilization and heating,
• - processes 900 - 1100 kg / h for feed or 400 - 450 kg / h chips,
• - A power motor 30000 W requires a speed of 1475 rpm,
• - Pellet retains longer life thanks to heating to a temperature from 60 to 80DEG C,

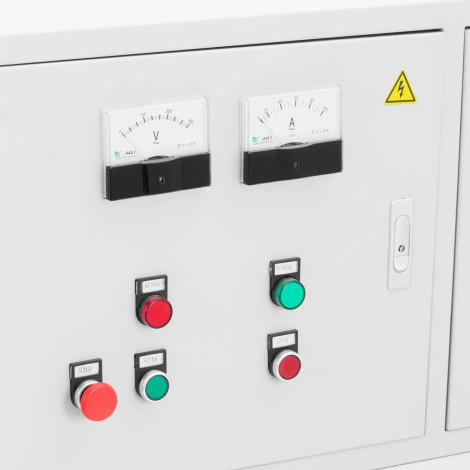

• - The transparent control cabinet is easy to use.

Technical parameters:

• - catalog number - 10280410
• - article - New
• - Model - -Knows pm-4500
• - Material - Steel
• - Tension [V] - 400
• - IP protection degree - Ip40
• - Feed production efficiency [kg/h] - 900 - 1100
• - power [W] - 30000
• - Production efficiency with sawdust [kg/h] - 400 - 450
• - Continuous working time [h] - 8 - 10
• - operating temperature range [deg C] - 60-80
• - Emergency switch - So
• - rotational speed [obr./min] - 1475
• - Diameter of the matrix - 400 mm
• - Size of the matrix holes - 6 mm

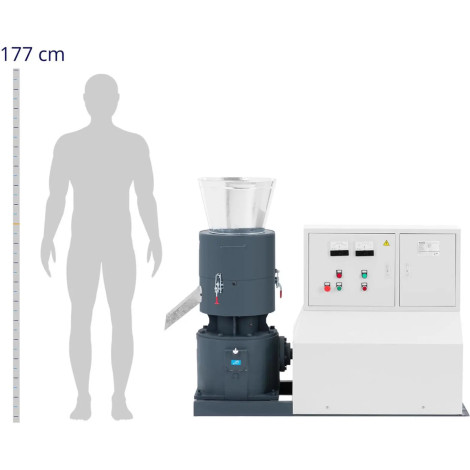

• - Dimensions (DXSXW) - 167 x 56.5 x 126.5 cm
• - weight - 660 kg
• - Dimensions of shipment (DXSXW) - 160 x 69 x 136 cm
• - shipping weight - 728 kg

Included:

• - Weleciary
• - tank
• - filling funnel
• - Control unit
• - oil syringe
• - Installation tools (key, screwdriver, peg)
• - cover
• - Delivery without a network plug
