Peleciarka Press for the production of pellets sawdust PAS II 230 mm 400 kg / h 28 km

Manufacturer's code: 10280623

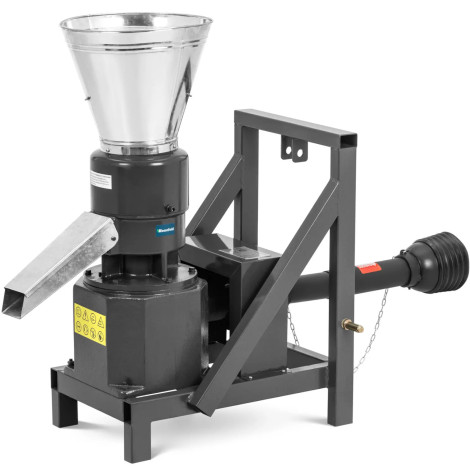

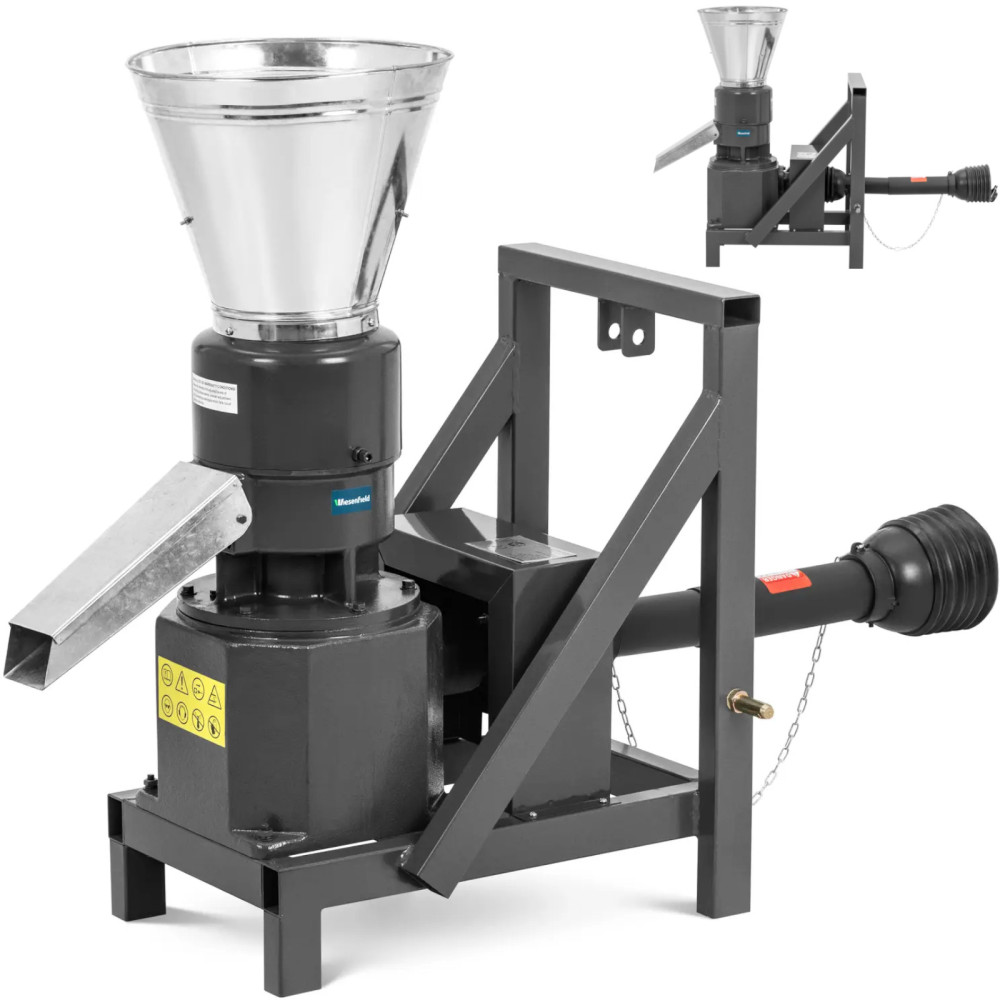

Wiesenfield Marker It will allow to produce up to 400 kg of granules over an hour. You can also produce up to 180 kg of wood pellets from sawdust per hour. The raw material should be less than 6 mm. A tractor or other vehicle from 15 to 28 km is needed to drive a pellet press to be powered, which connects to the machine using a power rolling roller (WOM). Thanks to the working time up to 24 hours, even large amounts of granules can be made easily. The control panel is transparent and intuitive. O Safety will take care of the easily accessible emergency switch - just like a protective grille in a large lane for material administration. Regardless of whether it comes to a pellet or feed, the peleciarka will allow you to get an easy to store granules. The press is heated to a temperature of 60 to 80Deg C. Two solid rollers are squeezed the material through the matrix with a diameter of 230 mm. In this way, a heavily-pressed pellet with a diameter of 6 mm is obtained. For the production of pellets, another diameter is needed by a suitable matrix. The practical unloading gutter will allow you to fill the finished product directly to the bags. NOTE: DC MATERIES AND MEDICAL SCREENS can be used up to 300 hours. If they are worn, replace them immediately.
Product features:

• - the pelleciary produces large amounts of pellets with a diameter of 6 mm for feeding, fertilization or heating,
• - at work time of 24 hours a pellet press manufactures up to 400 kg / h for feed or up to 180 kg / h wood pellet,
• - Pellet press powered by a tractor (recommended power 15 - 28 hp) using a power tank (WOM),
• - thanks to heating to a temperature from 60 to 80DEG C, a weller will guarantee a longer period of stability of the granulate,
• - Large funnel, stable legs and compact construction, these are the advantages of this desert.

Technical parameters:

• - catalog number - 10280623
• - article - New
• - Model - -Knows pm-3600
• - Material - Carbon steel, Cast iron
• - Color - Gray
• - power supply for power reception - 15 - 28
• - Size of the load box [mm] - 380
• - Feed production efficiency [kg/h] - 300 - 400
• - Number of matrices - 1
• - Production efficiency with sawdust [kg/h] - 130 - 180
• - Continuous working time [h] - 24
• - operating temperature range [deg C] - 60 - 80
• - Diameter of the matrix - 230 mm
• - Size of the matrix holes - 6 mm
• - Dimensions (DXSXW) - 132 x 63 x 110 cm
• - weight - 146.5 kg
• - Dimensions of shipment (DXSXW) - 77 x 54 x 103 cm
• - shipping weight - 167.5 kg

Included:

• - Weleciary
• - Mounting accessories
