Refrigerator for lowering the pellet temperature up to 300 kg / h 400 V 1500 W

Manufacturer's code: 10280607

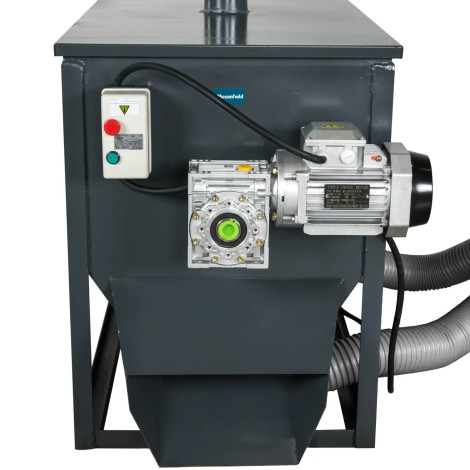

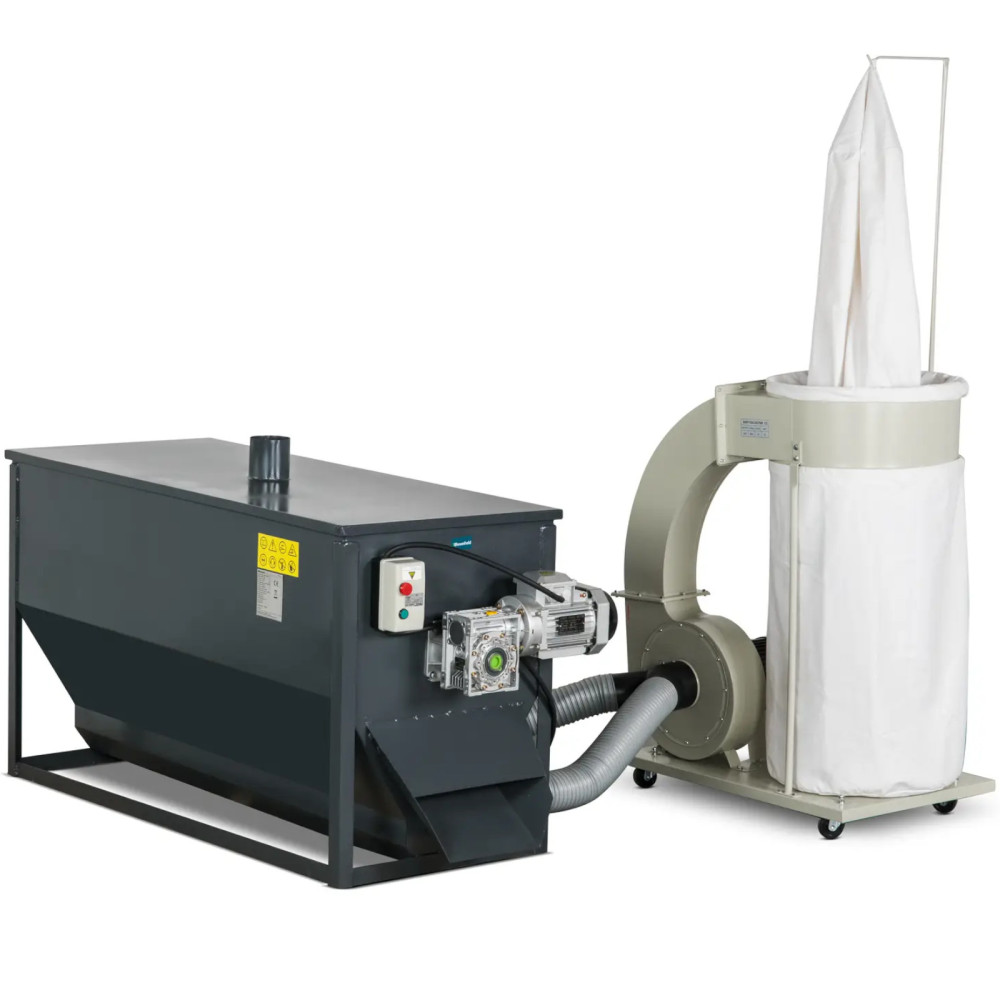

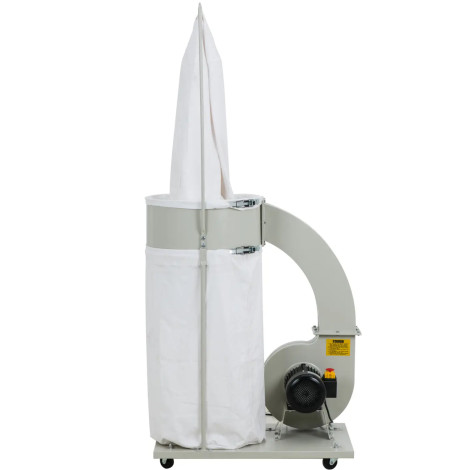

Cooler for the Wiesenfield Pellet It will allow you to cool the granulate to continue to process it or store it. With a capacity of 250 - 300 kg / h, even large amounts do not constitute a problem and can be made in a short time to 5Deg C above room temperature. In addition, the radiator separates the pellets from dust and residue with a diameter less than 4 mm. In this way, a hardened, cool and clean pellet can be obtained, which is ideal for further processing. The pellet cooler consists of two teams. The cooling unit is equipped with a unique sliding valve and an effective emptying module that provides a liquid processing process. Perforated steel drum rotates at 1400 rpm in a solid, reducing steel housing noise. This reduces the temperature of the pellet in the radiator in a minute. Dust and other residues are directed through the extraction to the second device assembly where they are collected. This allows not only to obtain a clean pellet, but also to re-use the residues collected. Both teams are connected to two flexible hoses. For safe operation, the pellet cooler is equipped with overheating protection and an emergency switch.
Product features:

• - the pellet cooler reduces the temperature to 300 kg / h granules in a sieve drum reaching 1400 rpm,
• - the radiator will allow for 5DEG C above room temperature within 1 minute on the cycle,
• - the device reliably separates dust and fine particles from finished granules,
• - a unique sliding valve and effective emptying module ensure a liquid processing process,
• - Closed steel radiator housing reduces noise and overheating protection and emergency switch ensure safety.

Technical parameters:

• - catalog number - 10280607
• - article - New
• - Model - -Knows PC-100
• - frequency [Hz] - 50
• - Power type - Network
• - Material - Carbon steel
• - Color - Gray
• - Tension [V] - 380 - 400
• - IP protection degree - Ip55
• - Cooling time [min] - 1
• - plug - 5-pin
• - Cooling performance [W] - 1100
• - capacity - 250 - 300 kg / h
• - engine speed [obr./min] - 1400
• - Screen size [mm] - 4
• - Cooling efficiency - Room temperature + 5Deg C
• - Insulation class - F
• - Protection class - And
• - Permissible humidity of the measured surface [%] - 2 - 3
• - Device work cycle - S1 (continuous work)
• - Power cord - 3 m
• - suction engine power - 1500 W
• - Emergency switch - So
• - overload protection - So
• - Dimensions (DXSXW) - 174 x 208 x 195 cm
• - weight - 206.5 kg
• - Dimensions of shipment (DXSXW) - 130.5 x 276.5 x 166 cm
• - shipping weight - 250.5 kg

Included:

• - Pellet cooler

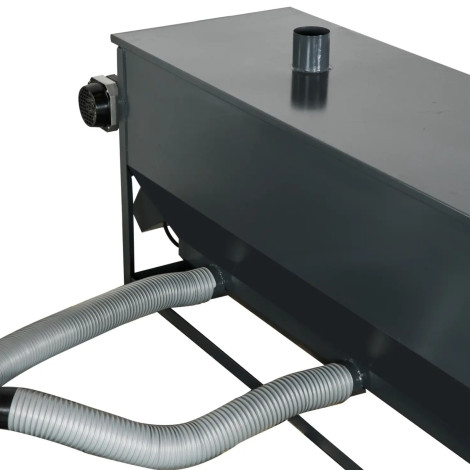

• - 2 Connection hoses
